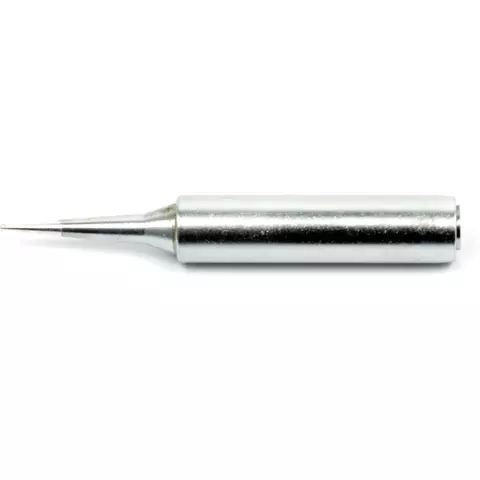

Soldering Iron Tip GOOT RX-60RT-SB

id: 10589
Made in Japan
0.03 kg
Availability in stock: HK
Long-life conical soldering iron replacement tip for precision component soldering. It is compatible with GOOT PX-501(AS)/601(AS), RX-701(AS)/711(AS), CXR-31/41.
USD 5.76
Add to cart
USD 5.76
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Long-life M type soldering iron replacement tip allows precision component soldering. The GOOT RX-60RT-SB soldering tip is compatible with:

Standard Type Soldering Iron Tip Round Solder-Plated Type Soldering Iron Tip
Standard type soldering iron replacement tip:
B, SB, 1C, 2C, 3C, 4C,
1.2D, 2.4D, 3.2D, 5L, LB.
Round solder-plated type
soldering iron replacement tip:
1CR, 2CR, 3CR, 4CR.

Tip Structure

This soldering iron replacement tip has a copper base. Inside of the tip there is an antistick stainless steel corral. This iron tip has a laser print for identification.

GOOT RX-60RT-SB Soldering Iron Replacement Tip Temperature Stability

The characteristic of soldering iron tip temperature recovery

The characteristic of soldering iron tip temperature recovery

The characteristic above was obtained by melting a solder consecutively on 5 × 5 mm PCB land size and simultaneously measuring tip temperature with a thermocouple fit on a tip.

While replacing the standard soldering tip, temperature indication inaccuracy may occur because of tip shape or weight differences. In this case, it is necessary to calibrate the soldering iron.

Estimated indication accuracy after replacement of a standard soldering tip:

Tip type B SB 1C 2C 3C 4C 1.6D 2.4D 3.2D 5K LB
Indication accuracy, Cº 0 -20 -5 -10 -15 0 0 -5 -5 0 -20

Replacement Procedure

  1. Unscrew a barrel nut.
  2. Take off a heater collar.
  3. Replace a soldering tip.

GOOT RX-60RT-SB Soldering Iron Replacement Tip

Stainless steel collar inside of the tip can stick to a heater. When replacing a tip, be sure to take it off from a heater. To prevent an iron tip and a heating element from sticking to each other, and from damage when replacing a tip, regularly take off and on an iron tip.

Useful Information

  • The iron tip may work less if you use a lead solder than when you use lead free solder.
  • Do not clean the iron tip with a cleaning pad or a rasp-file.
  • Soldering iron tip thermal conductivity worsens when oxides stick to it. To clean a tip use moist cellulose sponge. If it doesn't help, use a GOOT BS-2 Tip Refresher.
Specifications
Soldering Iron Tip is compatible with the following models of Soldering Stations
  • Goot PX-501
  • Goot RX-701AS
  • Goot PX-501AS
  • Goot RX-711AS
  • Goot PX-601
  • AOYUE 463 Tesla
  • AOYUE Int 3210
  • AOYUE 463+ Tesla
  • AOYUE 936
  • AOYUE 469
  • AOYUE 937
  • AOYUE 937+
  • AOYUE 936
  • Lukey 936+
  • Lukey 936A
  • Pro'sKit SS-206B
  • Pro'sKit SS-207B
Soldering Iron Tip is compatible with the following models of Soldering Irons
  • Goot CXR-31/22
Soldering Iron Tip is compatible with the following models of Hot Air Soldering Stations
  • Accta 301
  • Accta 301A
  • AOYUE 738
  • AOYUE 906
  • AOYUE 908+
  • AOYUE 768
  • AOYUE 909
  • AOYUE 768
  • AOYUE 899A+
  • AOYUE 968
  • AOYUE 968
  • AOYUE 906C
  • AOYUE 768
  • AOYUE 909
  • AOYUE 768+
  • AOYUE 768+
  • AOYUE 899A+
  • AOYUE 908+
  • AOYUE Int968A+
  • AOYUE Int968A+
  • Lukey 702
  • Lukey 852D+FAN
  • Lukey 868
  • Lukey 852D+
  • Lukey 898
  • Lukey 852D-300-301
  • Lukey 853D
  • Lukey 852D+
  • Lukey 853D
  • Pro'sKit SS-989B
  • Pro'sKit SS-989A
Form
  • conical
