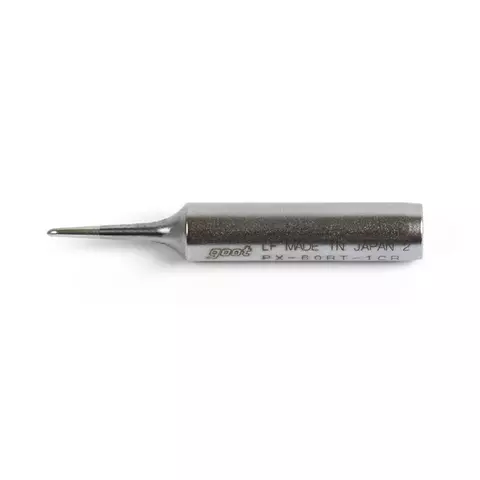

Soldering Iron Tip Goot PX-60RT-1CR

id: 818817
Made in Japan
0.03 kg
Soldering iron tip with tin plating (one-side cut 15 mm, 45°) for precision component soldering. It is compatible with GOOT PX-501(AS)/601(AS), RX-701(AS)/711(AS), CXR-31/41.
USD 7.20
Notify
when in stock
USD 7.20
Notify
when in stock
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Goot PX-60RT-1CR Soldering Iron Tip is a long-life replacement soldering iron tip with tin plating (one-side cut 15 mm, 45°) for precision component soldering. Goot PX-60RT-1CR tip is compatible with a range of GOOT soldering stations and irons.

Features

  • One-side cut; 45°.
  • Diameter: 1 mm, working length 15 mm.
  • This soldering iron replacement tip has a copper base and antistick stainless steel collar.
  • The working area is tin-plated.
  • This iron tip has a laser print for identification.

Compatibility

Long-life soldering iron tip is compatible with:

Tip Replacement

  1. Unscrew the barrel nut.
  2. Take off the heater collar.
  3. Replace the soldering tip.

Stainless steel collar inside the tip can stick to the heater. When replacing a tip, be sure to take it off from the heater. To prevent an iron tip and a heating element from sticking to each other and from damage when replacing a tip, regularly take it off and put it back on.

Useful Information

If you are going to buy GOOT PX-60RT-1CR Soldering Iron Tip, you should know the fillowing:

  • The iron tip may work less if you use a lead solder, than when you use lead free solder.
  • Do not clean the iron tip with a cleaning pad or a rasp-file.
  • Soldering iron tip thermal conductivity worsens when oxides stick to it.
  • To clean a tip, use a moist cellulose GOOT ST-70/75SP tip cleaner sponge.
Specifications
Soldering Iron Tip is compatible with the following models of Soldering Stations
  • Goot PX-501
  • Goot RX-701AS
  • Goot PX-501AS
  • Goot RX-711AS
  • Goot PX-601
  • AOYUE 463 Tesla
  • AOYUE Int 3210
  • AOYUE 463+ Tesla
  • AOYUE 936
  • AOYUE 469
  • AOYUE 937
  • AOYUE 937+
  • AOYUE 936
  • Lukey 936+
  • Lukey 936A
  • Pro'sKit SS-206B
  • Pro'sKit SS-207B
Soldering Iron Tip is compatible with the following models of Soldering Irons
  • Goot CXR-31/22
Soldering Iron Tip is compatible with the following models of Hot Air Soldering Stations
  • Accta 301
  • Accta 301A
  • AOYUE 738
  • AOYUE 906
  • AOYUE 908+
  • AOYUE 768
  • AOYUE 909
  • AOYUE 768
  • AOYUE 899A+
  • AOYUE 968
  • AOYUE 968
  • AOYUE 906C
  • AOYUE 768
  • AOYUE 909
  • AOYUE 768+
  • AOYUE 768+
  • AOYUE 899A+
  • AOYUE 908+
  • AOYUE Int968A+
  • AOYUE Int968A+
  • Lukey 702
  • Lukey 852D+FAN
  • Lukey 868
  • Lukey 852D+
  • Lukey 898
  • Lukey 852D-300-301
  • Lukey 853D
  • Lukey 852D+
  • Lukey 853D
  • Pro'sKit SS-989B
  • Pro'sKit SS-989A
Form
  • single-sided cut
Type
  • tin
