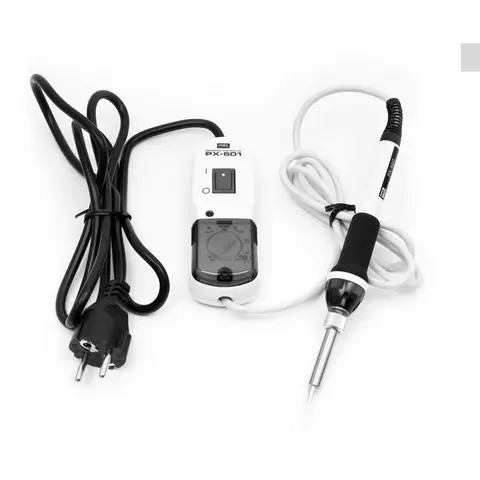

Mini-Soldering Station Goot PX-601

id: 10588
Mini-Soldering Station Goot PX-601
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 75.00
Notify
when in stock
Overview
Made in Japan
0.65 kg 220 V Warranty: 12 months
High performance model that offers accurate temperature control and easy operation with newly designed ergonomic grip cover.
USD 75.00
Notify
when in stock
Add to wishlist
Compare
Compare
USD 75.00
Notify
when in stock
Impossible to estimate the shipping cost
Description

GOOT PX-601 - mini-soldering station is a high performance model that offers accurate temperature control and easy operation. Made in Japan.

Features

  • Reaches preset temperature extremely fast due to the Quick Start circuit.
  • Optional: Replacement Tip GOOT PX-60RT-SB.
  • Newly designed ergonomic grip cover.
  • Temperature setting range : 250—450°C.

Technical Specifications

Voltage 220 V AC, 50/60 Hz
Power consumption 80-85 W
Soldering unit voltage 220 V AC / 80 W
Temperature setting range 250—450°C
Temperature control system Sensor feedback (ON-OFF control)
Insulation resistance (500 V DC)  Over 100 MOm
Ripple temperature without load ± 3° C
Leak voltage Less than 0.1 mV
Ground resistance Less than 0.1 Om
Mechanical
Control unit to soldering unit cord length 1.2 m
Power cord length 1.5 m (3 core cable) ground plug
Dimensions Soldering unit 195 mm (w/o cord bushing)
Control Unit 130(L)x 48(W)x 31(H) mm
Weight Soldering unit 41 g (w/o cord)
Control Unit 75 g (w/o cord)

Compatible Soldering Tips
