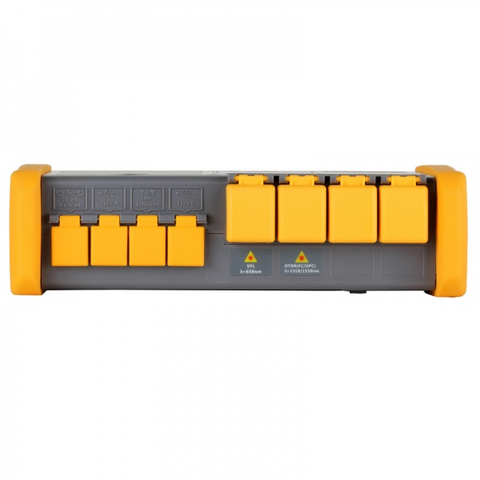

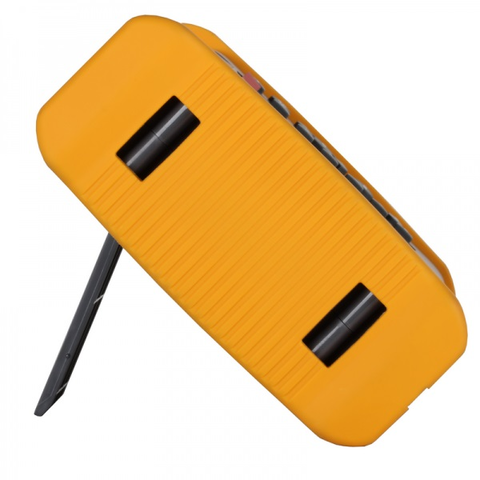

Optical Time-Domain Reflectometer Grandway FHO5000-D26
id: 865742
Overview
7.5 kg 110, 220 V
Availability in stock:
HK
Warranty: 12 months Singlemode optical time-domain reflectometer. Wavelength: 1310/1550 nm. Dynamic range: 26/24 dB. Read more
USD 850.00
USD 699.00
Description
Grandway FHO5000-D26 is a singlemode optical time-domain reflectometer with 1310/1550 nm wavelength and 26/24 dB dynamic range.
FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, lowreflection LCD and more than 12 hours working period make it perfect in field testing.
Ordering Information
If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.
Features
- Integrated design, smart and rugged
- IP65 protection level, outdoor enhanced
- 7-inch anti-reflection LCD screen
- Support multi-language display and input
Applications
- FTTX PON network testing
- CATV network testing
- Access network testing
- LAN network testing
- Metro network testing
- Lab and Factory testing
- Live fiber troubleshooting
Technical Specifications
M21 | MD21 | MD22 | D26 | D32 | D35 | D40 | D43 | T40F | T43F | TP35 | |
---|---|---|---|---|---|---|---|---|---|---|---|
Wavelength | 850 / 1300 nm | 850 / 1300 nm 1310 / 1550 nm |
1310 / 1550 nm | 1310 / 1550 / 1625 nm | 1310 / 1490 / 1550 nm | ||||||
Dynamic range | 19/21 dB | 19/21/35/33 dB | 19/21/40/38 dB | 26/24 dB | 32/30 dB | 35/33 dB | 40/38 dB | 43/41 dB | 40/38/38 dB | 43/41/41 dB | 35/33/33 dB |
Attenuation Dead Zone (ADZ) |
8 m | 8 m / 11 m | 8 m | 11 m | 14 m | 11 m | 14 m | 8 m | |||
Event Dead Zone (EDZ) | 1.5 m | 1.5 m / 1.75 m | 1.5 m | 1.75 m | 2 m | 1.75 m | 2 m | 1.5 m | |||
Pulse Width | 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs | ||||||||||
Distance Range | 100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km | ||||||||||
Sampling | Maximum 128,000 points | ||||||||||
Linearity | ≤0.05 dB/dB | ||||||||||
Distance Resolution | 0.01 m | ||||||||||
Distance Accuracy | ±(1 m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty) |
General Characteristics | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|
Display | 7-inch TFT-LCD with LED backlight (touch screen function is optional) | ||||||||||
Interface | 1×RJ45 port, 3×USB port(USB2.0, Type A USB×2, Type B USB×1) | ||||||||||
Power Supply | 10 V (dc), 100 V (ac) to 240 V (ac), 50~60 Hz | ||||||||||
Battery | 7.4 V (dc)/4.4 Ah lithium battery | ||||||||||
Operating Time | 12 hours | ||||||||||
Charging time | < 4 hours | ||||||||||
Data Storage | Internal memory: 4 GB (about 40,000 groups of curves) | ||||||||||
Languages | English, Simplified Chinese, Traditional Chinese, French, Korean, Russian, Spanish and Portuguese | ||||||||||
Operating Temperature and Humidity | -10℃~+50℃, ≤95% (non-condensation) | ||||||||||
Storage Temperature and Humidity | -20℃~+75℃, ≤95% (non-condensation) | ||||||||||
Dimensions | 253 × 168 × 73.6 mm | ||||||||||
Weight | 1.5 kg (battery included) |
Video
Package Contents
Standard Accessories
- Grandway FHO5000 OTDR main unit — 1 pc.
- Power adapter — 1 pc.
- Lithium battery — 1 pc.
- FC adapter — 1 pc.
- USB cord — 1 pc.
- User guide — 1 pc.
- CD — 1 pc.
- Carrying case — 1 pc.
Optional Accessories
- SC/UPC adapter
- ST/UPC adapter
- LC/UPC adapter
- Bare fiber adapter
Specifications
Dynamic range |
|
Wave length |
|
Fiber type |
|
