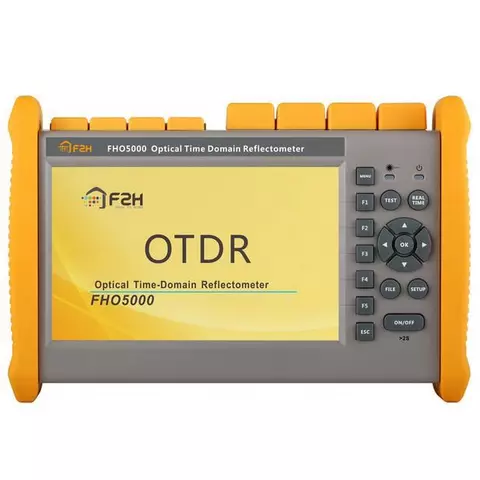

Optical Time-Domain Reflectometer Grandway FHO5000-D43

id: 865746
Optical Time-Domain Reflectometer Grandway FHO5000-D43
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 2700.00

Overview

7.5 kg 110, 220 V Warranty: 12 months
Singlemode optical time-domain reflectometer. Wavelength: 1310/1550 nm. Dynamic range: 43/41 dB. Read more
USD 2700.00
USD 2700.00
Impossible to estimate the shipping cost

Description

Grandway FHO5000-D43 is a singlemode optical time-domain reflectometer with 1310/1550 nm wavelength and 43/41 dB dynamic range.

FHO5000 series OTDR is specially designed for tough outdoor jobs. IP65 protection level, lightweight, easy operation, lowreflection LCD and more than 12 hours working period make it perfect in field testing.

Ordering Information

If you want to buy additional options for your OTDR, please choose them from the list below and contact our sales manager.

Ordering Information

Features

  • Integrated design, smart and rugged
  • IP65 protection level, outdoor enhanced
  • 7-inch anti-reflection LCD screen
  • Support multi-language display and input

Applications

  • FTTX PON network testing
  • CATV network testing
  • Access network testing
  • LAN network testing
  • Metro network testing
  • Lab and Factory testing
  • Live fiber troubleshooting

Technical Specifications

  M21 MD21 MD22 D26 D32 D35 D40 D43 T40F T43F TP35
Wavelength 850 / 1300 nm 850 / 1300 nm
1310 / 1550 nm
1310 / 1550 nm 1310 / 1550 / 1625 nm 1310 / 1490 / 1550 nm
Dynamic range 19/21 dB 19/21/35/33 dB 19/21/40/38 dB 26/24 dB 32/30 dB 35/33 dB 40/38 dB 43/41 dB 40/38/38 dB 43/41/41 dB 35/33/33 dB
Attenuation
Dead Zone (ADZ)
8 m 8 m / 11 m 8 m 11 m 14 m 11 m 14 m 8 m
Event Dead Zone (EDZ) 1.5 m 1.5 m / 1.75 m 1.5 m 1.75 m 2 m 1.75 m 2 m 1.5 m
Pulse Width 3 ns, 5 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 μs, 2 μs, 5 μs, 10 μs, 20 μs
Distance Range 100 m, 500 m, 2 km, 5 km, 10 km, 20 km, 40 km, 80 km, 120 km, 160 km, 240 km
Sampling Maximum 128,000 points
Linearity ≤0.05 dB/dB
Distance Resolution 0.01 m
Distance Accuracy ±(1 m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
General Characteristics
Display 7-inch TFT-LCD with LED backlight (touch screen function is optional)
Interface 1×RJ45 port, 3×USB port(USB2.0, Type A USB×2, Type B USB×1)
Power Supply 10 V (dc), 100 V (ac) to 240 V (ac), 50~60 Hz
Battery 7.4 V (dc)/4.4 Ah lithium battery
Operating Time 12 hours
Charging time < 4 hours
Data Storage Internal memory: 4 GB (about 40,000 groups of curves)
Languages English, Simplified Chinese, Traditional Chinese, French, Korean, Russian, Spanish and Portuguese
Operating Temperature and Humidity -10℃~+50℃, ≤95% (non-condensation)
Storage Temperature and Humidity -20℃~+75℃, ≤95% (non-condensation)
Dimensions 253 × 168 × 73.6 mm
Weight 1.5 kg (battery included)

Video

Youtube video

Package Contents

Standard Accessories

  • Grandway FHO5000 OTDR main unit — 1 pc.
  • Power adapter — 1 pc.
  • Lithium battery — 1 pc.
  • FC adapter — 1 pc.
  • USB cord — 1 pc.
  • User guide — 1 pc.
  • CD — 1 pc.
  • Carrying case — 1 pc.

Optional Accessories

  • SC/UPC adapter
  • ST/UPC adapter
  • LC/UPC adapter
  • Bare fiber adapter

Specifications

Dynamic range
  • 43 dB
  • 41 dB
Wave length
  • 1310 nm
  • 1550 nm
Fiber type
  • singlemode

Video

Youtube video
