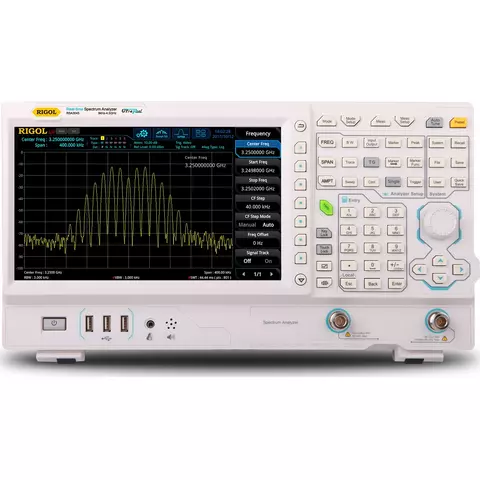

Real-Time Spectrum Analyzer RIGOL RSA3030

id: 890204
8 kg Warranty: 36 month (s)
3 GHz spectrum analyzer with UltraReal technology that combines General-Purpose Spectrum Analyzer (GPSA) and Real-Time Spectrum Analyzer (RTSA).
USD 3999.00
Contact
sales team
USD 3999.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

Rigol RSA3030 Real-Time Spectrum Analyzer RIGOL RSA3030 is a compact and light weight spectrum analyzer with premium performance standard spectrum analysis capabilities combined with a Real-Time Spectrum Analyzer which makes it possible to never miss any signal that is longer than 7.45 µs in duration. Engineers integrating WiFi, Bluetooth and other modern RF technologies are confronted with complex challenges like frequency hopping signals, channel conflict, and spectrum interference.

Features

  • UltraReal technology.
  • Modes: General-Purpose Spectrum Analyzer (GPSA) and Real-Time Spectrum Analyzer (RTSA).
  • Up to 3 GHz Frequency Range.
  • Various measurement functions.
  • Frequency-Mask-Trigger, IF-Power-Level-Trigger and external Trigger.
  • 7 Real-Time visualization modes.
  • 10.1” capacitive touchscreen display.
  • USB, LAN, HDMI interfaces.

Video

Youtube video

Technical Specifications

Characteristics Parameters   Values
All Measurement Modes
Frequency Frequency Range 9 kHz to 3.0 GHz
Internal Reference Frequency Reference Frequency 10 MHz
Initial Calibration Accuracy Standard <1 ppm
Option OCXO-C08 <0.1 ppm
Temperature Stability (0~50 °C) Standard
<0.5 ppm
Option OCXO-C08 <0.005 ppm
Aging Rate Standard <1 ppm/year
Option OCXO-C08 <0.03 ppm/year
GPSA Mode
Frequency Marker Frequency Resolution span/(number of sweep points - 1)
Uncertainty
±(marker frequency readout × reference frequency accuracy + 1% × span + 10% × resolution bandwidth + marker frequency resolution)
Frequency Counter Resolution
1 Hz
Uncertainty
±(marker frequency readout × reference frequency accuracy + counter resolution)
Frequency Span Range 0 Hz, 100 Hz to maximum frequency (Standard)
0 Hz, 10 Hz to maximum frequency (Option RSA3000-BW1)
Resolution
2 Hz
Uncertainty
±span/(number of sweep points - 1)
SSB Phase Noise (20℃ to 30℃,fc = 500 MHz) 1 kHz <-90 dBc/Hz (typical)
10 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
100 kHz <-100 dBc/Hz, <-102 dBc/Hz (typical)
1 MHz <-110 dBc/Hz, <-112 dBc/Hz (typical)
Bandwidth Resolution Bandwidth (-3 dB) 10 Hz to 3 MHz, in 1-3-10 sequence (Standard)
1 Hz to 10 MHz, in 1-3-10 sequence (Option RSA3000-BW1)
RBW Accuracy <5%
Resolution Filter Shape Factor (60 dB: 3 dB) <5:1
Video Bandwidth (-3 dB) 1 Hz to 10 MHz, in 1-3-10 sequence
Resolution Bandwidth (-6 dB) (Option RSA3000- EMC) 200 Hz, 9 kHz, 120 kHz, 1 MHz
Amplitude Measurement Range (fc ≥ 10 MHz) Range DANL to +30 dBm
Maximum Safe Input Level DC Voltage 50 V
CW RF Power +30 dBm, attenuation ≥ 40 dB, preamp off.
-10 dBm, attenuation = 20 dB, preamp on.
Maximum Damage Level CW RF Power +33 dBm (2 W)
Displayed Average Noise Level (DANL)
(attenuation = 0 dB, sample detector, trace averages ≥ 50, tracking generator off, normalized to 1 Hz, 20℃ to 30℃, input impedance = 50 Ω)
Preamp off
9 kHz to 100 kHz <-120 dBm (typical)
100 kHz to 20 MHz <-135 dBm, <-140 dBm (typical)
20 MHz to 2.7 GHz <-138 dBm, <-141 dBm (typical)
2.7 GHz to 3.0 GHz <-136 dBm, <-141 dBm (typical)
Preamp on
100 kHz to 20 MHz <-152 dBm, <-160 dBm (typical)
20 MHz to 2.7 GHz <-158 dBm, <-161 dBm (typical)
2.7 GHz to 3.0 GHz <-156 dBm, <-161 dBm (typical)
Frequency Response Preamp off (attenuation = 10 dB, relative to 50 MHz, 20℃ to 30℃)
100 kHz to 3.0 GHz <0.7 dB, <0.5 dB (typical)
Preamp on (attenuation = 0 dB, relative to 50 MHz, 20℃ to 30℃)
100 kHz to 3.0 GHz <1.0 dB, <0.5 dB (typical)
Level Display Logarithmic Scale 1 dB to 200 dB
Linear Scale 0 to reference level
Number of Display Points 801
Number of Traces 6
Trace Detector normal, pos-peak, neg-peak, sample, RMS average, voltage average, and quasi-peak (Option RSA3000-EMC)
Trace Function clear write, max hold, min hold, average, view, blank
Scale Unit dBm, dBmV, dBμV, nV, μV, mV, V, nW, μW, mW, W
Input Attenuation Setting Range 0 dB to 50 dB, in 1 dB step
Switching Uncertainty (fc = 50 MHz, relative to 10 dB, preamp off, 20℃ to 30℃) <0.3 dB
fc = 50 MHz, peak detector, preamp off, attenuation = 10 dB, input signal level = -10 dBm, 20℃ to 30℃
<0.3 dB
Reference Level Logarithmic Scale -170 dBm to +30 dBm, in 0.01 dB step
Linear Scale 707 pV to 7.07 V, 0.11% (0.01 dB) resolution
Level Uncertainty

1.0 dB
RBW Switching Uncertainty 1 Hz to 1 MHz <0.1 dB
3 MHz, 10 MHz <0.3 dB
Preamp (Option RSA3000-PA) Frequency Range 100 kHz to 3.0 GHz
Gain 20 dB (nominal)
VSWR (attenuation ≥10 dB, preamp off) 300 kHz to 3.0 GHz <1.6 (nominal)

Second Harmonic Intercept (SHI) fc ≥ 50 MHz, input signal level = -20 dBm, attenuation = 0 dB, preamp off.
SHI : +45 dBm
Third-order Intercept (TOI) fc ≥ 50 MHz, two -20 dBm tones at input mixer spaced by 200 kHz, attenuation = 0 dB, preamp off.
TOI: +10 dBm, +15 dBm (typical)
1 dB Gain Compression (P1dB) fc ≥ 50 MHz, attenuation = 0 dB, preamp off
0 dBm (norminal)
Residual Response input terminated with a 50 Ω load, attenuation = 0 dB, 20℃ to 30℃
<-90 dBm, <-100 dBm (typical)
Sweep Sweep Time zero span 1 μs to 6,000 s
span ≥ 10 Hz 1 ms to 4,000 s
Sweep Time Uncertainty zero span (sweep time > 1 ms) 5% (nominal)
span ≥ 10 Hz, RBW ≥ 1 kHz 5% (nominal)
Sweep Mode
continue, single
Trigger Trigger Source
free run, external 1, external 2, video
Trigger Delay zero span 0 to 500 ms
span ≥ 10 Hz 0 to 500 ms
RTSA Mode
RTSA main parameters
Real-time Analysis Bandwidth Standard 10 MHz
Option RSA3000-B25 25 MHz
Option RSA5000-B40 40 MHz
Min. Signal Duration for 100% POI at the Full-Scale Accuracy Standard
9.3 μs
Option RSA5000-B25 7.82 μs
Option RSA5000-B40 7.45 μs
Min. Signal Duration for 100% POI at Different RBWs
Span RBW1 RBW2 RBW3 RBW4 RBW5 RBW6
40 GHz 26,9 16,9 11,9 9,32 8,07 7,45
25 MHz 38,9 22,9 14,9 10,9 8,82 7,82
10 MHz 86,8 46,8 26,8 16,8 11,8 9,30
1 MHz 807 407 207 107 56,3 31,3
Trace Detector
pos-peak, neg-peak, sample, average
Number of Traces
6
Window Type
Hanning, Blackman-Harris, Rectangular, Flattop, Kaiser, Gaussian
Resolution Bandwidth (for Kaiser window) provides 6 RBWs for each window, except the Rectangular
Span Min. bandwidth / Max. bandwidth
40 MHz 100 kHz / 3,21 MHz
25 MHz 62,8 kHz / 2,01 MHz
10 MHz 25,1 kHz / 804 kHz
1 MHz 2,51 kHz / 80,4 kHz
100 kHz 251 Hz / 8,04 kHz
Max. Sample Rate
51.2 MSa/s
FFT Rate
146,484/s (norminal)
Number of Markers
8
Amplitude Resolution
0.01 dB
Frequency Point
801
Acquisition Time Max. sample rate
>156.5 μs
Amplitude Amplitude Flatness ±0.5 dB (nominal)
SFDR <-50 dBc/Hz (typical)
Density Probability Range
0 to 100% (with a step of 0.1%)
Min. Span
5 kHz
Persistence Duration
32 ms to 10 s
Spectrogram History Depth
8,192
Dynamic Range Covered by Bitmap Color
200 dB
PVT Min. Acquisition Time
187.9 μs
Max. Acquisition Time
40 s
Trigger Trigger Source
  free run, external 1, external 2, power(time), FMT
FMT Trigger Diagram
density, spectrogram, normal, PVT
Trigger Resolution
0.5 dB (nominal)
Trigger Criteria
enter, leave, inside, outside, enter-leave, leave-enter
Input/Output Front Panel Connector RF Input Connector N-type female
Impedance 50 Ω (nominal)
TG input Connector N-type female
Impedance 50 Ω (nominal)
Internal/External Reference Internal Reference Frequency10 MHz
Output Level +3 dBm to +10 dBm, +7 dBm (typical)
Connector BNC female
Impedance 50 Ω (nominal)
External Reference Frequency10 MHz ± 5 ppm
Input Level 0 dBm to +10 dBm
Connector BNC female
Impedance 50 Ω (nominal)
External Trigger Input/Output External Trigger Input 1 Connector BNC (female)
Impedance ≥1 kΩ (nominal)
5 V TTL level
External Trigger Input 2/Trigger Output ConnectorBNC female
Impedance on trigger input ≥1 kΩ (nominal)
Impedance on trigger output 50 Ω (nominal)
5 V TTL level
IF Output   Frequency430 MHz ± 20 MHz (nominal)
Connector SMB (male)
Impedance 50 Ω (nominal)
Communication Interface USB Host (4 ports) A plug version 2.0
USB Device B plug version 2.0
LAN Connector 100/1000Base, RJ-45
Protocol LXI Core 2011 Device
HDMI Connector A plug
Protocol HDMI 1.4b
General Specifications Display Type capacitive multi-touch screen
Resolution 1024 × 600 pixels
Size 10.1''
Color 24-bit color
Printer Supported
network printer
Mass Memory Internal Storage 512 MB (nominal)
External Storage USB storage device (not supplied)
Power Input Voltage Range, AC 100 V to 240 V (nominal)
AC Frequency 45 Hz to 440 Hz
Power Consumption 55 W (typical), max. 90 W with all options
Size (W x H x D) 410 mm × 224 mm × 135 mm (16.14'' × 8.82'' × 5.32'')
Weight 4.65 kg (10.25 lb)

Package Contents

  • RIGOL RSA3030 Real-Time Spectrum Analyzer — 1 pc.
  • Power cord — 1 pc.
  • Quick Guid — 1 pc.
Specifications
Max. frequency
  • 3 GHz
Additional features
  • with LF preamplifier
