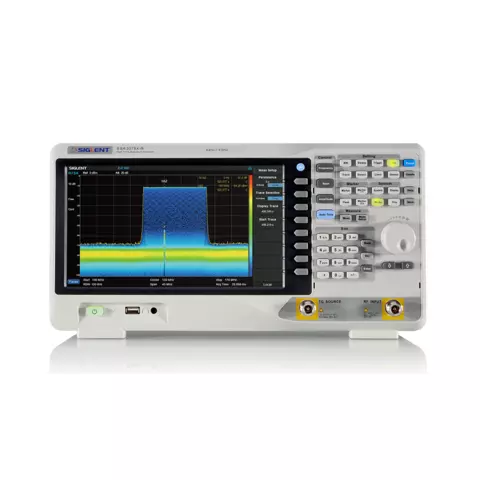

Real-time Spectrum Analyzer SIGLENT SSA3050X-R

id: 894389
Real-time Spectrum Analyzer SIGLENT SSA3050X-R
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 8549.00
Contact
sales team
Overview
New
Rate product
6.44 kg Warranty: 36 months
Powerful spectrum analyzer with a frequency range of 9 kHz~5.0 GHz and a real-time bandwidth of up to 40 MHz. Tracking generator, LF preamplifier. Read more
USD 8549.00
Contact
sales team
Add to wishlist
Compare
Compare
USD 8549.00
Contact
sales team
Impossible to estimate the shipping cost
Description

SIGLENT SSA3050X-R is a powerful real-time spectrum analyzer for complex RF spectrum and signal analysis. The tool can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, spectrum interference, etc.

Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

Features

  • Tracking generator, LF preamplifier.
  • Large multi-touch display (25.7 cm) provides a resolution of 1024 × 600 pixels.
  • Mouse and keyboard supported.
  • Frequency range from 9 kHz up to 5.0 GHz.
  • -165 dBm/Hz displayed average noise level.
  • -98 dBc/Hz.@10 kHz offset phase noise.
  • Level measurement accuracy < 0.7 dB.
  • 100% POI 7.20 μs, dynamic range 60 dB.
  • 1 Hz minimum resolution bandwidth (RBW).
  • Various measurement functions.
  • Multiple measurement modes.
  • Up to 40 MHz real time analysis bandwidth (opt.)
  • Advanced measurement kit (opt.)
  • Reflection measurement kit (opt.)
  • Modulation analysis mode (opt.)
  • EMI measurement mode (opt.)

Technical Specifications

Model SSA3050X-R SSA3075X-R
Frequency Range 9 kHz~5.0 GHz 9 kHz~7.5 GHz
Resolution Bandwidth 1 Hz~3 MHz 1 Hz~3 MHz
Displayed Average Noise Level -165 dBm/Hz -165 dBm/Hz
SSB Phase Noise <-98 dBc/Hz <-98 dBc/Hz
Third-order intercept (TOI) +14 dbm +14 dbm
Amplitude Accuracy < 0.7 dB < 0.7 dB
Tracking Generator 100 kHz - 5.0 GHz 100 kHz - 7.5 GHz
Real-Time Bandwidth 25 MHz, 40 MHz (Option)
SFDR 60 dB
100% POI 7.20 μs
RTSA Measurement Density, Spectrogram, 3D, PvT
Communication Interface LAN, USB Device, USB Host (USB-GPIB)
Remote Control Capability SCPI/Labview/IVI based on USB-TMC/VXI-11/Socket/Telnet
Remote Controller NI-MAX, Web Browser, Easy Spectrum software, File Explorer

Data Sheet

PDF  Download SSA3050X-R Data Sheet.

Package Contents

  • Real-time Spectrum Analyzer SIGLENT SSA3050X-R — 1 pc.
  • Power Cord — 1 pc.
  • USB Cable — 1 pc.
  • Quick Start Guide — 1 pc.
  • Guarantee Card — 1 pc.
Specifications
Additional features
  • with tracking generator
  • with LF preamplifier
Max. frequency
  • 5 GHz
