Overview
7.5 kg 110, 220 V Warranty: 36 months

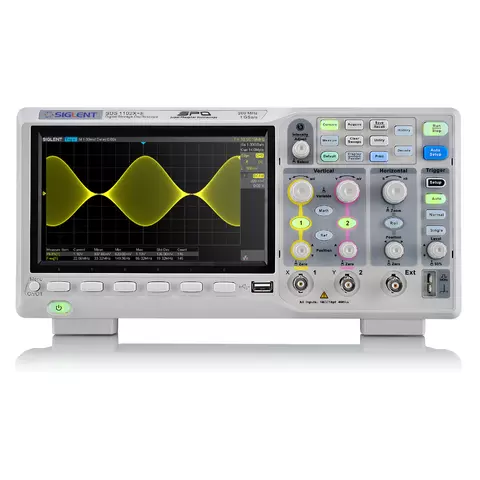

Desktop 2-channel phosphor digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
