Digital Oscilloscope Rigol DS6064

Name: Digital Oscilloscope Rigol DS6064
Brand: RIGOL
SKU: 828824
Price: 6999.00 USD
Availability: OutOfStock

id: 828824

Overview

Description

Specifications

Video

Delivery

Payment

Warranty

Discontinued

Overview

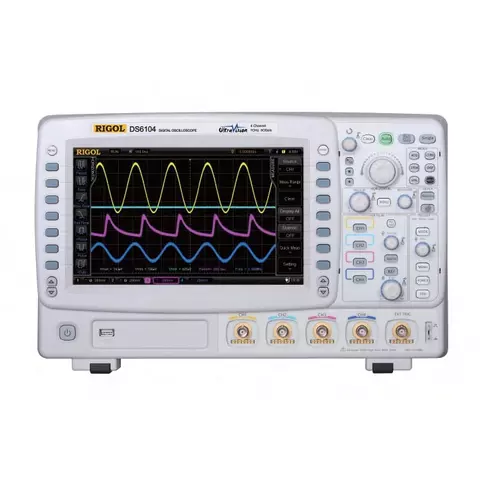

Digital Oscilloscope Rigol DS6064 Preview 1

Video

Digital Oscilloscope Rigol DS6064 Preview 2

Video

Digital Oscilloscope Rigol DS6064 Preview 3

Video

Digital Oscilloscope Rigol DS6064 Preview 4

Video

Brand:

9 kg 110, 220 V Warranty: 36 months

Bandwidth 600 MHz, real-time sample rate up to 5 GSa/s, memory depth 140 million points, four channels, cursor measurements, calculated rise time 600 ps. Read more

Discontinued

Impossible to estimate the shipping cost

Description

Rigol DS6064 is a digital oscilloscope with improved syncronization system and data decoding. Rigol DS6064 has the segmented memory which enables singling out any necessary part of the waveform separately to gather more information and storing up to 180,000 frames for replay and analysis. The UltraVision technology makes possible 256 brightness gradations and real-time filtration system. Rigol DS6064 digital oscilloscope displays to 5 measured items with statistics due to the automatic measurements function for horizontal and vertical parameters. Rigol DS6064 can be used in automated measurement systems since it is LXI-C compliant.

User Manuals

Download Rigol DS6064 digital oscilloscope user manual

Download additional information about Rigol DS6064 digital oscilloscope

Features

600 MHz bandwidth
Sample rate up to 5 GSa/s
140 Mpts memory
Capture rate up to 180,000 waveforms per second

Innovative "UltraVision" technology

Variety of trigger functions and automatic measurements

User defined Mask,Pass/Fail counts, Stop on Fail,Fail Alarm

Advanced user defined math functions

Serial bus trigger and decoder support

"WaveFinder" data search knob
Built-in 1 GB flash memory
USB 2.0 connectivity, host and device ports
Battery power option

Comparative Specifications

Model	DS6062	DS6064	DS6102	DS6104
Bandwidth	600 MHz	600 MHz	1 GHz	1 GHz
Channels	2	4	2	4
Real-time sample rate	5 GSa/s (single channle mode), 2.5 GSa/s (dual channel mode)
Memory depth	140 million points
Vertical resolution	8 bits
Vertical sensitivity	2 mV/div to 10 V/div
Waveform acquisition rate	180,000 waveforms per second
Averaging	After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 or 8192.
Input
Input coupling	DC, AC or GND
Input impedance	(1 MΩ±1%) \|\| (14 pF±3 pF) or 50 MΩ±1.5%
Probe attenuation coefficient	0.001×, 0.01×, 0.1×, 1×, 2×, 5×, 10×, 20×, 50×, 100×, 200×, 500×, 1000×
Maximum input voltage (1 MΩ)	CAT I 300 Vrms, CAT II 100 Vrms, with Rigol RP2200 10:1 probe: CAT II 300 Vrms
Horizontal
Timebase scale	1 ns/div to 50 s/div		500 ps/div to 50 s/div
Timebase accuracy	≤±(15 + 2 × iinstrument age in years) ppm
Number of XYs	2 simultaneously
Vertical
Vertical scale	2 mV/div to 5 V/div (1 MΩ) 2 mV/div to 1 V/div (50 Ω)
Offset range	2 mV/div to 120 mV/div: ± 1.2 V (50 Ω) 125 mV/div to 1 V/div: ± 12 V (50 Ω) 2 mV/div to 225 mV/div: ± 2 V (1 MΩ)
Bandwidth limit	20 MHz or 250 MHz
Low frequency response	≤5 Hz
Calculated rise time	600 ps		400 ps
DC gain accuracy	±2% full scale
DC offset accuracy	200 mV/div to 5 V/div: 0.1 div ± 2 mV ± 0.5 offset value 2 mV/div to 195 mV/div: 0.1 div ± 2 mV ± 1.5 offset value
ESD tolerance	±2 kV
Channel to channel isolation	DC to maximum band width: >40 dB
Trigger
Trigger level range	INT: ±6 div from center screen
Trigger level range	EXT: ±0.8 V
Trigger mode	Auto, Normal, Single
Holdoff range	100 ns to 10 s
High frequency rejection	50 kHz
Low frequency rejection	5 kHz
Trigger types	Edge, Pulse, Slope, Video, Pattern, RS232/UART, I2C, SPI, CAN, USB
Measure
Cursor	Manual mode	voltage deviation between cursors (ΔV) time deviation between cursors (ΔT) reciprocal of ΔT (Hz) (1/ΔT)
	Track mode	voltage and time values of the waveform point
	Auto mode	allow to display cursors during auto measurement
Auto measurement	Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Mean Square Root, Overshoot, Pre-shoot, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay A→B⌈, Delay A→B⌊, Phase A→B⌈, Phase A→B⌊
Number of measurements	display 5 measurements at the same time
Measurement range	screen or cursor
Measurement statistic	Average, Max, Min, Standard Deviation, Number of Measurements
Frequency counter	hardware 6 bits frequency counter
Math operation
Waveform operation	A+B, A-B, A&mult;B, A/B, FFT, Editable Advanced Operation, Logic Operation
FFT window function	Rectangle, Hanning, Blackman, Hamming
FFT display	Split, Full Screen
FFT vertical scale	Linear RMS, dBV RMS
Logic operation	AND, OR, NOT, XOR
Math function	Intg, Diff, Log, Exp, Sqrt, Sine, Cosine, Tangent
Number of buses for decoding	2
Decoding type	parallel (standard), RS232/UART (option), I2C&SPI (option)
Display
Display type	10.1 inches (257 mm) TFT LCD display
Display resolution	800 horizontal × RGB × 480 vertical pixel
Display color	160,000 Color
Persistence time	minimum, 1 s, 2 s, 5 s, 10 s, 20 s, infinite
Display type	dots, vectors
I/O
Standard ports	USB device, two USB host ports, LAN, VGA Output, 10 MHz Input/Output, Aux output ( TrigOut, Quick Edge, PassFail, Calibration, GND)
Printer compatibility	PictBridge
General characteristics
Dimensions, mm	399 × 255.3 × 123.8
Weight, kg	5.345±0.2
