Digital Oscilloscope Rigol DS6102

id: 828825
9 kg 110, 220 V Warranty: 36 month (s)
Bandwidth 1 GHz, real-time sample rate up to 5 GSa/s, memory depth 140 million points, two channels, cursor measurements, calculated rise time 600 ps.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

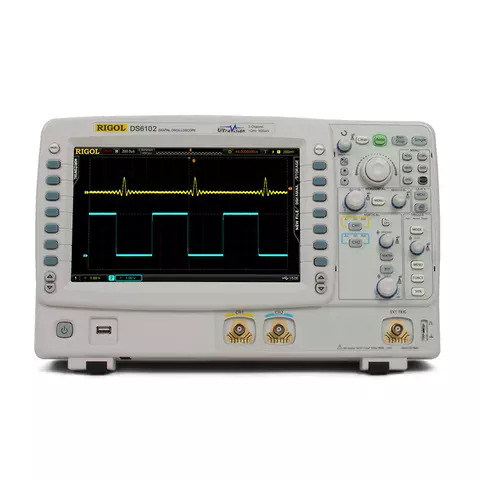

Rigol DS6102 is a digital oscilloscope with improved syncronization system and data decoding. Rigol DS6102 has the segmented memory which enables singling out any necessary part of the waveform separately to gather more information and storing up to 180,000 frames for replay and analysis. The UltraVision technology makes possible 256 brightness gradations and real-time filtration system. Rigol DS6102 digital oscilloscope displays to 5 measured items with statistics due to the automatic measurements function for horizontal and vertical parameters. Rigol DS6102 can be used in automated measurement systems since it is LXI-C compliant.

User Manuals

Download Rigol DS6102 digital oscilloscope user manual

Download additional information about Rigol DS6102 digital oscilloscope

Features

  • 1 GHz bandwidth
  • Sample rate up to 5 GSa/s
  • 140 Mpts memory
  • Capture rate up to 180,000 waveforms per second
  • RIGOL DS6102 Digital Oscilloscope
  • Innovative "UltraVision" technology
  • RIGOL DS6102 Digital Oscilloscope
  • Variety of trigger functions and automatic measurements
  • RIGOL DS6102 Digital Oscilloscope
  • User defined Mask,Pass/Fail counts, Stop on Fail,Fail Alarm
  • RIGOL DS6102 Digital Oscilloscope
  • Advanced user defined math functions
  • RIGOL DS6102 Digital Oscilloscope
  • Serial bus trigger and decoder support
  • RIGOL DS6102 Digital Oscilloscope
  • "WaveFinder" data search knob
  • Built-in 1 GB flash memory
  • USB 2.0 connectivity, host and device ports
  • Battery power option

Comparative Specifications

Model DS6062 DS6064 DS6102 DS6104
Bandwidth 600 MHz 600 MHz 1 GHz 1 GHz
Channels 2 4 2 4
Real-time sample rate 5 GSa/s (single channle mode),
2.5 GSa/s (dual channel mode)
Memory depth 140 million points
Vertical resolution 8 bits
Vertical sensitivity 2 mV/div to 10 V/div
Waveform acquisition rate 180,000 waveforms per second
Averaging After all the channels finish N samples at the same time, N can be 2, 4, 8, 16, 32, 64, 128, 256, 512, 1024, 2048, 4096 or 8192.
Input
Input coupling DC, AC or GND
Input impedance (1 MΩ±1%) || (14 pF±3 pF) or 50 MΩ±1.5%
Probe attenuation coefficient 0.001×, 0.01×, 0.1×, 1×, 2×, 5×, 10×, 20×, 50×, 100×, 200×, 500×, 1000×
Maximum input voltage (1 MΩ)

CAT I 300 Vrms, CAT II 100 Vrms,
with Rigol RP2200 10:1 probe: CAT II 300 Vrms

Horizontal
Timebase scale 1 ns/div to 50 s/div 500 ps/div to 50 s/div
Timebase accuracy ≤±(15 + 2 × iinstrument age in years) ppm
Number of XYs 2 simultaneously
Vertical
Vertical scale 2 mV/div to 5 V/div (1 MΩ)
2 mV/div to 1 V/div (50 Ω)
Offset range 2 mV/div to 120 mV/div: ± 1.2 V (50 Ω)
125 mV/div to 1 V/div: ± 12 V (50 Ω)
2 mV/div to 225 mV/div: ± 2 V (1 MΩ)
Bandwidth limit 20 MHz or 250 MHz
Low frequency response ≤5 Hz
Calculated rise time 600 ps 400 ps
DC gain accuracy ±2% full scale
DC offset accuracy 200 mV/div to 5 V/div: 0.1 div ± 2 mV ± 0.5 offset value
2 mV/div to 195 mV/div: 0.1 div ± 2 mV ± 1.5 offset value
ESD tolerance ±2 kV
Channel to channel isolation DC to maximum band width: >40 dB
Trigger
Trigger level range INT: ±6 div from center screen
EXT: ±0.8 V
Trigger mode Auto, Normal, Single
Holdoff range 100 ns to 10 s
High frequency rejection 50 kHz
Low frequency rejection 5 kHz
Trigger types Edge, Pulse, Slope, Video, Pattern, RS232/UART, I2C, SPI, CAN, USB
Measure
Cursor Manual mode voltage deviation between cursors (ΔV)
time deviation between cursors (ΔT)
reciprocal of ΔT (Hz) (1/ΔT)
Track mode voltage and time values of the waveform point
Auto mode allow to display cursors during auto measurement
Auto measurement Maximum, Minimum, Peak-Peak Value, Top Value, Bottom Value, Amplitude, Average, Mean Square Root, Overshoot, Pre-shoot, Frequency, Period, Rise Time, Fall Time, Positive Pulse Width, Negative Pulse Width, Positive Duty Cycle, Negative Duty Cycle, Delay A→B⌈, Delay A→B⌊, Phase A→B⌈, Phase A→B⌊
Number of measurements display 5 measurements at the same time
Measurement range screen or cursor
Measurement statistic Average, Max, Min, Standard Deviation, Number of Measurements
Frequency counter hardware 6 bits frequency counter
Math operation
Waveform operation A+B, A-B, A&mult;B, A/B, FFT, Editable Advanced Operation, Logic Operation
FFT window function Rectangle, Hanning, Blackman, Hamming
FFT display Split, Full Screen
FFT vertical scale Linear RMS, dBV RMS
Logic operation AND, OR, NOT, XOR
Math function Intg, Diff, Log, Exp, Sqrt, Sine, Cosine, Tangent
Number of buses for decoding 2
Decoding type parallel (standard), RS232/UART (option), I2C&SPI (option)
Display
Display type 10.1 inches (257 mm) TFT LCD display
Display resolution 800 horizontal × RGB × 480 vertical pixel
Display color 160,000 Color
Persistence time minimum, 1 s, 2 s, 5 s, 10 s, 20 s, infinite
Display type dots, vectors
I/O
Standard ports USB device, two USB host ports, LAN, VGA Output, 10 MHz Input/Output, Aux output ( TrigOut, Quick Edge, PassFail, Calibration, GND)
Printer compatibility PictBridge
General characteristics
Dimensions, mm 399 × 255.3 × 123.8
Weight, kg 5.345±0.2

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

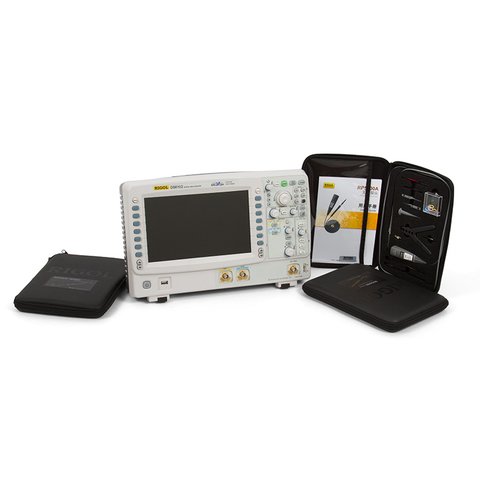

  • Oscilloscope RIGOL DS6102 (1 pc.)
  • Power cord (1 pc.)
  • USB cable (1 pc.)
  • Front panel cover (1 pc.)
  • Passive probes (2 pcs.)

Additional accessories and software
