Description

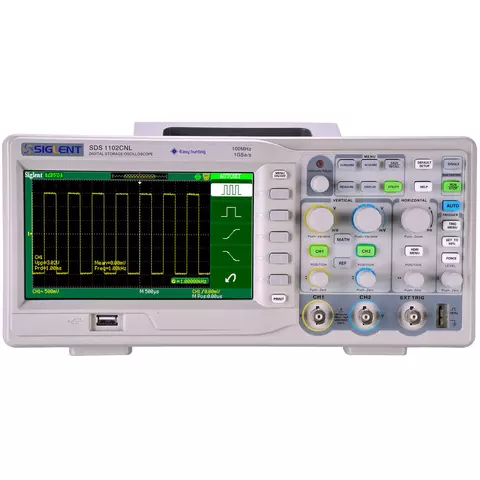

SIGLENT SDS1102CNL Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 100 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1102CNL has a multi-language user interface and online help.
SIGLENT SDS1102CNL Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.
Features
- Bandwidth: 100 MHz.
- 2 channels + 1 external triggering channel.
- Real-time sample rate: 1 GSa/s.
- Equivalent sample rate: 50 GSa/s.
- Memory: 40 Kpts.
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
- 7" TFT color LCD, bright and vivid waveform display.
- Backlit buttons.
- Unique digital filter.
- USB Host, USB Device, RS-232.
- Pass/Fail Output.
- Direct print to PictBridge compatible printers via USB Device interface.
- Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
- Online help.
- Safety standards: EMC: EN61326; LVD: EN61010-1.
- Compact design for saving desktop space.
Technical Specifications
| Model | SDS1072CNL | SDS1102CNL | SDS1202CNL+ |
| Bandwidth | 70 MHz | 100 MHz | 200 MHz |
| Channels | 2 + 1 ext. ch. | ||
| Real time sample rate | 1 GSa/s | 2 GSa/s | |
| Equivalent sampling rate | 50 GSa/s | ||
| Memory depth | 40 kpts | ||
| Rise time | < 5 ns | < 3.5 ns | < 1.7 ns |
| Input impedance | 1 MΩ‖17 pF | 1 MΩ‖14 pF, 50 Ω | |
| Time base range | 5.0 ns/div - 50 s/div | 2.5 ns/div - 50 s/div | |
| Vertical sensitivity | 2 mV - 10 V/div | 2 mV - 5 V/div | |
| Vertical resolution | 8 bit | ||
| Trigger types | Edge, Pulse, Video, Slope, Alternative | ||
| Math Operation | +, -, ×, ÷, FFT | ||
| Max input voltage | ±400 V (DC+AC Pk-Pk), CAT I, CAT II | ||
| Internal storage | 2 groups of reference waveform, 20 groups of settings, 10 groups of waveforms | 2 groups of reference waveform, 20 groups of settings, 20 groups of waveforms | |
| External storage | BMP, CSV, waveforms and setups | ||
| Language | English, French, German, Russian, Spanish, Simplified Chinese, TraditionalChinese, Portuguese, Japanese, Korean, Italian, Arabic | ||
| Interface | USB Host, USB Device, RS-232, Pass/Fail out | ||
| Display | 7" (178 mm) TFT color LCD (480 × 234) | ||
| Power | AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max | ||
Additional Information
Download SIGLENT SDS1102CNL Data Sheet.
Video
We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- SDS1102CNL Digital Oscilloscope — 1 pc.
- Set of probes — 1 pc.
- USB Cable — 1 pc.
- 220 V AC EU power cord (unit is 220 V and 110 V selectable) — 1 pc.
