Digital Oscilloscope SIGLENT SDS1202CNL+

id: 843428
Digital Oscilloscope SIGLENT SDS1202CNL+
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
Rate product
6 kg 110, 220 V Warranty: 36 months
Desktop dual-channel digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 50 GSa/s equivalent sample rate, 18 K memory. Read more
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 870200 6 kg 110, 220
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 887344 6 kg
Digital Oscilloscope RIGOL DS1202Z E
Bestseller
Add to wishlist
ID: 894828
Digital Oscilloscope RIGOL DS1202Z-E
5 (1)
USD 426.66
USD 358.39
Add to wishlist
Add to cart
Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 894828 7.5 kg 110, 220
Description

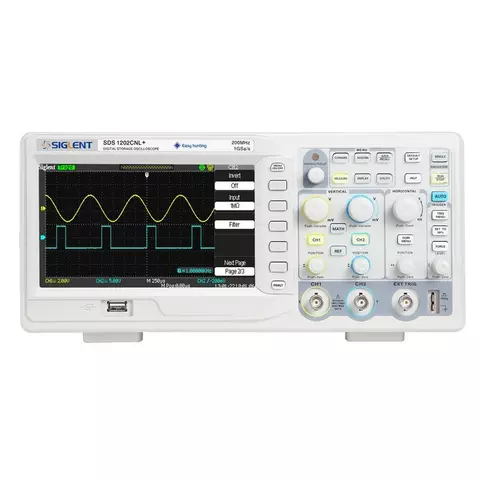

SIGLENT SDS1202CNL+ Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 200 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. SIGLENT SDS1202CNL+ has a multi-language user interface and online help.

SIGLENT SDS1202CNL+ Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.

Features

  • Bandwidth: 200 MHz.
  • 2 channels + 1 external triggering channel.
  • Real-time sample rate: 2 GSa/s.
  • Equivalent sample rate: 50 GSa/s.
  • Memory: 18 Kpts.
  • Vertical sensitivity range: 2 mV/div – 5 V/div.
  • Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
  • 7" TFT color LCD, bright and vivid waveform display.
  • Backlit buttons.
  • Unique digital filter.
  • USB Host, USB Device, RS-232.
  • Pass/Fail Output.
  • Direct print to PictBridge compatible printers via USB Device interface.
  • Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
  • Online help.
  • Safety standards: EMC: EN61326; LVD: EN61010-1.
  • Compact design for saving desktop space.

Technical Specifications

Bandwidth 200 MHz
Channels 2 + 1 ext. ch.
Real time sample rate 2 GSa/s
Equivalent sample rate 50 GSa/s
Memory depth 18 Kpts
Vertical sensitivity range 2 mV/div – 5 V/div
Vertical resolution 8 bits
Rise time ≤1.7 ns
Time base range 2.5 ns/div – 50 s/div
Input impedance 1 MΩ || 14 pF
Cursor measurements Manual, Track, Auto measure
Math Add, Subtract, Multiply, Divide, FFT
Trigger modes Edge, Pulse, Video, Slope, Alternate
Storage Internal: 20 setups, 20 waveforms (storage/recall), 2 reference waveforms
External (USB): BMP, CSV, waveforms and setups
Input coupling DC, AC, GND
General Characteristics
Display 7" (178 mm) TFT color LCD (480 × 234)
Interface USB Host, USB Device, RS-232, P/F output
Power source AC 100 ~ 240 V, 45 ~ 440 Hz, 50 VA Max
Max. input voltage 1 MΩ 17 pF 400 V (DC + PK-PK) CATI, CATII
Weight 2.5 kg
Dimensions 305 × 133 × 154 mm

Additional Information

Download SIGLENT SDS1202CNL Data Sheet.

Video

We introduce the video review of SIGLENT SDS1000 series of oscilloscopes on the example of SIGLENT SDS1102CML Digital Oscilloscope.

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Bandwidth
  • 200 MHz
Type
  • desktop
Sample Rate
  • 2 GS/s
Storage Capacity
  • 18 KB
