Digital Oscilloscope SIGLENT SDS1202CFL
Overview
You may also like
Description

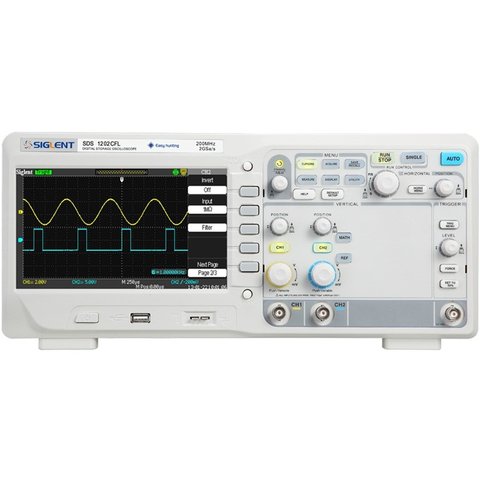

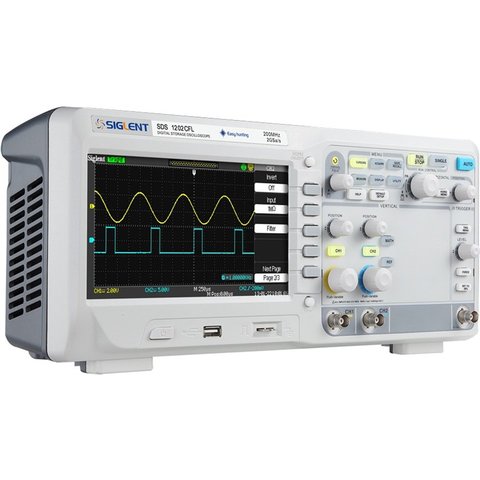

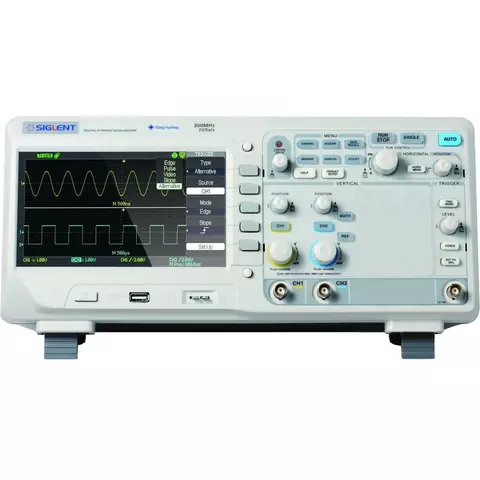

SIGLENT SDS1202CFL Digital Oscilloscope is a compact desktop dual-channel digital oscilloscope with a 200 MHz bandwidth. 7-inch TFT color liquid-crystal display of the oscilloscope ensures bright and vivid waveform representation and backlit buttons ensure user comfort. 24 K memory allows storing up to 20 waveforms and 20 setups. SIGLENT SDS1202CFL has a multi-language user interface and online help.
SIGLENT SDS1202CFL Digital Oscilloscope is a good choice for industrial control and measurements, R&D, electronic circuit design and testing and all other applications involving testing and troubleshooting, as well as education and training.
Features
- Bandwidth: 200 MHz.
- 2 channels + 1 external triggering channel.
- Real-time sample rate: 2 GSa/s. (single channel)
- Equivalent sample rate: 50 GSa/s.
- Memory: 24 K.
- Vertical sensitivity range: 2 mV/div – 5 V/div.
- Versatile trigger modes: Edge, Pulse, Slope, Video and Alternate.
- Unique digital filter and data recorder function.
- 7" TFT color LCD, bright and vivid waveform display.
- USB Host, USB Device, RS-232.
- Pass/Fail Output.
- Multi-language display (12 languages): English, French, Spanish, Portuguese, German, Italian, Russian, Arabic, Japanese, Korean, Simplified Chinese, Traditional Chinese.
- Online help.
- Safety standards: EMC: EN61326; LVD: EN61010-1.
- Compact design for saving desktop space.
Technical Specifications
Bandwidth | 200 MHz | |
Channels | 2 + 1 ext. ch. | |
Real time sample rate | 2 GSa/s (Single channel) 1 GSa/s (Dual channels) |
|
Equivalent sample rate | 50 GSa/s | |
Memory depth | 24 K | |
Vertical sensitivity range | 2 mV/div – 5 V/div | Vertical resolution | 8 bits |
Rise time | < 1.7 ns | |
Time base range | 2,5 ns/div – 50 s/div | |
Input impedance | 1 MΩ || 13 pF, 50 Ω | |
Cursor measurements | Manual, Track, Auto measure | |
Math | Add, Subtract, Multiply, Divide, Invert, FFT | |
Trigger modes | Edge, Pulse, Video, Slope, Alternate | |
Storage | Internal: 20 setups, 20 waveforms (storage/recall), 4 reference waveforms External (USB): BMP, CSV, waveforms and setups |
|

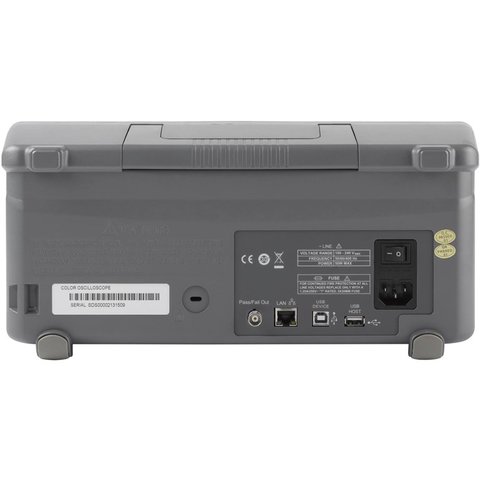

Input coupling | DC, AC, GND | |
General Characteristics | ||
---|---|---|
Display | 7" TFT color LCD (480 × 234) | |
Interface | USB Host, USB Device, RS-232, P/F output | |
Power source | 100 – 240 V AC, 45 Hz – 440 Hz, 50 VA max | |
Max. input voltage | 400 V (Vpp) | |
Weight | 4.5 kg | |
Dimensions | 358 × 156 × 118 mm |
Additional Information
Download SIGLENT SDS1202CFL Data Sheet.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- Digital oscilloscope unit (1 pc.)
- Probe (1:1, 10:1) Problex (1 pc.)
- Power cord (1 pc.)
- USB cable (1 pc.)
