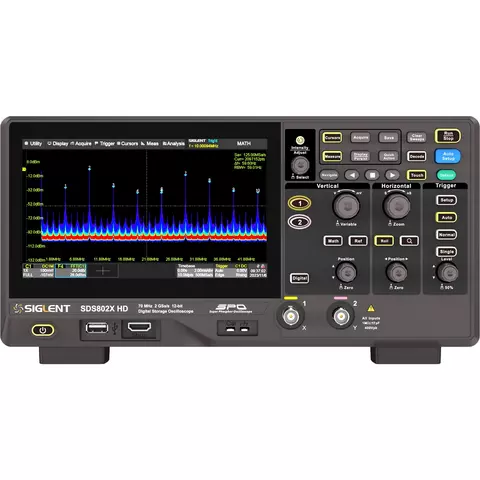

Digital Oscilloscope SIGLENT SDS802X HD
sales team
SIGLENT SDS802X HD is a high-resolution digital storage oscilloscope, featuring 2 GSa/s, 12-bit Analog-Digital Converter, and excellent noise floor performance. It has a bandwidth of 70 MHz and a maximum record length of 50 Mpts, and displays 2 analog channels + 16 digital channels for mixed signal analysis ability (option).
The tool employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS802X HD.
The 7" display capacitive touchscreen supports multitouch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.
Features
- 12-bit High Resolution
- 12-bit Analog-Digital Converters with a sample rate of up to 2 GSa/s
- 2 analog channels, up to 70 MHz bandwidth
- SPO technology
- Waveform capture rate up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Up to 50 Mpts record length
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, with a maximum recorded waveform length of 80,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History, and Ref
- 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, Counter, Bode plot, and Power Analysis
- High-Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels (optional)
- 25 MHz waveform generator (optional)
- 7” TFT-LCD display with 1024 * 600 resolution; Capacitive touchscreen supports multi-touch gestures
- Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports an external mouse and keyboard. Supports NTP
Technical Specifications
| Model | SDS804X HD SDS802X HD |
SDS814X HD SDS812X HD |
SDS824X HD SDS822X HD |
| Analog channels | 4 (4CH Series: SDS804X HD, SDS814X HD, SDS824X HD), 2 (2CH Series: SDS802X HD, SDS812X HD, SDS822X HD) |
||
| Bandwidth | 70 MHz | 100 MHz | 200 MHz |
| Vertical resolution | 12-bit | ||
| Sample rate (Max.) |
One channel mode: 2 GSa/s, Two channel mode: 1 GSa/s, Four channel mode: 500 MSa/s |
||
| Memory depth (Max.) |
One channel mode: 50 Mpts/ch, Two channel mode: 25 Mpts/ch, Four channel mode: 10 Mpts/ch |
One channel mode: 100 Mpts/ch, Two channel mode: 50 Mpts/ch, Four channel mode: 25 Mpts/ch |
|
| Waveform capture rate (Max.) |
Normal mode : 80,000 wfm/s; Sequence mode : 500,000 wfm/s |
Normal mode: 120,000 wfm/s; Sequence mode: 500,000 wfm/s |
|
| Trigger type | Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video, Qualified, Nth edge, Delay, Setup/Hold time, Serial | ||
| Serial trigger and decode (Standard) | I2C, SPI, UART, CAN, LIN | ||
| Measurement | 50+ parameters, statistics, histogram, trend, and track supported | ||
| Math | 4 traces 2 Mpts FFT, Filter, +, -, x, ÷, ∫dt, d/dt, √, Identity, Negation, Absolute, Sign, ex, 10x, ln, lg, Interpolation, MaxHold, MinHold, ERES, Average. Supports formula editor |
||
| Data analysis | Search, Navigate, History, Mask Test, Counter, Bode plot, and Power Analysis | ||
| Digital channel (optional) | 16-channel; maximum sample rate up to 1 GSa/s; record length up to 10 Mpts | ||
| USB AWG module (option) | One channel, 25 MHz, sample rate of 125 MHz, wave length of 16 kpts, isolated output | ||
| I/O | USB 2.0 Host x2, USB 2.0 Device, 10 M / 100 M LAN, Auxiliary output (TRIG OUT, PASS/FAIL), SBUS (SIGLENT MSO) |
||
| Probe (Standard) | Passive probe PB470 for each channel | Passive probe PP510 for each channel | Passive probe PP215 for each channel |
| Display | 7 TFT-LCD with capacitive touch screen (1024×600) | ||
| Input Voltage & Frequency | 100 ~ 240 Vrms 50/60 Hz | ||
| Power consumption | 80 W max., 40 W typical, 4 W typical in standby mode | ||
| Dimensions | Length × Height × Width = 312 mm × 151 mm × 132.6 mm (including knobs and supporting legs) |
||
| Weight | Net Weight 2.6 kg, Gross Weight 3.8 kg | ||
Video
User Manual
Download SIGLENT SDS802X HD User Manual.
Package Contents
- Digital Oscilloscope SIGLENT SDS802X HD — 1 pc.
- USB Cable — 1 pc.
- Quick Start — 1 pc.
- Passive Probe — 1/channel
- Certificate of Calibration — 1 pc.
- Power Cord — 1 pc.
