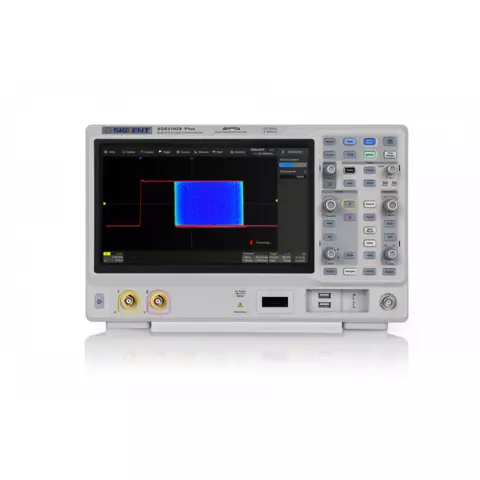

Digital Oscilloscope SIGLENT SDS2102X Plus

SIGLENT SDS2102X Plus is a desktop 2-channel Super Phosphor Oscilloscop with a 100 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.

The Siglent SDS2102X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.

Features

• New generation of SPO (Super Phosphor Oscilloscope) technology.
• Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
• Supports 256-level intensity grading and color temperature display modes.
• DigitaI trigger system.
• Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
• SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
• Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
• History waveform record (History) function for up to 90,000 triggered waveforms (frames).
• Automatic measurement function on 50+ parameters, supports statistics with histogram.
• Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
• Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
• Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
• External mouse and keyboard support.
• Built-in web server supports remote control over the LAN port using a web browser.
• A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).

Technical Specifications

Video

User Manual

  Download SIGLENT SDS2102X Plus user manual.

Datasheet

  Download SIGLENT SDS2102X Plus datasheet.

Package Contents

• Digital Oscilloscope SIGLENT SDS2102X Plus — 1 pc.
• USB Cable — 1 pc.
• Passive Probe — 2 pcs.
• Power Cord — 1 pc.
• User Manual — 1 pc.
