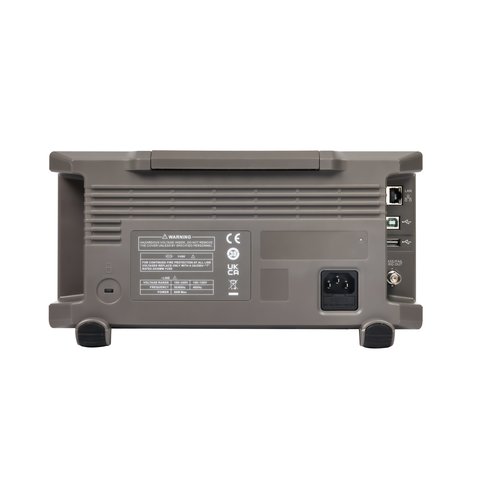

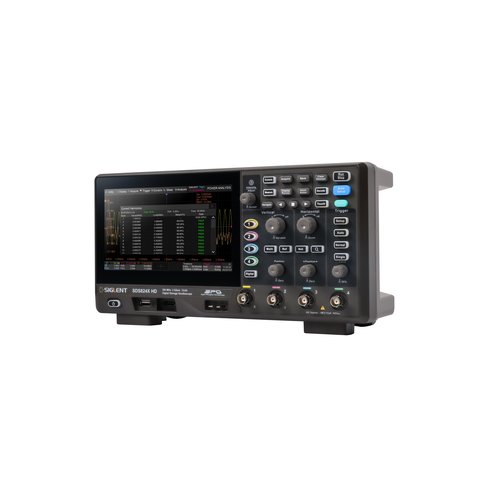

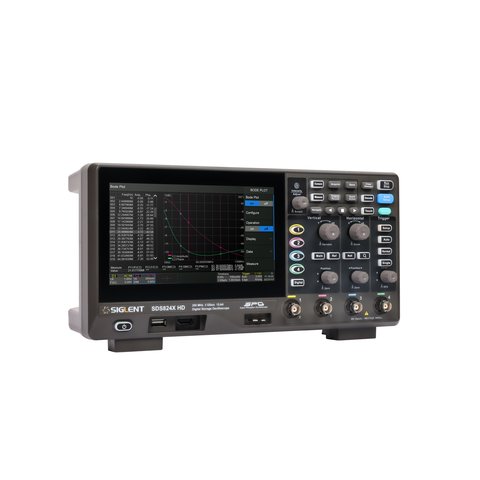

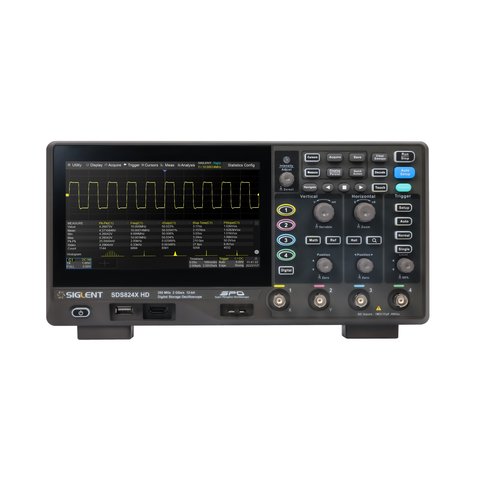

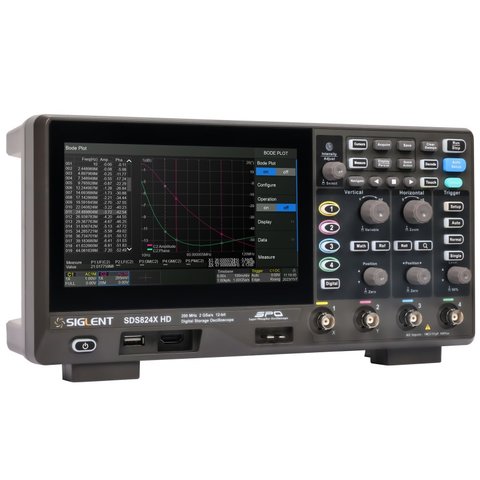

Digital Oscilloscope SIGLENT SDS824X HD

SIGLENT SDS824X HD is a high-resolution digital storage oscilloscope, featuring 2 GSa/s, 12-bit Analog-Digital Converter, and excellent noise floor performance. It has a bandwidth of 200 MHz and a maximum record length of 100 Mpts, and displays 4 analog channels + 16 digital channels for mixed signal analysis ability (option).

The tool employs SIGLENT’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS824X HD.

The 7" display capacitive touchscreen supports multitouch gestures, with the addition of a user-friendly UI design, which can greatly improve operational efficiency. It also supports mouse control and remote web control over LAN.

Features

• 12-bit High Resolution
• 12-bit Analog-Digital Converters with a sample rate of up to 2 GSa/s
• 4 analog channels, up to 200 MHz bandwidth
• SPO technology
  • Waveform capture rate up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode)
  • Supports 256-level intensity grading and color temperature display modes
  • Up to 100 Mpts record length
  • Digital trigger system
• Intelligent trigger: Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video (HDTV supported), Qualified, Nth edge, Delay, Setup/Hold time
• Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN
• Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
• History waveform record (History) function, with a maximum recorded waveform length of 80,000 frames
• Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History, and Ref
• 4 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
• Abundant data analysis functions such as Search, Navigate, Counter, Bode plot, and Power Analysis
• High-Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
• 16 digital channels (optional)
• 25 MHz waveform generator (optional)
• 7” TFT-LCD display with 1024 * 600 resolution; Capacitive touchscreen supports multi-touch gestures
• Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
• Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports an external mouse and keyboard. Supports NTP

Technical Specifications

Video

User Manual

  Download SIGLENT SDS824X HD User Manual.

Package Contents

• Digital Oscilloscope SIGLENT SDS824X HD — 1 pc.
• USB Cable — 1 pc.
• Quick Start — 1 pc.
• Passive Probe — 4 pcs.
• Certificate of Calibration — 1 pc.
• Power Cord — 1 pc.
