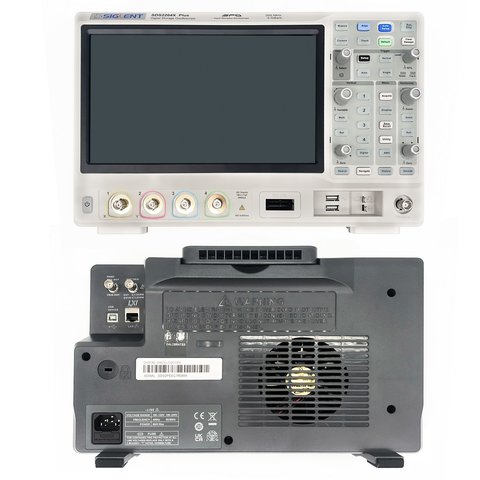

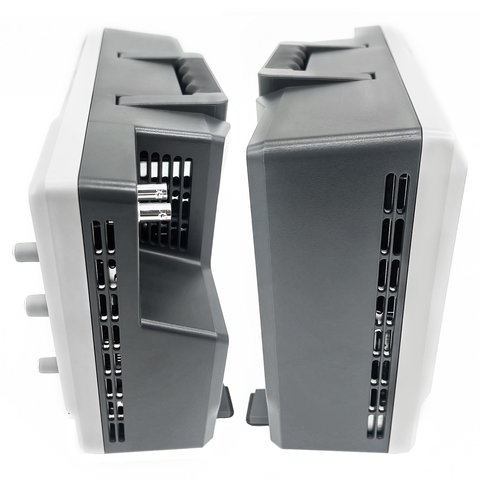

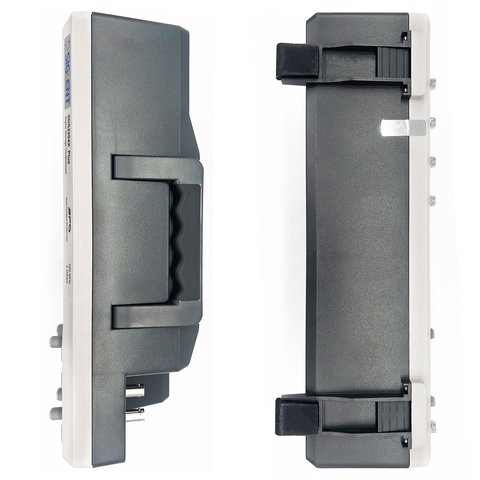

SIGLENT SDS2204X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 200 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
The Siglent SDS2204X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.
Features
- New generation of SPO (Super Phosphor Oscilloscope) technology.
- Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
- Supports 256-level intensity grading and color temperature display modes.
- DigitaI trigger system.
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
- SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
- Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
- History waveform record (History) function for up to 90,000 triggered waveforms (frames).
- Automatic measurement function on 50+ parameters, supports statistics with histogram.
- Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
- Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
- Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
- External mouse and keyboard support.
- Built-in web server supports remote control over the LAN port using a web browser.
- A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).
Technical Specifications
| SDS2102X Plus | SDS2104X Plus | SDS2204X Plus | SDS2354X Plus | |
|---|---|---|---|---|
| Bandwidth | 100 MHz | 100 MHz | 200 MHz | 350 MHz |
| Analog channels | 2 + EXT | 4 + EXT | 4 + EXT | 4 + EXT |
| Sample rate | 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode) | |||
| Memory depth | 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode) | |||
| Waveform capture rate | 120 000 wfm/s (normal mode), 500 000 wfm/s (sequence mode) | |||
| Trigger type | Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial | |||
| Vertical Resolution | 8 bit, 10-bit mode (with typical 100 MHz bandwidth) | |||
| Serial triggering and decoding | standard: I2C, SPI, UART, CAN, LIN optional: CAN FD, FlexRay, I2C, MIL-STD-1553B |
|||
| Math | 2 traces 2 Mpts FFT, +, -, ×, ÷, d/dt, ∫dt, √, average, ERES, and formula editor |
|||
| Automatic measurements | 50+ | |||
| Interface | USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL) | |||
| Display | 10.1" TFT-LCD with capacitive touch screen 1024 × 600 | |||
| Dimensions | 352 × 224 × 111 mm | |||
| Weight | net weight: 3.9 kg gross weight: 5.4 kg |
|||
Video
User Manual
Download SIGLENT SDS2204X Plus user manual.
Datasheet
Download SIGLENT SDS2204X Plus datasheet.

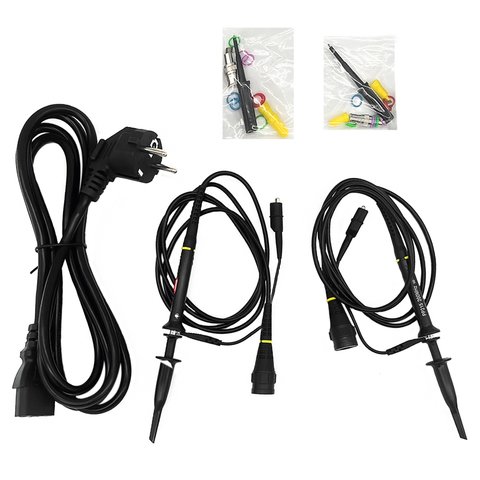

Package Contents
