Hot Air Rework Station Accta 401A (110 V)

id: 4020
3 kg 110 V
Availability in stock: HK
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
USD 169.00
Add to cart
USD 169.00
Add to cart
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

220 V soldering station is also available – see Accta 401 Hot Air Rework Station (220 V).

Accta 401 is a dual-channel hot air turbine soldering/desoldering station with the soldering iron for lead-free soldering of SMD components. It is designed for operation with Hakko T12 series soldering tips. The package includes a hot air gun, a soldering iron, hot air gun and soldering iron holders, Hakko soldering iron tips, and hot air nozzles.

Tired of problems with cheap soldering stations? Try Accta! This is a budget-friendly soldering station that, in terms of quality and specifications, corresponds to a much higher class of soldering equipment. The engineers have used their experience of working with dozens of stations from different manufacturers and taken into account even the smallest details to improve the design. This is why Accta stations do not have any defects that are so common for the low-budget hot air soldering stations.

Accta 401 hot air rework station is a high-power station designed for soldering with a lead-free solder. It features Hakko T12 series removable tips, heats up almost instantly, and guarantees the high temperature accuracy. Accta 401 soldering iron is very efficient: as there are no additional parts between the heating element and the soldering tip, the soldering alloy melts instantly.

By purchasing Accta soldering equipment, you get a 12-month warranty on the soldering station as well as the heating elements of the soldering iron and the hot air gun. Moreover, we provide technical support and advice.

What is the difference between Accta 301 & Accta 401?

The main difference is that Accta 301A is compatible with Hakko 900M soldering tips while Accta 401A is compatible with Hakko T12 soldering tips.

Youtube video

Features

  • Ultra-compact design.
  • Microprocessor control system.
  • Soldering iron calibration system.

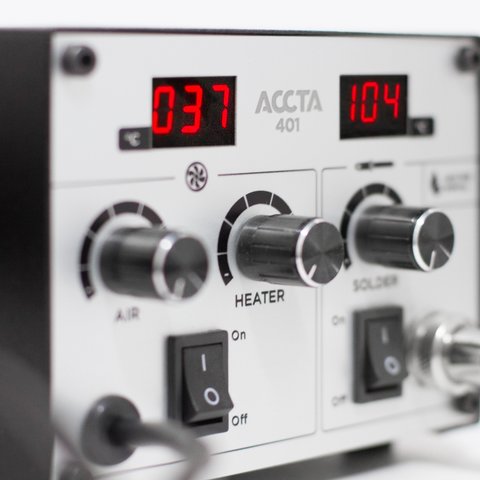

  • Real-time temperature display.
  • Allows temperature monitoring when the tip touches with the surface.
  • Temperature parameters control using analog adjusting potentiometers.
  • Hot air gun overheating protection.
  • Soldering iron temperature accuracy ±5 °C.
  • Soldering iron linear temperature characteristic.
  • Soldering iron heat-up time up to 10 seconds (depends on the tip).
  • Soldering iron auto sleep mode function.
  • Hot air gun auto switch-off.
  • Soldering iron compatibility with Hakko T12 standard replacement soldering tips (original Hakko T12 and AOYUE WQ).

Technical Specifications

Power Consumption 450 W

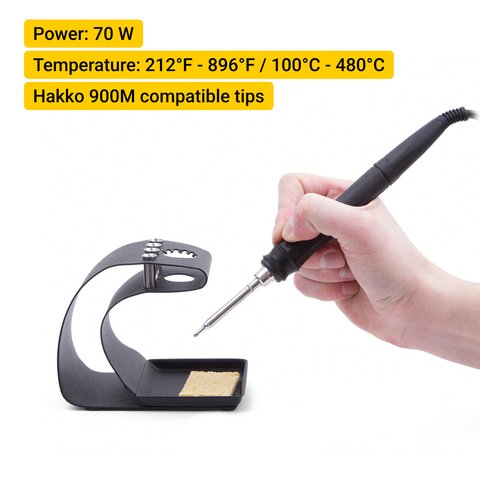

Soldering Iron Power  70 W

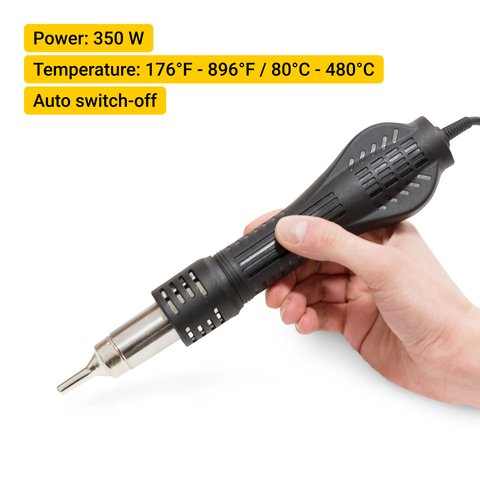

Hot Air Gun Power 350 W
Soldering Iron Temperature Range 100 – 480 °C
Hot Air Gun Temperature Range 80 – 480 °C
Soldering Iron Heating Element Ceramic (cartridge soldering tip)
Hot Air Gun Heating Element Metal heating core
Air Pump Type Turbine blower
Air Capacity 120 l/min

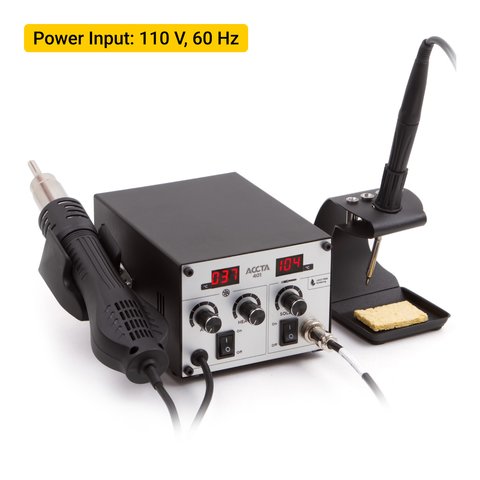

Power Input 110 V, 60 Hz

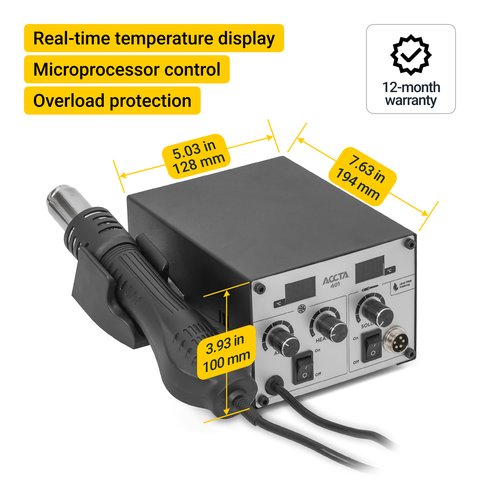

Main Unit & Hot Air Gun Holder Size 190 × 194 × 103 mm
Main Unit Size (without holder) 128 × 194 × 100 mm
Weight 2.3 kg

Package Contents

  1. Accta 401A Hot Air Rework Station – 1 pc.
  2. Hot Air Gun Holder – 1 pc.
  3. Hot Air Nozzles – 3 pcs.
  4. Soldering Iron – 1 pc.
  5. Hakko T12-BC2 Soldering Tip – 1 pc.
  6. Soldering Iron Holder – 1 pc.
  7. Tip Cleaning Sponge – 1 pc.
  8. User's Manual – 1 pc.

Compatible Soldering Tips

Hakko

Conical Type

  • Hakko T12-B2
  • Hakko T12-B3
  • Hakko T12-BL
  • Hakko T12-I
  • Hakko T12-IL
  • Hakko T12-ILS

Chisel Type

  • Hakko T12-D08
  • Hakko T12-D12
  • Hakko T12-D16
  • Hakko T12-D24
  • Hakko T12-D32
  • Hakko T12-D4
  • Hakko T12-D52
  • Hakko T12-DL08
  • Hakko T12-DL12
  • Hakko T12-DL32
  • Hakko T12-DL52

Bevel Type

  • Hakko T12-C08
  • Hakko T12-C1
  • Hakko T12-BC1
  • Hakko T12-BC2
  • Hakko T12-BC3
  • Hakko T12-C4

Sharp-Bent Type

  • Hakko T12-J02
  • Hakko T12-JL02
  • Hakko T12-JS02

Blade Type

  • Hakko T12-K
  • Hakko T12-KF
  • Hakko T12-KFZ
  • Hakko T12-KL
  • Hakko T12-KR
  • Hakko T12-KRZ
  • Hakko T12-KU
Hakko
AOYUE

Manufacturer

Flag  This device was developed and manufactured in Ukraine.

Specifications
Pump type
  • turbine
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Non-available
Power Supply
  • Non-available
Soldering Iron Power
  • 70 W
Hot Air Gun Power
  • 350 W
Desoldering Gun
  • Non-available
