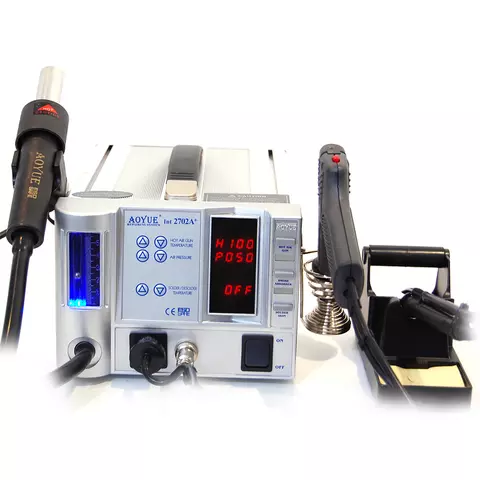

Lead-Free Hot Air Soldering Station AOYUE 2702A+ (110 V)

id: 814130
Lead-Free Hot Air Soldering Station AOYUE 2702A+ (110 V)
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
USD 235.00

Overview

7.5 kg 110 V Warranty: 12 months
4 in 1 lead-free soldering station combines hot air gun, soldering iron, desoldering gun and smoke absorber functions. Microprocessor controlled ESD safe unit. Diaphragm pump. Hot air gun auto-cool function. Read more
USD 235.00
USD 235.00
Impossible to estimate the shipping cost

You may also like

Hot Air Rework Station Accta 401A 110 V
ID: 4020

Hot Air Rework Station Accta 401A (110 V)

5 (1)
USD 168.75
Soldering station for operation with soldering tips of Hakko T12 standard. Soldering iron power: 70 W, heat gun power: 350 W. The package includes one original Hakko tip.
Availability in stock: HK
Shipping cost
ID: 4020 3.8 kg 110

Description

AOYUE 2702A+ is a lead-free hot air soldering station which combines hot air gun, soldering iron, desoldering gun and smoke absorber functions. AOYUE 2702A+ can be used to work with the full range of electronic components (DIP, SOIC, CHIP, QFP, BLCC, BGA, etc).

AOYUE 2702A+ lead-free hot air soldering station review

Features

  • 4 in 1: hot air gun, soldering iron, desoldering gun, and smoke absorber
  • Microprocessor controlled ESD safe unit
  • Set and actual temperature of hot air gun, soldering iron, air pressure and desoldering gun temperature digital control and display
  • Auto-sleep mode: setting up time (1 to 20 minutes), after which soldering station automatically comes to sleep mode and returns to previous settings when the handle is held up again
  • Programmable auto reworking time (20 to 9999 s)
  • Auto-cool function: increasing the reliable operation of the station and its components
  • Compatible with AOYUE air nozzles
  • Compatible with AOYUE LF-series tips

Applications

  • In medium and large scale service centers.
  • Mobile and radio systems devices repair.
  • Cellular phones, PDAs, handhelds, laptops, notebooks, and motherboards repair.
  • LAN, network nodes, and military communications systems equipment repair.
  • BGA reballing.

Technical Specifications

Main Station
Power Input 110 V
Dimensions, mm 188 × 126 × 250
Weight, kg 5.6
Soldering Iron
Power Consumption 70 W
Temperature Range 200 °C to 480 °C
Heating Element Ceramic heater
Output Voltage 24 V
Hot Air Gun
Power Consumption 500 W
Temperature Range 100 °C to 480 °C
Heating Element Metal heating core
Pump Type Diaphragm pump
Air Capacity 23 l/min (max)
Desoldering Gun
Temperature Range 200 °C to 480 °C
Heating Element Ceramic heater
Output Voltage 24 V
Suction Flow 15 l/min (max)
Vacuum Generator Vacuum pump
Vacuum Pressure 600 mm Hg

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

User Manual

PDF  Download AOYUE 2702A+ User Manual.

Package Contents

  • Main station — 1 pc.
  • Hot air gun — 1 pc.
  • Hot air gun holder — 1 pc.
  • Soldering iron with smoke absorber — 1 pc.
  • Soldering iron holder — 1 pc.
  • Soldering iron tip with heater cartridge — 1 pc.
  • Air nozzles (1124, 1130, 1197, 1313, 1919) — 5 pcs.
  • Nozzle cleaning pin — 1 pc.
  • Spare hot air gun heating element — 1 pc.
  • Vacuum suction pen — 1 pc.
  • IC popper — 1 pc.
  • Power cord (1 m) — 1 pc.
  • User manual — 1 pc.

Compatible Soldering Tips

Specifications

Pump type
  • compressor
Design type
  • Desktop
Vacuum pick-up tool
  • Non-available
Desoldering Pump
  • Available
Power Supply
  • Non-available
Soldering Iron Power
  • 70 W
Hot Air Gun Power
  • 500 W
Desoldering Gun
  • Available

Video

Youtube video
Youtube video
