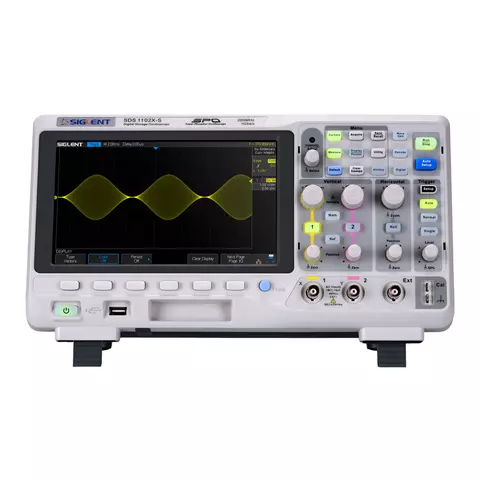

Super Phosphor Oscilloscope SIGLENT SDS1102X-S
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
Rate product
7 kg 110, 220 V Warranty: 36 months
Desktop 2-channel phosphor digital oscilloscope with 100 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate. Built-in Waveform Generator. Read more
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 870200 6 kg 110, 220
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock: HK
Shipping cost
ID: 887344 6 kg
Description

SIGLENT SDS1102X-S is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 100 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts.

Features

  • 25 MHz DDS arbitrary waveform generator, built-in 10 kinds of waveforms
  • New generation of SPO (Super Phosphor Oscilloscope) technology
  • Low background noise, supports 500 μV/div to 10 V/div voltage scales
  • 10 types of one-button shortcuts
  • 36 automatic measurement function
  • Supports statistics calculations, Gating  measurement, Math measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 8 inch TFT-LCD display with 800*480  resolution
  • Abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
  • Supports  SCPI remote control commands
  • Supports multi-language display and embedded online help

Technical Specifications

Model SDS1102X SDS1102X-S SDS1202X SDS1202X-S
Bandwidth 100 MHz 100 MHz 200 MHz 200 MHz
Channels 2 + 1 EXT
Real-time sampling rate 1 GSa/s
Waveform Generator NO YES NO YES
Memory depth 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
Waveform Capture Rate 60,000 wfms/s
Trigger types Edge, Slope, Pulse, Window, Runt, Interval,Time out (Dropout), Pattern, Video trigger, supports HDTV
Language English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
Display 8 inch TFT LCD (800x480)
Power AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max
Weight Net weight 3.26 kg, Gross weight 4.25 kg

Additional Information

Download SIGLENT SDS1102X-S Data Sheet.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • SIGLENT SDS1102X-S Super Phosphor Oscilloscope — 1 pc.
  • Passive Probe 1x 10x — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cord — 1 pc.
  • Quick Start — 1 pc.
  • Certification — 1 pc.
  • CD (Includes User Manual and EasyScopeX software) — 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 100 MHz
Type
  • desktop
  • with built-in generator
  • phosphor
Sample Rate
  • 1 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 14 MB
