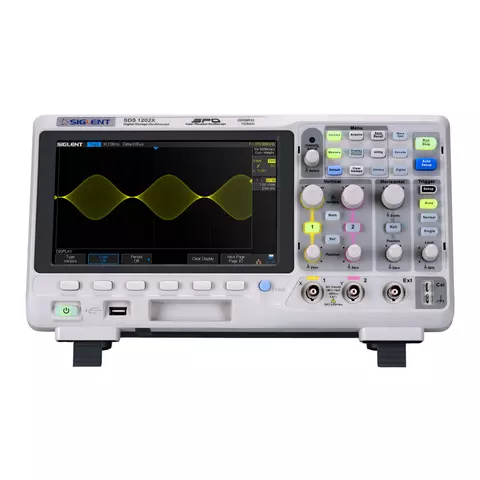

Super Phosphor Oscilloscope SIGLENT SDS1202X

id: 861953
Super Phosphor Oscilloscope SIGLENT SDS1202X
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
8 kg 110, 220 V Warranty: 36 months
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Super Phosphor Oscilloscope SIGLENT SDS1202X E
Bestseller
New
Add to wishlist
Super Phosphor Oscilloscope SIGLENT SDS1202X-E
USD 379.00
USD 341.10
Add to wishlist
Add to cart
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 870200 6 kg 110, 220
Super Phosphor Oscilloscope SIGLENT SDS1204X E
Bestseller
Add to wishlist
Super Phosphor Oscilloscope SIGLENT SDS1204X-E
USD 759.00
USD 683.10
Add to wishlist
Add to cart
4-channel phosphor oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Bestseller
Availability in stock: HK
Shipping cost
ID: 876393 6 kg
Digital Oscilloscope RIGOL DS1202Z E
Bestseller
Add to wishlist
Digital Oscilloscope RIGOL DS1202Z-E
USD 359.00
USD 323.10
Add to wishlist
Add to cart
Dual-channel digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 7" display and up to 30,000 waveforms/sec capture rate.
Bestseller
Availability in stock: HK
Shipping cost
ID: 894828 7 kg 110, 220
Description

SIGLENT SDS1202X is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 200 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology
  • Low background noise, supports 500 μV/div to 10 V/div voltage scales
  • 10 types of one-button shortcuts
  • 36 automatic measurement function
  • Supports statistics calculations, Gating  measurement, Math measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 8 inch TFT-LCD display with 800*480  resolution
  • Abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
  • Supports  SCPI remote control commands
  • Supports multi-language display and embedded online help

Technical Specifications

Model SDS1102X SDS1102X-S SDS1202X SDS1202X-S
Bandwidth 100 MHz 100 MHz 200 MHz 200 MHz
Channels 2 + 1 EXT
Real-time sampling rate 1 GSa/s
Waveform Generator NO YES NO YES
Memory depth 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
Waveform Capture Rate 60,000 wfms/s
Trigger types Edge, Slope, Pulse, Window, Runt, Interval,Time out (Dropout), Pattern, Video trigger, supports HDTV
Language English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
Display 8 inch TFT LCD (800x480)
Power AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max
Weight Net weight 3.26 kg, Gross weight 4.25 kg

Additional Information

Download SIGLENT SDS1202X Data Sheet.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • SIGLENT SDS1202X Super Phosphor Oscilloscope — 1 pc.
  • Passive Probe 1x 10x — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cord — 1 pc.
Read more
Description

SIGLENT SDS1202X is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 200 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology
  • Low background noise, supports 500 μV/div to 10 V/div voltage scales
  • 10 types of one-button shortcuts
  • 36 automatic measurement function
  • Supports statistics calculations, Gating  measurement, Math measurement, Ref measurement
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
  • High Speed hardware based Pass/Fail function
  • Large 8 inch TFT-LCD display with 800*480  resolution
  • Abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
  • Supports  SCPI remote control commands
  • Supports multi-language display and embedded online help

Technical Specifications

Model SDS1102X SDS1102X-S SDS1202X SDS1202X-S
Bandwidth 100 MHz 100 MHz 200 MHz 200 MHz
Channels 2 + 1 EXT
Real-time sampling rate 1 GSa/s
Waveform Generator NO YES NO YES
Memory depth 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel)
Waveform Capture Rate 60,000 wfms/s
Trigger types Edge, Slope, Pulse, Window, Runt, Interval,Time out (Dropout), Pattern, Video trigger, supports HDTV
Language English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal
Display 8 inch TFT LCD (800x480)
Power AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max
Weight Net weight 3.26 kg, Gross weight 4.25 kg

Additional Information

Download SIGLENT SDS1202X Data Sheet.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Package Contents

  • SIGLENT SDS1202X Super Phosphor Oscilloscope — 1 pc.
  • Passive Probe 1x 10x — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cord — 1 pc.
Specifications
Number of channels
  • dual-channel
Bandwidth
  • 200 MHz
Type
  • desktop
  • phosphor
Sample Rate
  • 1 GS/s
Screen Size
  • 8,0" TFT LCD
Storage Capacity
  • 14 MB
