Description

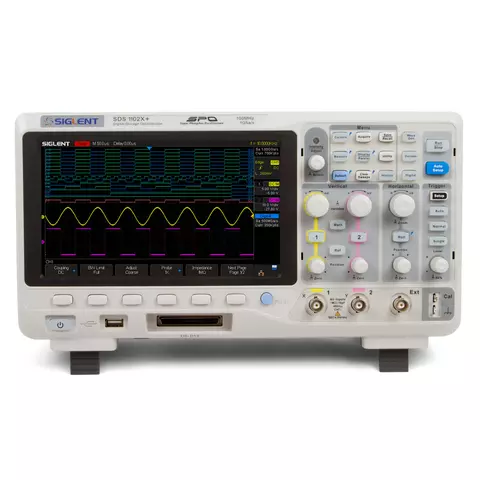

SIGLENT SDS1102X+ is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 100 MHz and a sample rate of 1 GSa/s.

Features

  • New generation of SPO (Super Phosphor Oscilloscope).
  • Low background noise.
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root).
  • 8 inch TFT LCD.
  • Abundant interfaces: USB Host, USB Device (USBTMC), LAN, Pass/Fail, Trigger Out.

Comparative Specifications

Read more
Description

SIGLENT SDS1102X+ is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 100 MHz and a sample rate of 1 GSa/s.

Features

  • New generation of SPO (Super Phosphor Oscilloscope).
  • Low background noise.
  • Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root).
  • 8 inch TFT LCD.
  • Abundant interfaces: USB Host, USB Device (USBTMC), LAN, Pass/Fail, Trigger Out.

Comparative Specifications

Model SDS1102X+ SDS1102X SDS1102X-S SDS1202X SDS1202X-S
Bandwidth 100 MHz 100 MHz 100 MHz 200 MHz 200 MHz
Channels 2 + 1 EXT
Real-time sampling rate 1 GSa/s
Waveform generator + - + - +
Logic analyzer connection + - - - -
Memory depth 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel)
Waveform capture rate 60.000 wfms/s
Trigger types Edge, Slope, Pulse, Window, Runt, Interval, Time out (Dropout), Pattern, Video, supports HDTV
Languages English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic
I/O USB Host, USB Device, LAN, Pass/Fail, Trigger Out
Display 8 inch TFT LCD (800×480)
Power AC 100-240 V, 45-440 Hz

Technical Specifications

Input
Channels 2+EXT
Impedance DC: (1 MΩ±2%) || (18 pF ±2 pF)50 Ω: 50 Ω±2%
Coupling DC, AC, GND
Max input voltage 1 MΩ ≤400 Vpk (DC + Peak AC <=10 kHz), 50 Ω ≤5 Vrms
Passive probes ×1; ×10
Probe attenuator 1 X, 10 X, 50 X, 100 X, 500 X , 1000 X
Vertical scale (probe 1x) 500 μV/div – 10 V/div (1-2-5)
Horizontal System
Time base scale 2.0 ns/div ~ 50 s/div
Waveform capture rate up to 60,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Intensity grading 256 levels
Display format Y-T, X-Y, Roll
Time base accuracy ±25 ppm
Trigger System
Trigger Mode Auto, Normal, Single
Edge Trigger Slope Rising, Falling, Rising & Falling
Edge Trigger Source CH1/CH2 /EXT/(EXT/5)/AC Line
Video Trigger
Sampling type real-time
Max memory depth 7 Mpts/CH (Dual-Channel); 14 Mpts/CH (Single-Channel)
Average averages: 4,16, 32,64,128,256,512,1024
Waveform interpolation sinx/x, Linear
Math functions + , - , * , / , FFT , d/dt , ∫dt , √
FFT window Rectangular, Blackman, Hanning, Hamming
Specifications
Display type 8 inch TFT-LCD
Display resolution 800 × 480
Display color 24 bit
Contrast (typical) 500:1
Range 8 x 14 divisions
Language Simplified Chinese, Traditional Chinese, English, French, Japanese, Korean, German, Russian, Italian, Portuguese
Power 100 ~ 240 V AC, 50/60/400 Hz, 50 W Max
Dimensions 380 × 140 × 270
Weight without package: 3.26 kg; with package: 4.25 kg
Environments
Temperature operating: 10 °C~ +40 °C; non-operating: -20 °C~ +60 °C
Humidity operating: 85% RH, 40 °C, 24 hours; non-operating: 85% RH, 65 °C , 24 hours
height operating: ≤3000 m; non-operating: ≤15,266 m

Waveform capture rate up to 400.000 wfms/s

SIGLENT SDS1102X+

256 intensity grading and color temperature display

SIGLENT SDS1102X+

Color temperature display

SIGLENT SDS1102X+

Record up to 14 Mpts

SIGLENT SDS1102X+

Abundant trigger function

SIGLENT SDS1102X+

Decoding function

SIGLENT SDS1102X+

History waveforms (History) mode and segmented acquisition (Sequence)

SIGLENT SDS1102X+

Comprehensive statistical functions

SIGLENT SDS1102X+

Advanced math function

SIGLENT SDS1102X+

Built-in 25 MHz function/arbitrary waveform generator

SIGLENT SDS1102X+


Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

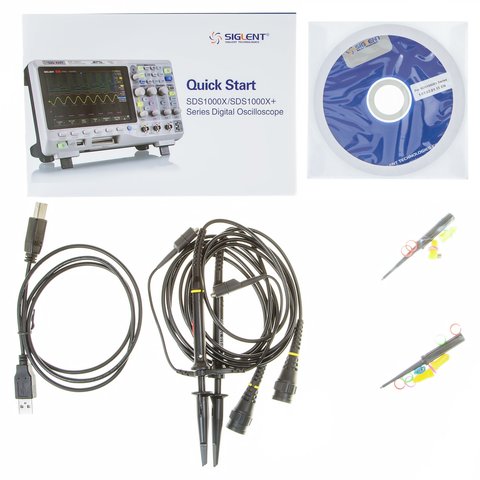

Package Contents

  • Oscilloscope — 1 pc.
  • Passive Probe — 2 pcs.
  • USB Cable — 1 pc.

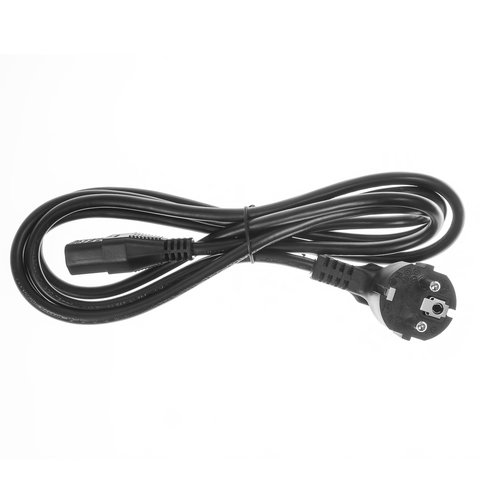

  • Power Cord — 1 pc.
