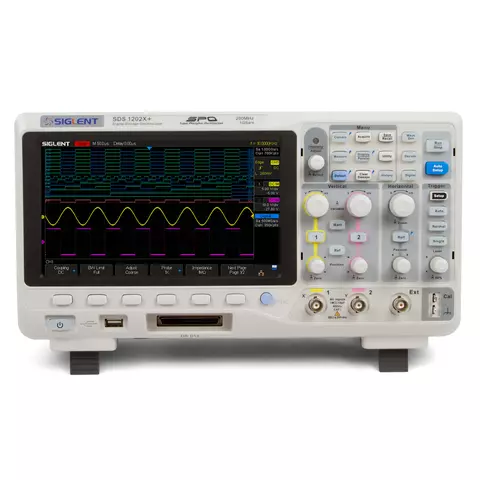

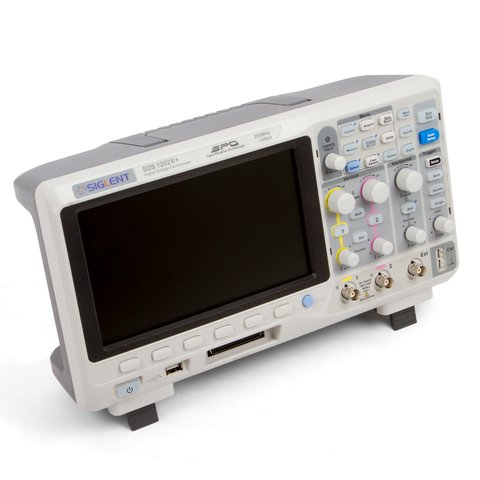

Super Phosphor Oscilloscope SIGLENT SDS1202X+
id: 864640
Super Phosphor Oscilloscope SIGLENT SDS1202X+
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Overview
Video
Video
Video
Video
Video
Video
4.5 kg 110, 220 V Warranty: 36 months
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 8.0" display and up to 60,000 waveforms/sec capture rate. Built-in 1-channel function generator. Read more
Discontinued
You may also like
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 887344 6 kg
Desktop 2-channel phosphor digital oscilloscope with 200 MHz bandwidth, 1 GSa/s real-time sample rate, 14 MB memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
Availability in stock:
HK
ID: 870200 6 kg 110, 220
Description
SIGLENT SDS1202X+ is a dual-channel Super Phosphor Oscilloscope with a bandwidth of 200 MHz, a sample rate of 1 GSa/s, and a standard record length of 14 Mpts.
Features
- Built-in 1-channel function generator.
- New generation of SPO (Super Phosphor Oscilloscope) technology
- Low background noise, supports 500 μV/div to 10 V/div voltage scales
- 10 types of one-button shortcuts
- 36 automatic measurement function
- Supports statistics calculations, Gating measurement, Math measurement, Ref measurement
- Waveform math function (FFT, addition, subtraction, multiplication, division, integration, differentiation, square root)
- High Speed hardware based Pass/Fail function
- Large 8 inch TFT-LCD display with 800*480 resolution
- Abundant interfaces: USB Host, USB Device (USBTMC), LAN (VXI-11), Pass / Fail, Trigger Out
- MSO port
- Supports SCPI remote control commands
- Supports multi-language display and embedded online help
Technical Specifications
| Bandwidth | 200 MHz |
| Channels | 2 + 1 EXT |
| Real-time sampling rate | 1 GSa/s |
| Waveform Generator | YES |
| Memory depth | 7Mpts/CH (Dual-Channel); 14Mpts/CH (Single-Channel) |
| Waveform Capture Rate | 60,000 wfms/s |
| Trigger types | Edge, Slope, Pulse, Window, Runt, Interval,Time out (Dropout), Pattern, Video trigger, supports HDTV |
| Language | English, French, German, Russian, Spanish, Simplified Chinese, Traditional Chinese, Portuguese, Japanese, Korean, Italian, Arabic |
| I/O | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, 1KHz Cal |
| Display | 8 inch TFT LCD (800x480) |
| Power | AC 100-240 V, 45 Hz - 440 Hz, 50 VA Max |
| Weight | Net weight 3.26 kg, Gross weight 4.25 kg |
Additional Information
Download SIGLENT SDS1202X+ Data Sheet.
Video
You'll find even more video reviews in the Video tab. Go and check it out!
Package Contents
- SIGLENT SDS1202X+ Super Phosphor Oscilloscope — 1 pc.
- Passive Probe 1x 10x — 2 pcs.
- USB Cable — 1 pc.
- Power Cord — 1 pc.
- Certification — 1 pc.
