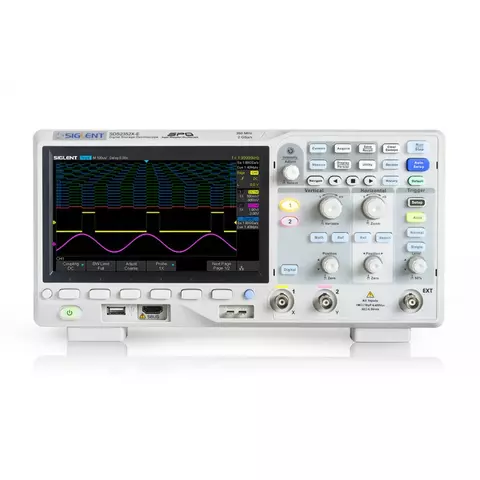

Super Phosphor Oscilloscope SIGLENT SDS2352X-E

id: 887345
7 kg Warranty: 36 month (s)
Desktop 2-channel phosphor digital oscilloscope with 350 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory, 7.0" display and up to 400,000 waveforms/sec capture rate.
USD 839.00
Contact
sales team
USD 839.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

SIGLENT SDS2352X-E is a desktop 2-channel super phosphor digital oscilloscope with 350 MHz bandwidth, 2 GSa/s real-time sample rate, 28 Mpts memory that uses a new generation of SPO technology. With its excellent signal fidelity, background noise is lower than similar products in the industry. It has a minimum vertical input range of 500 μV/div, an innovative digital trigger system with high sensitivity and low jitter, and a waveform capture rate of 400,000 frames/sec (sequence mode).

Features

  • Real-time sampling rate up to 2 GSa/s (1 GSa/s per channel, if both channels active)
  • The newest generation of SPO technology
  • Record length up to 28 Mpts
  • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
  • Serial bus triggering and decoding (standard), supports protocols IIC, SPI, UART, CAN, LIN
  • Video trigger, supports HDTV
  • Low background noise with voltage scales from 500μV/div to 10V/div
  • 10 types of one-button shortcuts, supports Auto Setup, Default, Cursors, Measure, Roll, History, Display/Persist, Clear Sweep, Zoom and Print
  • History waveform rec. function (max rec. waveform length is 80k frames)

Technical Specifications

Model SDS2202X-E SDS2352X-E
Bandwidth 200 MHz 350 MHz
Sampling Rate (Max.) 2 GSa/s 2 GSa/s
Channels 2CH+EXT 2CH+EXT
Memory Depth (Max.) 14 Mpts/CH (not interleave mode); 28 Mpts/CH (interleave mode)
Waveform Capture Rate (Max.) 110,000 wfm/s (normal mode), 400,000 wfm/s (sequence mode)
Trigger Types Edge, Slope, Pulse width, Window, Runt, Interval, Dropout, Pattern, Video
Serial Trigger (Standard) I2C, SPI, UART, CAN, LIN
Decode Type (Standard) I2C, SPI, UART, CAN, LIN
Display 7 inch TFT–LCD (800 x 480 pixels)
Dimensions 312 × 133 × 151 mm
Weight 2.6 kg

Video

Youtube video

Youtube video

Youtube video

Youtube video

Data Sheet

PDF  Download SIGLENT SDS2352X-E Data Sheet.

User Manual

PDF  Download SIGLENT SDS2352X-E User Manual.

Package Contents

  • SIGLENT SDS2352X-E Super Phosphor Oscilloscope — 1 pc.
  • Passive Probe — 2 pcs.
  • USB Cable — 1 pc.
  • Power Cord — 1 pc.
  • Quick Start Guide — 1 pc.
Specifications
Screen Size
  • 7.0" TFT display
Number of channels
  • dual-channel
Type
  • desktop
  • phosphor
Sample Rate
  • 2 GS/s
Bandwidth
  • 350 MHz
Storage Capacity
  • 28 MB
