Digital Oscilloscope SIGLENT SDS2354X Plus

id: 893047
8 kg Warranty: 36 month (s)
4 channel Super Phosphor Oscilloscop with a 350 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.
USD 2799.00
Contact
sales team
USD 2799.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

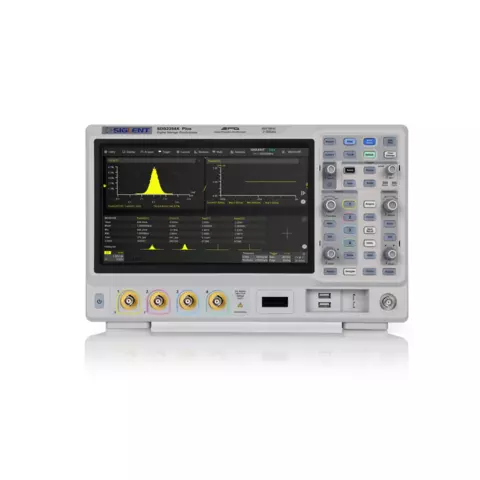

SIGLENT SDS2354X Plus is a desktop 4-channel Super Phosphor Oscilloscop with a 350 MHz bandwidth, a sample rate of 2 GSa/s, a maximum memory depth of 200 MB and a 10.1" display.

The Siglent SDS2354X Plus employs Siglent’s SPO technology with a maximum waveform capture rate of up to 120,000 wfm/ s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter.

Features

  • New generation of SPO (Super Phosphor Oscilloscope) technology.
  • Waveform capture rates up to 120,000 wfm/s (normal mode) and 500,000 wfm/s (sequence mode).
  • Supports 256-level intensity grading and color temperature display modes.
  • DigitaI trigger system.
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern and Video (HDTV supported).
  • SeriaI bus triggering and decoder, supports l2C, SPI, UART, CAN, LIN (Standard) and CAN FD, FlexRay, l2S, and MIL-STD- 1553B (optional) protocols.
  • Low background noise, features 0.5 mV/div to 10 V/div voltage scales.
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 90,000), according to trigger conditions set by the user.
  • History waveform record (History) function for up to 90,000 triggered waveforms (frames).
  • Automatic measurement function on 50+ parameters, supports statistics with histogram.
  • Abundant data processing and analysis functions such as Search, Navigate, Mask Test, Bode plot, Power Analysis (optional) and Counter.
  • Math measurement (2 Mpts FFT, +, -, x, ~, d/dt, f dt,f, average, ERES, and formula editor).
  • Multiple interfaces: USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL).
  • External mouse and keyboard support.
  • Built-in web server supports remote control over the LAN port using a web browser.
  • A waveform generator, a logic analyzer module and power analysis option for ripple and power quality measurements (optional).

Technical Specifications

  SDS2102X Plus SDS2104X Plus SDS2204X Plus SDS2354X Plus
Bandwidth 100 MHz 100 MHz 200 MHz 350 MHz
Analog channels 2 + EXT 4 + EXT 4 + EXT 4 + EXT
Sample rate 2 GSa/s (interleaving mode), 1 GSa/s (non-interleaving mode)
Memory depth 200 Mpts (interleaving mode), 100 Mpts (non-interleaving mode)
Waveform capture rate 120 000 wfm/s (normal mode), 500 000 wfm/s (sequence mode)
Trigger type Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Video and Serial
Vertical Resolution 8 bit, 10-bit mode (with typical 100 MHz bandwidth)
Serial triggering and decoding standard: I2C, SPI, UART, CAN, LIN
optional: CAN FD, FlexRay, I2C, MIL-STD-1553B
Math 2 traces
2 Mpts FFT, +, -, ×, ÷, d/dt, ∫dt, √, average, ERES, and formula editor
Automatic measurements 50+
Interface USB 2.0 Host × 2, USB 2.0 Device, LAN, External Trigger, Auxiliary output (TRIG OUT, PASS/FAIL)
Display 10.1" TFT-LCD with capacitive touch screen 1024 × 600
Dimensions 352 × 224 × 111 mm
Weight net weight: 3.9 kg
gross weight: 5.4 kg

Video

Youtube video

User Manual

PDF  Download SIGLENT SDS2354X Plus user manual.

Datasheet

PDF  Download SIGLENT SDS2354X Plus datasheet.

Package Contents

  • Digital Oscilloscope SIGLENT SDS2354X Plus — 1 pc.
  • USB Cable — 1 pc.
  • Passive Probe — 4 pcs.
  • Power Cord — 1 pc.
  • User Manual — 1 pc.
