Trinocular Microscope ST60-24T2 with lighting
id: 8597

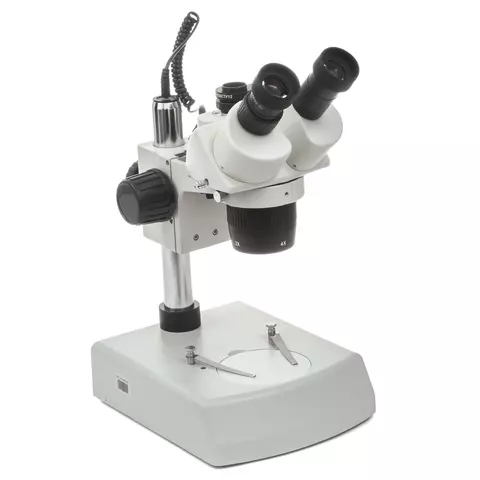

Trinocular Microscope ST60-24T2 with lighting
Overview
Description
Specifications
Delivery
Payment
Warranty
USD 290.00
Overview
10.5 kg 220 V Warranty: 6 months
45° inclined binocular/trinocular head, 360° rotatable.
Illumination: Built-in and built-out illumination system
Working distance: 100mm Read more
Buy wholesale and save
You may also like
Description
ST60-24T2 is a trinocular microscope width rotating 2x/4x zoom objective on a bay.
Third ocular is developed especially for USB-cameras. It allow user to conduct a research and simultaneously record data. To achieve one of the USB-cameras can be used. Precise optic system with an ocular adjustment angle up to 45°. During objective rotation to the 180° point it is possible to switch between 2x/4x zoom options, which provide clear stereo image and wide field of view. ST60-24T2 can be used in electronic and precise machine-building industry for assembling and inspecting products with irregular surface.
Note! We recommend using the protective glass while conducting soldering operations under this microscope.
Features
- Working distance can be optionally increased to 165 mm using the auxiliary objective ST60 0.5x WD165.
- Zoom can be optionally increased to 40x/80x using the additional eyepiece WF20x/10mm.
- Highlighting and backlighting. It can be optionally improved with YK-S24T LED annular illuminator and upper illuminator SZM-L1.
Technical Specifications
| Ocular Lens | 10X |
| Objective Lens | 2X/4X |
| Oculars Adjust Angle | 45° |
| Microscope Rotating Angle | 360° |
| Distance Between Oculars | 55-75 mm |
| Dioptric Correction | +- 5 dioptre |
| Working Distance | 100 mm |
| Zoom | 20x/40x |
Optical Parameter
| Magnification of objective | WF10X20 | WF15X15 | WF20X10 | |||
|---|---|---|---|---|---|---|
| Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | Total magnification | Viewing Field of specimen | |
| 1X | 10X | 20 | 15X | 15 | 20X | 10 |
| 2X | 20X | 10 | 30X | 7.5 | 40X | 5 |
| 3X | 30X | 6.7 | 45X | 5 | 60X | 3.3 |
| 4X | 40X | 5 | 60X | 3.75 | 80X | 2.5 |
ST60 Auxiliary Objective
| Auxiliary objective | Magnification | Working distance (mm) |
| 0.5 | 0.5X | 165 |
| 1.5 | 1.5X | 45 |
| 2 | 2X | 30 |
Specification and Option
| Specification | Model | ||||||
| Parts | Description | ST60-24B1 | ST60-24B2 | ST60-24B3 | ST60-24T1 | ST60-24T2 | ST60-24T3 |
|---|---|---|---|---|---|---|---|
| Eyepiece | SZM-EWh10X/20mm | Yes | Yes | Yes | Yes | Yes | Yes |
| SZM-EWh10X/20rmm | – | – | – | – | – | – | |
| SZM-EWh15X/15mm | – | – | – | – | – | – | |
| SZM-EHWh20X/10mm | – | – | – | – | – | – | |
| Objective | 1X/100mm | – | – | – | – | – | – |
| 2X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| 3X/100mm | – | – | – | – | – | – | |
| 4X/100mm | Yes | Yes | Yes | Yes | Yes | Yes | |
| Eye-cap | – | Yes | Yes | Yes | Yes | Yes | Yes |
| Head | ST6024 binocular | Yes | Yes | Yes | – | – | – |
| ST6024TR Trinocular | – | – | – | Yes | Yes | Yes | |
| Focusing Bracket | SZM-A1 | Yes | Yes | Yes | Yes | Yes | Yes |
| Stand | SZM-ST1 | Yes | – | – | Yes | – | – |
| SZM-ST2 | – | Yes | – | – | Yes | – | |
| SZM-ST3 | – | – | Yes | – | – | Yes | |
| SZ-STL1 | – | – | – | – | – | – | |
| SZ-STL2 | – | – | – | – | – | – | |
| Light | SZM-L1 | – | Yes | Yes | – | Yes | Yes |
Package Contents
- ST60-24T2 binocular microscope — 1 pc.
- 2x/4x objective lens — 1 pc.
- SZM-EWh10X/20 mm ocular lens — 1 pc.
- Satinated glass plate — 1 pc.
- Protective holster — 1 pc.
- Rubber ocular straps — 1 pc.
- User's Guide — 1 pc.
Specifications
| Type |
|
| Maximum Zoom Ratio |
|
| Illumination |
|
| Zoom Rate Control Method |
|
