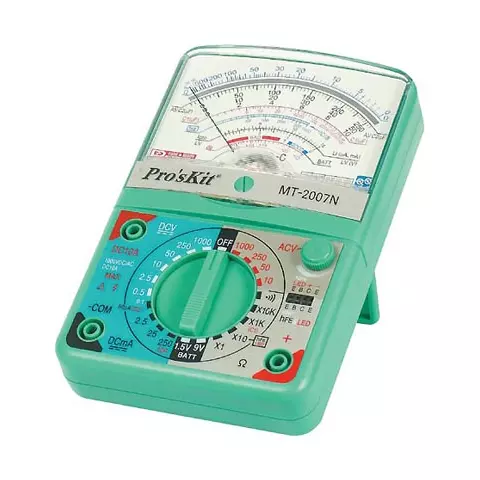

Analogue Multimeter Pro'sKit MT-2007N

id: 7455
0.45 kg Warranty: 6 month (s)
Protective function analogue multimeter, ensures precise results in wide measurement range. Continuity with beeper. Built in incorrect usage protection.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Video
Delivery
Payment
Warranty
Overview

Analogue multimeter Pro'sKit MT-2007N with protective function. Ensures precise results in wide measurement range. Continuity with beeper. Built in incorrect usage protection.

Features

  • Durable reliable vibration-proof and patented protection circuit.
  • Double-side glass epoxy through hole resist finish.
  • Protective function preventing mixed measurement.
  • Resistance, current and low-range voltage.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Auto/Manual ranging manual
DC voltage 0.1/0.5/2.5/10/50/250/1000 V (20k Ω /V)
AC voltage 10/50/250/1000 V (AC 9k Ω / V)
DC current  50 µ/2.5/25/250 mA/10 A
Resistance 1/10 Ω/1/10 k Ω
Capacitance C1(Rx1K): 2000 µF, C2: 0.025/025/25 µF
Conductivity wire identification Yes
Diode, transistor test Yes
Overload protection Yes
Power source 1.5/9 V
Dimensions 150 × 95 × 35 mm
Specifications
Type
  • analog
Measured Values
  • DC voltage
  • AC voltage
  • DC
  • resistance
  • capacitance
Additional Functions
  • acoustic continuity test
  • diode test
  • transistors test
Range Selection
  • manual range
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 1000 V
DC
  • up to 10 A
AC
  • does not measure the AC
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Digit Capacity
  • analog
Resistance
  • up to 10 kOhm
Battery Testing
  • yes
