Benchtop Digital Multimeter UNI-T UT8803
id: 873659
Benchtop Digital Multimeter UNI-T UT8803
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Overview
3 kg Warranty: 24 months
True RMS benchtop digital multimeter with auto range, a large EBTN LCD display and a USB interface, features thyristor testing mode. Read more
Discontinued
Description

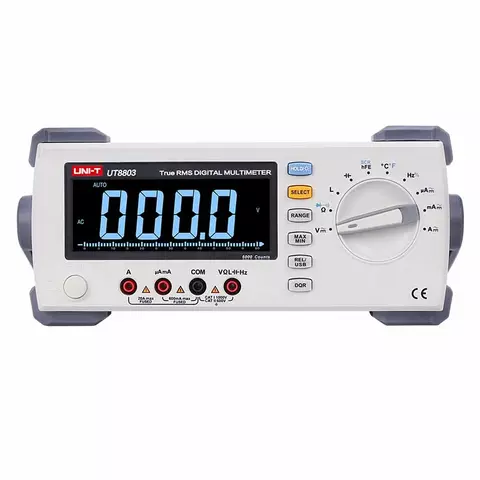

UNI-T UT8803 is a 5999-count True RMS benchtop digital multimeter with auto range. Having a large EBTN LCD display and a USB interface, it features thyristor testing mode, overload protection for all ranges and special appearance design. It is an ideal tool for electricians.
Features
- Auto range
- Diode
- SCR
- Transistor
- Continuity buzzer
- Data Hold
- MAX/MIN
- USB interface
- LCD Backlight
- Input Protection
Technical Specifications
| Function | Range | Accuracy |
|---|---|---|
| DC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.3%+2) |
| AC Voltage (V) | 600mV/6V/60V/600V/1000V | ±(0.6%+5) |
| DC Current (A) | 600μA/6000μA/60mA/600mA/20A | ±(0.8%+3) |
| AC Current (A) | 600μA/6000μA/60mA/600mA/20A | ±(1%+5) |
| Resistance (Ω) | 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ | ±(1%+5) |
| Capacitance (F) | 6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF | ±(1.5%+5) |
| Inductance (H) | 600μH/6mH/60mH/600mH/6H/60H/100H | ±(1.5%+5) |
| Frequency (Hz) | 600Hz/6kHz/60kHz/600kHz/6MHz/20MHz | ±(0.1%+10) |
| Temperature (°C) | -40 °C ~ 1000°C | ±(1%+1°C) |
| Temperature (°F) | -40°F ~ 1832°F | ±(1%+2°F) |
| General Characteristics | ||
| Power | 100V-120V / 220V-240V ±10%, 47Hz~63Hz | |
| Display | LCD, EBTN | |
| Size | 380 × 320 × 110 mm | |
| Weight | 2.4 kg | |
User Manual
Download UNI-T UT8803 User Manual.
Sofware
Download UNI-T UT8803 Sofware.
Package Contents
- UNI-T UT8803 Benchtop Digital Multimeter — 1 pc.
- Test lead — 1 set
- Power cord — 1 pc.
- USB interface cable — 1 pc.
Specifications
| Type |
|
| Range Selection |
|
| Digit Capacity |
|
| DC Voltage |
|
| AC Voltage |
|
| Resistance |
|
| DC |
|
| AC |
|
| Inductance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| Transistor check |
|
| Capacitance |
|
| Continuity test |
|
| Frequency |
|
| NCV |
|
| Battery Testing |
|
