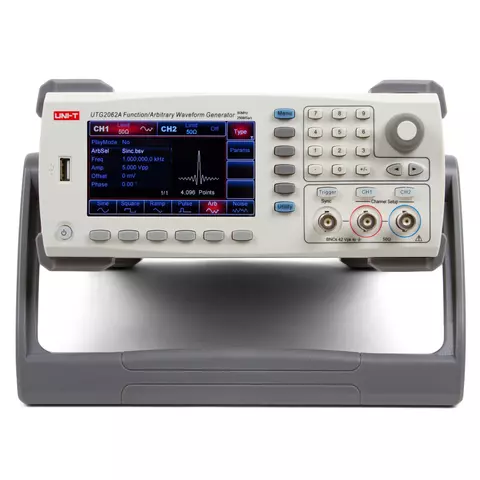

DDS/Arbitrary Waveform Generator UNI-T UTG2062A

id: 847048
4.4 kg 110, 220 V Warranty: 24 month (s)
Dual-channel DDS/arbitary waveform generator, with 60 MHz frequency, 250 MS/s sample rate, 14 bits vertical resolution, 1 Mpts memory depth , functions: AM, FM, PM, ASK, FSK, PWM, Sweep, Burst.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

UNI-T UTG2062A is a high quality bench-top DDS/arbitrary waveform generator, featuring a large, full-colour screen, labelled buttons and dual ports for measuring 2 channels simultaneously. It is capable of generating multiple waveform types, including square, sine, ramp, triangle, pulse, noise, DC and arb. It uses output frequency of 60 MHz, frequency resolution of 1 μHz and has vertical resolution of 14 bits. The UTG2062A also features multiple modulation types which are AM, FM, PM, ASK, FSK, PWM.

Built-in USB interface allows the device to be connected up to a PC or other similar device via the included USB cable.

Features

  • Generates multiple waveform types including sine, square, ramp, triangle, pulse, noise, DC and Arb.
  • Dual channel device.
  • Sample rate of 250 MS/s.
  • Output frequency of 60 MHz.
  • Frequency resolution of 1 μHz.
  • Vertical resolution of 14 bits.
  • Max arb memory depth 1 Mpts.
  • Output amplitude range 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 Vpp (1 MΩ).
  • Multiple modulation types: AM, FM, PM, ASK, FSK, PWM.
  • USB device, USB host and LAN interfaces.
  • 4.3 inch 64 K colour TFT LCD screen.
  • Complies with EN 61010-1 and CAT III 300V.

Technical Specifications

Channels 2
Sample Rate 250 ms/s
Output Frequency 60 MHz
Frequency Resolution 1 μHz
Vertical Resolution 14 bits
Max. Arb Memory Depth 1 Mpts
Waveforms Sine, Square, Ramp, Triangle, Pulse, Noise, DC and Arb
Output Amplitude Range 1 mVpp-10 Vpp (50 Ω); 2 mVpp-20 vpp (1 MΩ)
Modulation Types AM, FM, PM, ASK, FSK, PWM
Interfaces USB Device, USB Host and LAN
Power 100-240 V AC, 40-440 Hz
Display 4.3" 64K Colour TFT LCD (480 × 272)
Size 231 × 94 × 283 mm
Weight 3.2 kg

Additional Information

Download UNI-T UTG2062A Operating Manual.

Download UNI-T UTG2062A Data Sheet.

Package Contents

  1. DDS/Arbitrary Waveform Generator UNI-T UTG2062A — 1 pc.
  2. BNC Cable — 1 pc.
  3. USB Cable — 1 pc.
  4. Power Cord — 1 pc.
  5. PC Software CD — 1 pc.
Specifications
Max. signal frequency
  • 60 MHz
Channels
  • dual channel
