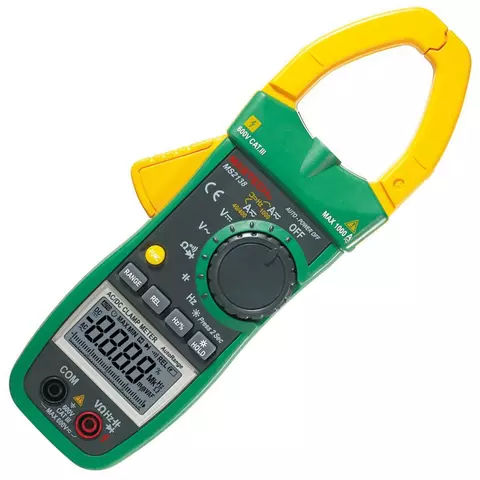

Digital Clamp Meter MASTECH MS2138
id: 811499
Digital Clamp Meter MASTECH MS2138
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
Video
0.65 kg Warranty: 6 months
225mm x 86mm x 33mm, ,max Ø cunductor 42mm, 4-400V, 400-1000A, 400Ω-4MΩ 40Hz to 100kHz
You may also like
Bestseller
New
Add to wishlist
Digital Clamp Meter Accta AT-1000A
USD 39.96
Add to wishlist
Add to cart
Clamp meter used to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing. Jaw opening: 55 mm.
Bestseller
New
Availability in stock:
HK
ID: 891580 0.9 kg
Bestseller
Add to wishlist
Digital Clamp Meter Accta AT-1000E
USD 41.77
Add to wishlist
Add to cart
True RMS clamp meter designed to measure AC/DC voltage and current, resistance, capacitance, frequency, duty cycle, and to perform diode and continuity testing.
Bestseller
Availability in stock:
HK
ID: 891581 0.9 kg
Bestseller
Add to wishlist
Digital Clamp Meter UNI-T UT208B
USD 83.92
Add to wishlist
Add to cart
True RMS clamp measures AC/DC current, AC/DC voltage, resistance, capacitance, temperature, duty cycle, continuity, and may be used for diode testing.
Bestseller
Availability in stock:
HK
ID: 898466 1 kg
Description
- Conform to the IEC1010-1 & IEC1010-1-032 standard
- Double insulation (protection class 600V CAT III and pollution degree 2)
- Auto/Manual range
- Auto zero key for DCA
- Data hold function
- MAX/MIN function
- Back light function
- Jaw lighting
- Auto power off
- Continuity test
- Diode test
- Secondary injection molding case
- SMT application
FEATURES OF MS2138
| Display | 3999 counts and 42 segments bar graph |
| DCV | 4/40/400V±0.8%, 1000V±1.0% |
| ACV | 4/40/400V±1.0%, 700V±1.2% |
| DCA | 400/1000A±3.0% |
| ACA | 400/1000A600A±3.0% |
| Resistance | 400/4k/40k/400k/4MΩ±1.0%, 40MΩ±2.0% |
| Frequency | 40Hz to 100kHz±0.1% (from test terminal), 40Hz to 400Hz±0.1& (from current clamp) |
| MAX diameter for conductor | Ø42mm |
| Dimension | 225mm x 86mm x 33mm |
| Power | 1.5V (AAA) x 3 |
| Weight | 320g |
Read more
Description
- Conform to the IEC1010-1 & IEC1010-1-032 standard
- Double insulation (protection class 600V CAT III and pollution degree 2)
- Auto/Manual range
- Auto zero key for DCA
- Data hold function
- MAX/MIN function
- Back light function
- Jaw lighting
- Auto power off
- Continuity test
- Diode test
- Secondary injection molding case
- SMT application
FEATURES OF MS2138
| Display | 3999 counts and 42 segments bar graph |
| DCV | 4/40/400V±0.8%, 1000V±1.0% |
| ACV | 4/40/400V±1.0%, 700V±1.2% |
| DCA | 400/1000A±3.0% |
| ACA | 400/1000A<600A±2.5%, >600A±3.0% |
| Resistance | 400/4k/40k/400k/4MΩ±1.0%, 40MΩ±2.0% |
| Frequency | 40Hz to 100kHz±0.1% (from test terminal), 40Hz to 400Hz±0.1& (from current clamp) |
| MAX diameter for conductor | Ø42mm |
| Dimension | 225mm x 86mm x 33mm |
| Power | 1.5V (AAA) x 3 |
| Weight | 320g |
Video
PACKAGE CONTENT
- Operator’s instruction manual -1 pcs.
- Set of test leads 2 pcs.
- Battery (1.5V Size AAA) - 3 pcs.
Specifications
| Digit Capacity |
|
| Type |
|
| Jaw diameter |
|
| DC Voltage |
|
| Resistance |
|
| Frequency |
|
| Capacitance |
|
| Temperature |
|
| Power |
|
| Duty cycle |
|
| True RMS |
|
| Backlight |
|
| PC connection |
|
| Diode test |
|
| Analog bar graph |
|
| AC Voltage |
|
| Continuity test |
|
| DC |
|
| AC |
|
| Three-phase voltage measurement |
|
| Three-phase current measurement |
|
