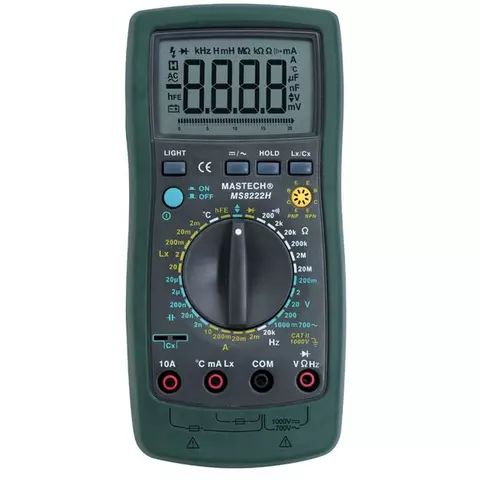

Digital Multimeter MASTECH MS8222H

id: 9371
Digital Multimeter MASTECH MS8222H
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
Overview
0.7 kg Warranty: 6 months
Large function package. 2000 counts. TTL tester. Induction, capacity and frequency measuring. LCD display with backlight. Automatic shutdown.
Price coming soon
Contact
sales team
Compare
Compare
Price coming soon
Contact
sales team
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT58D
Add to wishlist
Digital Multimeter UNI-T UT58D
USD 31.37
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, inductance measurements, and diode, continuity and transistor tests.
Availability in stock: HK
Shipping cost
ID: 819445 0.67 kg
Digital Multimeter UNI T UT89X
Add to wishlist
Digital Multimeter UNI-T UT89X
USD 20.98
Add to wishlist
Add to cart
It can measure Max. 1000V DC/AC voltage, Max. 20A DC/AC current, resistance, capacitance, frequency, temperature, diode, hFE, continuity and NCV, distinguish between neutral and live wires.
Availability in stock: HK
Shipping cost
ID: 886900 1 kg
Digital Multimeter UNI T UT136C+
Add to wishlist
Digital Multimeter UNI-T UT136C+
USD 18.86
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature, hFE (transistor measurement), and also performs diode and transistor tests.
Availability in stock: HK
Shipping cost
ID: 883716 0.5 kg
Description

Mastech MS8222H –  digital multimeter with manual ranging is equipped with 3½ digit backlit LCD with with 40-segmental scale indicating the measurement value in mnemonic form.

This model is compatible with Test Leads MASTECH T3000.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection manual
Display 3½ digits (2000 counts)
DC voltage 200 mV/2/20/200 V ±0.5%, 1000 V ±0.8%
AC voltage 200 mV/2/20/200 V ±1.0%, 700 V ±1.2%
DC current 2/20 mA ±1.0%, 200 mA ±1.5%, 10 A ±2.0%
AC current 2/20 mA ±1.2%, 200 mA ±2.0%, 10 A ±3.0%
Frequency 20 kHz ±1.5%
Resistence 200 Ω/2/20/200 kΩ/2/20 MΩ ±1.0%
Temperature measurement - 20°C- 1000°C ±3.0%
Capacitance 2/20/200 nF/2/20 µF ±4.0%
Inductance 2/20/200 mH/2/20 H ± 3.0%
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Data Hold function Yes
Display illumination Yes
Power source 9 V
Dimensions 195 × 92 × 43 mm
Read more
Description

Mastech MS8222H –  digital multimeter with manual ranging is equipped with 3½ digit backlit LCD with with 40-segmental scale indicating the measurement value in mnemonic form.

This model is compatible with Test Leads MASTECH T3000.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical specifications

Range Selection manual
Display 3½ digits (2000 counts)
DC voltage 200 mV/2/20/200 V ±0.5%, 1000 V ±0.8%
AC voltage 200 mV/2/20/200 V ±1.0%, 700 V ±1.2%
DC current 2/20 mA ±1.0%, 200 mA ±1.5%, 10 A ±2.0%
AC current 2/20 mA ±1.2%, 200 mA ±2.0%, 10 A ±3.0%
Frequency 20 kHz ±1.5%
Resistence 200 Ω/2/20/200 kΩ/2/20 MΩ ±1.0%
Temperature measurement - 20°C- 1000°C ±3.0%
Capacitance 2/20/200 nF/2/20 µF ±4.0%
Inductance 2/20/200 mH/2/20 H ± 3.0%
Conductivity wire identification Yes
Diode / transistor hFE test Yes
Data Hold function Yes
Display illumination Yes
Power source 9 V
Dimensions 195 × 92 × 43 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • capacitance
  • frequency
  • temperature
  • inductance
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • mnemonic
  • diode test
  • transistors test
  • backlight
Range Selection
  • manual range
Digit Capacity
  • 1999
DC Voltage
  • up to 1000 V
Resistance
  • up to 20 MOhm
Capacitance
  • up to 20 μF
Frequency
  • up to 20 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • yes
Temperature
  • yes
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • yes
Transistor check
  • yes
AC Voltage
  • up to 700 V
Continuity test
  • yes
Battery Testing
  • no
