Overview
0.69 kg Warranty: 6 months
High-precision measurement. Digit capacity - 3999. Relative measurement mode (REL). Automatic power off. Self-repair safety device
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Digital Multimeter UNI T UT58E
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT58E
USD 53.62
Add to wishlist
Add to cart
A digital multimeter for AC/DC current and voltage, resistance, capacitance, frequency, temperature measurements, and diode, continuity and transistor tests.
Bestseller
Availability in stock: HK
Shipping cost
ID: 819446 0.67 kg
Digital Multimeter UNI T UT39C+
Bestseller
Add to wishlist
Digital Multimeter UNI-T UT39C+
USD 15.26
Add to wishlist
Add to cart
Measures AC/DC voltage and current, resistance, capacitance, frequency, temperature and hFE (transistor measurement). Diode, continuity and non-contact voltage (NCV) testing. Manual range selection.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883714 0.5 kg
Digital Multimeter UNI T UT136B+
Add to wishlist
Digital Multimeter UNI-T UT136B+
USD 17.59
Add to wishlist
Add to cart
Measures up to 1000 V and 10 A DC/AC voltage and current. Large LCD screen and 4 x/s sampling rate provide users with more accurate readings.
Availability in stock: HK
Shipping cost
ID: 883718 0.5 kg
Description

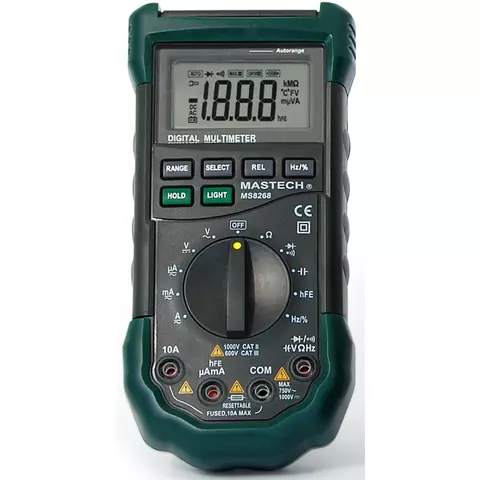

Digital multimeter Mastech MS8268 supports relative measurement mode (REL). This device meets the IEC1010-1 CAT II 1000V/ CAT III 600V requirements. Digital multimeter Mastech MS8268 is equipped with 3¾-digits illuminated LCD with 3999 counts maximum value. The multimeter is supplied with self-repair safety device for overload breaking and short circuit protection.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Counts 3999
DC voltage  400 mV/4/40/400 V ±0.7%, 1000 V ±0.8%
AC voltage 400 mV/4/40/400 V ±0.8%, 750V ±1.0%
DC current  4/40/400 mA ±1.2%, 10 A ±2.0%
AC current  4/40 mA/400 mA ±1.5%, 10 A ±3.0%
Frequency 10/100/1000 Hz/10/200 kHz ±2.0%
Resistance 400Ω /4/400kΩ /4MΩ ±1.2% 40MΩ ±2.0%
Transistors current gain rate up to 1000
Capacitance 4nF ±5.0%, 40/400 nF/4/40/200 mF ±3.0%
Diode, transistor test yes
Data Hold yes
Display illumination yes
Power source AAA (1.5 V) × 3
Dimensions 195 × 92 × 55 mm
Read more
Description

Digital multimeter Mastech MS8268 supports relative measurement mode (REL). This device meets the IEC1010-1 CAT II 1000V/ CAT III 600V requirements. Digital multimeter Mastech MS8268 is equipped with 3¾-digits illuminated LCD with 3999 counts maximum value. The multimeter is supplied with self-repair safety device for overload breaking and short circuit protection.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

Technical Specifications

Counts 3999
DC voltage  400 mV/4/40/400 V ±0.7%, 1000 V ±0.8%
AC voltage 400 mV/4/40/400 V ±0.8%, 750V ±1.0%
DC current  4/40/400 mA ±1.2%, 10 A ±2.0%
AC current  4/40 mA/400 mA ±1.5%, 10 A ±3.0%
Frequency 10/100/1000 Hz/10/200 kHz ±2.0%
Resistance 400Ω /4/400kΩ /4MΩ ±1.2% 40MΩ ±2.0%
Transistors current gain rate up to 1000
Capacitance 4nF ±5.0%, 40/400 nF/4/40/200 mF ±3.0%
Diode, transistor test yes
Data Hold yes
Display illumination yes
Power source AAA (1.5 V) × 3
Dimensions 195 × 92 × 55 mm
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
  • frequency
  • porosity
Additional Functions
  • acoustic continuity test
  • data hold
  • automatic shutdown/sleep mode
  • indication of proper connection of test leads
  • relative measurements
  • diode test
  • transistors test
  • backlight
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 1000 V
AC Voltage
  • up to 750 V
Resistance
  • up to 40 MOhm
Capacitance
  • up to 200 μF
Frequency
  • up to 200 kHz
DC
  • up to 10 A
AC
  • up to 10 A
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • yes
True RMS
  • no
Backlight
  • yes
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
Battery Testing
  • no
