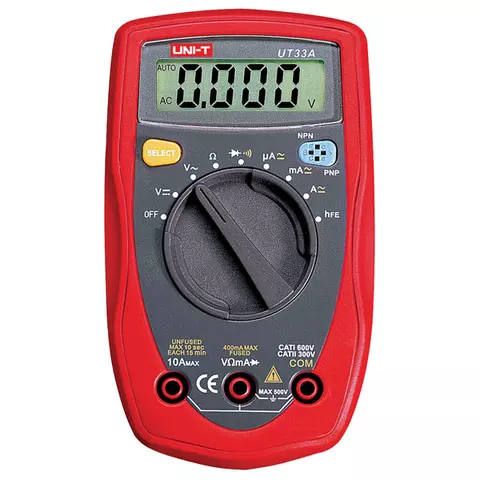

Digital Multimeter UNI-T UT33A

id: 834626
Digital Multimeter UNI-T UT33A
Overview
Description
Specifications
Video
Delivery
Payment
Warranty
Discontinued
Find substitute
Overview
0.3 kg Warranty: 24 months
Digital multimeter for measuring AC/DC voltage, AC/DC current, resistance, as well as diode, transistor and continuity tests with auto ranging function.
Discontinued
Find substitute
Compare
Compare
Discontinued
Find substitute
Impossible to estimate the shipping cost

You may also like

Pocket Digital Multimeter UNI T UT33A+
Add to wishlist
Pocket Digital Multimeter UNI-T UT33A+
USD 12.93
Add to wishlist
Add to cart
The device measures AC/DC voltage, AC/DC current, resistance and capacitance, and is used for diode check and continuity test.
Availability in stock: HK
Shipping cost
ID: 873656 0.8 kg
A reliable True RMS multimeter used to measure AC/DC voltage and current, capacitance, frequency, resistance, duty cycle, and temperature, and to perform diode and continuity tests.
Bestseller
New
Availability in stock: HK
Shipping cost
ID: 891577 0.4 kg
Pocket Digital Multimeter UNI T UT125C
Bestseller
Add to wishlist
Pocket Digital Multimeter UNI-T UT125C
USD 16.32
Add to wishlist
Add to cart
The multimeter with 4000 display counts and overload protection. It is an ideal tool for measuring AC/DC voltage and current, resistance, capacitance, frequency, diode and continuity.
Bestseller
Availability in stock: HK
Shipping cost
ID: 883712 0.25 kg
Description

UNI-T UT33A Digital Multimeter is a high-quality pocket digital multimeter powered using a 1.5 V battery. UNI-T UT33A multimeter is characterized by voltage, current, resistance measurements, as well as diode, continuity, transistor tests and auto ranging function.

UNI-T UT33A Digital Multimeter Features

  • Compact and lightweight pocket-size device.
  • LCD display.
  • Auto ranging.
  • Measurements:
    • AC voltage.
    • DC voltage.
    • AC current.
    • DC current.
    • Resistance.
    • Diode testing.
    • Transistor test.
    • Continuity test.
  • Continuity buzzer.
  • Battery power.
  • Low battery display.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT33A Digital Multimeter Technical Specifications

Function Range Accuracy
DC Voltage 400 mV/4 V/40 V/400 V/500 V ±(0.8%+1)
AC Voltage 4 V/40 V/400 V/500 V ±(1.2%+3)
DC Current 400 µA/4000 µA/40 mA/400 mA/4 A/10 A ±(1%+2)
AC Current 400 µA/4000 µA/40 mA/400 mA/4 A/10 A ±(1.5%+5)
Resistance 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1%+2)
Imput Impedance for DC Voltage Measurement ~ 10 MΩ
General Characteristics
Power 1.5 V Battery (AAA × 2)
Display LCD, 48 × 16 mm
Size 130 × 73.5 × 35 mm
Weight 156 g

UNI-T UT33A Digital Multimeter User Manual

Download UNI-T UT33A Digital Multimeter User Manual.

UNI-T UT33A Digital Multimeter Package Contents

  • UNI-T UT33A digital multimeter unit (1 pc.)
  • Test leads (2 pcs.)
  • Holster (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Read more
Description

UNI-T UT33A Digital Multimeter is a high-quality pocket digital multimeter powered using a 1.5 V battery. UNI-T UT33A multimeter is characterized by voltage, current, resistance measurements, as well as diode, continuity, transistor tests and auto ranging function.

UNI-T UT33A Digital Multimeter Features

  • Compact and lightweight pocket-size device.
  • LCD display.
  • Auto ranging.
  • Measurements:
    • AC voltage.
    • DC voltage.
    • AC current.
    • DC current.
    • Resistance.
    • Diode testing.
    • Transistor test.
    • Continuity test.
  • Continuity buzzer.
  • Battery power.
  • Low battery display.
  • Easy to connect and operate.
  • Electrical safety: EN61010-1, CATII600V/CATI1000V.

Video

Youtube video

You'll find even more video reviews in the Video tab. Go and check it out!

UNI-T UT33A Digital Multimeter Technical Specifications

Function Range Accuracy
DC Voltage 400 mV/4 V/40 V/400 V/500 V ±(0.8%+1)
AC Voltage 4 V/40 V/400 V/500 V ±(1.2%+3)
DC Current 400 µA/4000 µA/40 mA/400 mA/4 A/10 A ±(1%+2)
AC Current 400 µA/4000 µA/40 mA/400 mA/4 A/10 A ±(1.5%+5)
Resistance 400 Ω/4 kΩ/40 kΩ/400 kΩ/4 MΩ/40 MΩ ±(1%+2)
Imput Impedance for DC Voltage Measurement ~ 10 MΩ
General Characteristics
Power 1.5 V Battery (AAA × 2)
Display LCD, 48 × 16 mm
Size 130 × 73.5 × 35 mm
Weight 156 g

UNI-T UT33A Digital Multimeter User Manual

Download UNI-T UT33A Digital Multimeter User Manual.

UNI-T UT33A Digital Multimeter Package Contents

  • UNI-T UT33A digital multimeter unit (1 pc.)
  • Test leads (2 pcs.)
  • Holster (1 pc.)
  • Battery (1 pc.)
  • User manual (1 pc.)
Specifications
Type
  • digital
Measured Values
  • DC voltage
  • AC voltage
  • AC
  • DC
  • resistance
Additional Functions
  • acoustic continuity test
  • diode test
  • transistors test
Range Selection
  • auto range
Digit Capacity
  • 3999
DC Voltage
  • up to 500 V
AC Voltage
  • up to 500 V
Resistance
  • up to 40 MOhm
DC
  • up to 10 A
AC
  • up to 10 A
Capacitance
  • does not measure the capacitance
Frequency
  • does not measure the frequency
Inductance
  • no
Temperature
  • no
Power
  • no
Duty cycle
  • no
True RMS
  • no
Backlight
  • no
PC connection
  • no connection to PC
Diode test
  • yes
Analog bar graph
  • no
Transistor check
  • yes
Continuity test
  • yes
NCV
  • no
Battery Testing
  • no
Video
Youtube video
Youtube video
