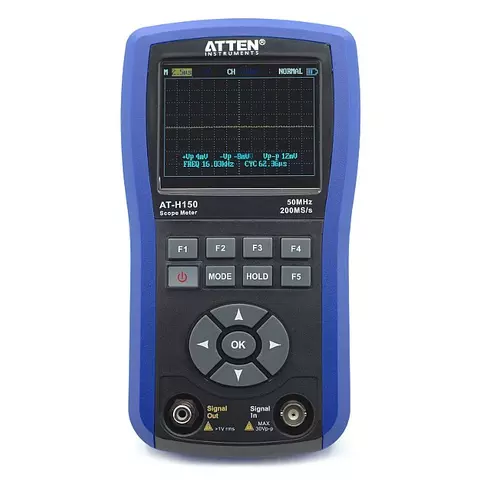

Digital Oscilloscope ATTEN AT-H150

id: 846655
1 kg 110, 220 V Warranty: 12 month (s)
Handheld digital oscilloscope with 50 MHz bandwidth & 200 M Sa/s sample rate.
USD 290.00
Contact
sales team
USD 290.00
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

ATTEN AT-H150 digital oscilloscope is a high-quality handheld digital oscilloscope (50 MHz) with built-in 10 Hz ~ 156 kHz function signal generator. This compact lightweight digital oscilloscope was specially designed for easy and quick on-site testing and diagnostic operations.

ATTEN AT-H150 digital oscilloscope is ideal for household applications, as well as production tests, field service, research, design and all other applications involving circuit tests and troubleshooting.

Features

  • Bandwidth: 50 MHz.
  • Built-in function signal generator: 10 Hz ~ 156 kHz
  • Sample rate: 200 M Sa/s.
  • 3.5 inch LED back-lit color display.
  • Auto measurement function.
  • Auto zero calibration.
  • Ability to save & reproduce up to 40 waveforms.
  • Auto power-off function (10 min).
  • 1600 mAh rechargeable Li battery.
  • Battery lifetime: 3 hours.
  • External AC power supply.
  • Built-in clock and calendar.
  • Comfortable keypad.
  • Compact design, small dimensions, light weight.

Technical Specifications

Bandwidth 50 MHz
Sample rate 200 M Sa/s
Function signal generator 10 Hz ~ 156 kHz
Input DC, AC
Vertical sensitivity range 10 mV/div – 50 V/div
Vertical sensitivity accuracy ± (5% + 0.1 div)
Sweep rate 5 ns/div – 2.5 s/div
Time base accuracy ± (0.01% + 0.1 div)
Auto mersuring accuracy ± (5% + 0.1 div)
Trigger mode Normal, Single
Waveform storage 40
Waveform interpolation (Sinx)/x
Battery Li, 1600 mAh
Battery lifetime 3 hours
Recharge time > 4 hours
Display 3.5" (320×240)

Package Contents

  • ATTEN AT-H150 digital oscilloscope (1 pc.)
  • Probe (1 pc.)
  • Output cable (1 pc.)
  • Power supply (1 pc.)
  • Bag (1 pc.)
  • User manual (1 pc.)
Specifications
Screen Size
  • 2.8" TFT display
Number of channels
  • single-channel
Bandwidth
  • 50 MHz
Type
  • portable
  • with built-in generator
Sample Rate
  • 200 MSa/s
Storage Capacity
  • 12 KB
