Energy and Power Quality Analyzer UNI-T UT283A
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
1.5 kg Warranty: 24 months
Powerful single phase instrument designed for analyzing the energy and power quality of power systems. Read more
Discontinued
Description

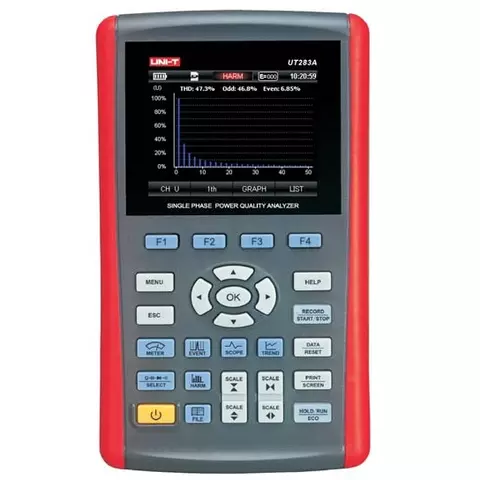

UNI-T UT283A is a powerful single phase instrument designed for analyzing the energy and power quality of power systems.
Features
- Easy setup
- True RMS instrument
- Built-in 3.5-inch color TFT LCD (320 x 240)
- Low battery indication
- Backlight adjustment
- Input protection
Technical Specifications
| Parameter | Range | Accuracy |
|---|---|---|
| Vrms | 10~1000 V | ±0.5% |
| Arms | 10 / 100 / 1000 A | ±0.5% |
| Frequency | 40~70 Hz | ±50 mHz |
| Power | >15% S | ±1% S |
| Power factor | 0~1.0 | ±0.02 |
| Energy | 0～9999 MWh | ±1.5% |
| Crest factor | 1.0 to 10.0 | ±5% |
| Voltage harmonics or Interharmonics |
|
|
| Current harmonics or Interharmonics |
|
|
| Dip / Swell / Interrupt | 0~1000 V AC | Udin ±1% |
| General | ||
| Power | Li-battery 7.4 V, 3600 mAh | |
| Display | 3.5-inch color TFT LCD (320 x 240) | |
| Size | 199 × 118 × 49 mm | |
| Weight | 808 g | |
Package Contents
- UNI-T UT283A Energy and Power Quality Analyzer – 1 pc.
- Power adaptor - 1 pc.
- Test lead - 1 pc.
- Current clamp (10 A / 100 A / 1000 A) – 1 pc.
- USB cable – 1 pc.
- Software CD - 1 pc.
- User manual - 1 pc.
