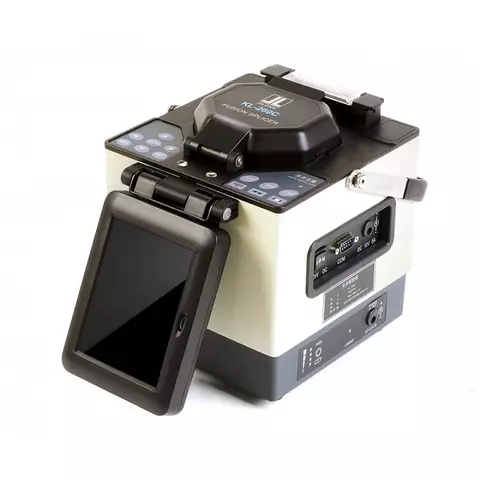

Fusion Splicer Jilong KL-260C

id: 832711
Fusion Splicer Jilong KL-260C
Overview
Description
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
11 kg 110, 220 V Warranty: 12 months
Fusion splicer, which can work with any type of fiber-optic communication lines. Reliable, simple to operate, automatic.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Jilong KL-260C is a very reliable, simple to operate, automatic fusion splicer, which can work with any type of fiber-optic communication lines. This offer provides superior quality at an affordable price.

Jilong KL-260C Fusion Splicer Features

  • Large multiple and visible fiber core
  • Both X and Y axis display
  • Built in backlight
  • Automatic end-face of fiber check
  • Automatic splicing loss calculation
  • Automatic fusion program selection
  • Small bulk and light weight

Jilong KL-260C Fusion Splicer Technical Specifications

Applicable fibers
  • singlemode 4-14 μm (ITU-T G.652)
  • multimode 50,62.5 μm (ITU-T G.651)
  • silex-fiber 125 μm outer diameter (standard)
Coating diameter 100 - 1000 µm
Cleave length 8-16 mm (standard)
Average splice loss
  • Single mode fiber: Typ. 0.02 dB
  • Multi mode fiber: Typ. 0.01dB
Return loss ≥ 60 dB
Average splice time typ. 10 seconds
Protection sleeve length 40 mm, 60 mm
Battery / charger AC: 100-220 V, 50/60 Hz, 30 W
DC adaptor 10-14 V 25 W, optional multipurpose external battery
Types of splicing mode Auto & Manual
Splicing programs SM, MM, DS, NZ-DS
Heater Optional outer heater (can heat 4 protecting sleeves at same time)
Storage of splice results 5000 splice results in the internal memory
Interface RS232 interface
Display 5 inch LCD
Operation conditions -10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 4000 m (altitude)
Storage environment -40 ~ 60 °C (temperature), 0 ~ 95% (humidity)
Dimensions 172 × 180 × 145 mm
Weight 4.6 kg

Jilong KL-260C Fusion Splicer Packaging

  • Jilong KL-260C fusion splicer (1 pc.)
  • Power adaptor (1 pc.)
  • AC power cord (1 pc.)
  • Battery (1 pc.)
  • Precision fiber cleaver (1 pc.)
  • Spare electrode (1 pair)
  • Carrying case (1 pc.)
  • Instruction manual (1 pc.)
  • Tray (1 pc.)
  • Clauss CFS-2 stripper (1 pc.)
  • Carrying case shoulder strap (1 pc.)
Read more
Description

Jilong KL-260C is a very reliable, simple to operate, automatic fusion splicer, which can work with any type of fiber-optic communication lines. This offer provides superior quality at an affordable price.

Jilong KL-260C Fusion Splicer Features

  • Large multiple and visible fiber core
  • Both X and Y axis display
  • Built in backlight
  • Automatic end-face of fiber check
  • Automatic splicing loss calculation
  • Automatic fusion program selection
  • Small bulk and light weight

Jilong KL-260C Fusion Splicer Technical Specifications

Applicable fibers
  • singlemode 4-14 μm (ITU-T G.652)
  • multimode 50,62.5 μm (ITU-T G.651)
  • silex-fiber 125 μm outer diameter (standard)
Coating diameter 100 - 1000 µm
Cleave length 8-16 mm (standard)
Average splice loss
  • Single mode fiber: Typ. 0.02 dB
  • Multi mode fiber: Typ. 0.01dB
Return loss ≥ 60 dB
Average splice time typ. 10 seconds
Protection sleeve length 40 mm, 60 mm
Battery / charger AC: 100-220 V, 50/60 Hz, 30 W
DC adaptor 10-14 V 25 W, optional multipurpose external battery
Types of splicing mode Auto & Manual
Splicing programs SM, MM, DS, NZ-DS
Heater Optional outer heater (can heat 4 protecting sleeves at same time)
Storage of splice results 5000 splice results in the internal memory
Interface RS232 interface
Display 5 inch LCD
Operation conditions -10 ~ 50 °C (temperature), 0 ~ 95% (humidity), 0 ~ 4000 m (altitude)
Storage environment -40 ~ 60 °C (temperature), 0 ~ 95% (humidity)
Dimensions 172 × 180 × 145 mm
Weight 4.6 kg

Jilong KL-260C Fusion Splicer Packaging

  • Jilong KL-260C fusion splicer (1 pc.)
  • Power adaptor (1 pc.)
  • AC power cord (1 pc.)
  • Battery (1 pc.)
  • Precision fiber cleaver (1 pc.)
  • Spare electrode (1 pair)
  • Carrying case (1 pc.)
  • Instruction manual (1 pc.)
  • Tray (1 pc.)
  • Clauss CFS-2 stripper (1 pc.)
  • Carrying case shoulder strap (1 pc.)
