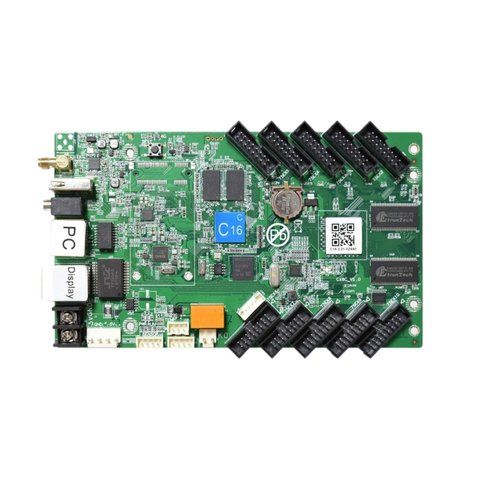

Huidu HD-C16C LED Display Module Control Card (384x320, 10 x HUB75E, with Wi-Fi Module)

id: 904850
New
0.1 kg Warranty: 12 month (s)
This card is used to control full color LED displays via LAN. It can display text, images and video of different formats.
Price coming soon
Contact
sales team
Price coming soon
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Delivery
Payment
Warranty
Overview

This card is used to control LED displays via LAN/Wi-Fi. It can display text, as well as videos and images of different formats. The device supports U-Disk drive connection, which, in turn, grants virtually indefinite storage memory. 3G or 4G modules can be connected to the control card for control via corresponding type of network.

Download user manual

Technical Specifications

LED display sizes 384 x 320
Built-in memory 4 GB
Supported modules Full color
Supported video formats AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc.
Number of HUB inputs 10 × HUB75E
Supported sensors Temperature, humidity, brightness, IR
Connection type LAN / built-in Wi-Fi module
Voltage 5 V
Power 8 W
Operating temperature -20°C~80°C

Package Content:

  • HD-C16C LED Display Module Control Card - 1 pc.
