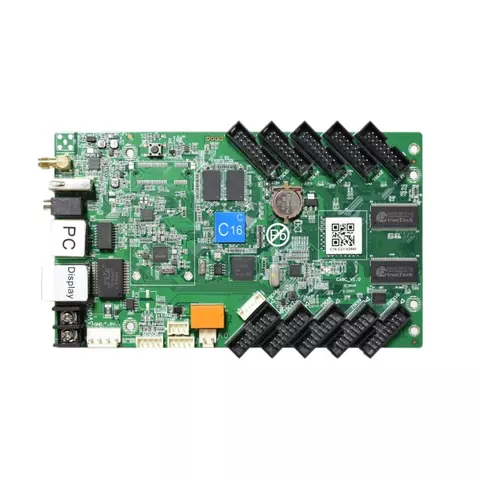

Huidu HD-C16C LED Display Module Control Card (640x320, 10xHUB75E, with Wi-Fi Module)
id: 904850
Huidu HD-C16C LED Display Module Control Card (640x320, 10xHUB75E, with Wi-Fi Module)
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
0.1 kg Warranty: 12 months
This card is used to control full color LED displays via LAN. It can display text, images and video of different formats. Read more
Discontinued
Description
This card is used to control LED displays via LAN/Wi-Fi. It can display text, as well as videos and images of different formats. The device supports U-Disk drive connection, which, in turn, grants virtually indefinite storage memory. 3G or 4G modules can be connected to the control card for control via corresponding type of network.
Technical Specifications
| LED display size | 640x320 |
| Built-in memory | 4 GB |
| Supported modules | Full color |
| Supported video formats | AVI, WMV, MP4, 3GP, ASF, MPG, FLV, F4V, MKV, MOV, DAT, VOB, TRP, TS, WEBM, etc. |
| Number of HUB inputs | 10 × HUB75E |
| Supported sensors | Temperature, humidity, brightness, IR |
| Connection type | LAN / built-in Wi-Fi module |
| Voltage | 5 V |
| Power | 8 W |
| Operating temperature | -20°C~80°C |
Package Content:
- HD-C16C LED Display Module Control Card - 1 pc.
