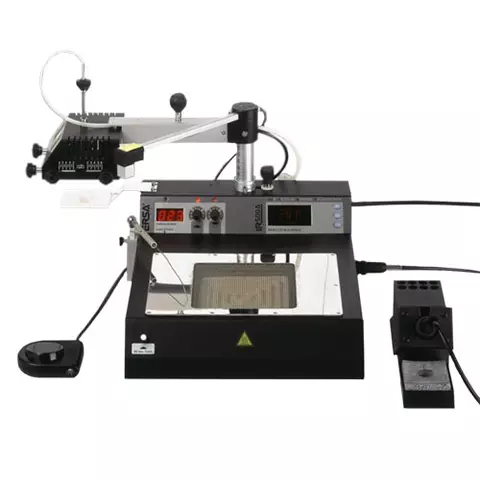

Infrared Soldering Station ERSA IR500A

id: 821642
220 V Warranty: 12 month (s)
ERSA IR500A Infrared Soldering Station - functional and affordable equipment for work with components sized 10 to 55 mm, such as BGA chipsets and fine pitch QFPs.
Discontinued
Contact
sales team
Discontinued
Contact
sales team
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Delivery
Payment
Warranty
Overview

ERSA IR500A Infrared Soldering Station – functional and affordable equipment for work with components sized 10 to 55 mm, such as BGA chipsets and fine pitch QFPs. This rework station enables connecting additional tools: coppers (20W, 60W or 80W), thermal tweezers and CU100A vacuum desoldering tool.

Features

  • LED laser pointer for exact positioning on the work area
  • Microprocessor controlling and automatic tool definition
  • Temperature adjustment for specific soldering bits and tips
  • Analog temperature control
  • Improved plate holder
  • High thermostability

Advantages

  • Powerful and independent system (does not require external compressing unit and nozzles)
  • Compact and antistatic solution
  • Also works with complex plastic components

Technical Specifications

Top IR Heater Power 200 W
Bottom IR Heater Power 400 W
Average Consumed Power 460 W
Heating Temperatures Range 50–450 °C
Temperature Precision 1–2 °C
Wavelength 2–8 µm
Power Voltage 220/230 V, 60 Hz
Cable Length 2 m
Dimensions 300 × 380 × 220 mm
Top IR Heater Size 20 × 20 mm to 60 × 60 mm
Bottom IR Heater Size 120 × 120 mm
Weight 7 kg

Package

  • Main unit — 1 pc.
  • Frame holder for circuit plates — 1 pc.
  • Power cord — 1 pc.
  • Temperature sensor — 1 pc.
  • TechTool soldering iron — 1 pc.
  • K-type thermocouple — 1 pc.
  • Laser pointer with fixation nod, two studs and screw — 1 pc.
  • A29 holder for soldering iron — 1 pc.
  • Vacuum manipulator switch — 1 pc.
  • Changeable silicone cups for vacuum manipulator
    • 8 mm in diameter — 2 pcs.
    • 5 mm in diameter — 1 pc.
  • User manual — 1 pc.
  • Safety manual — 1 pc.
  • MICRO-CON 60iA user manual — 1 pc.
Specifications
Upper Heater Size
  • 6x6 cm
Bottom heater size
  • 12x12 cm
Heater Type
  • with ceramic emitter
Control type
  • microcontroller / PC synchronization
Upper heater type
  • ceramic
Bottom heater type
  • ceramic
Upper heater power
  • 400 W
Total power
  • 1600 W
