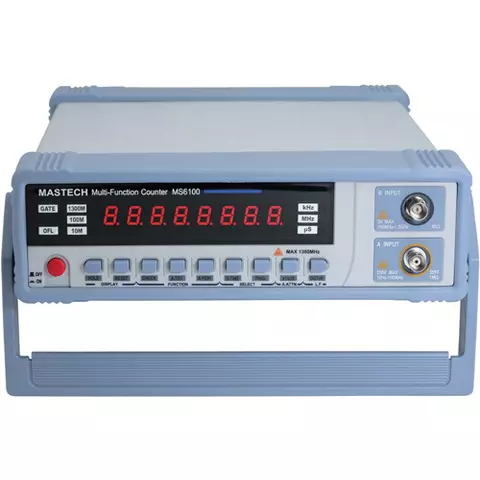

MASTECH MS6100 Frequency counter
sales team
This is an intelligentized multiple function counter. It is controlled by an 8-bit micro-controller and with eight-digit LED high bright display. Four measuring functions of frequency, period, totalize and self-check are involved in this counter. Moreover, there is a 10MHz OSC out. Two kinds of power 110VAC and 220VAC can be supplied to the instrument. User can conveniently select it. The instrument has been designed according to IEC 1010-1 concerning safety requirements.
- Channel A: Range 10/100MHz
- Channel B: 100MHz to 1.3GHz
- Accuracy: B±1 count, B±time base error x frequency
- Time base error: Frequency: 8MHz
- Long time stabitity: B±1 x 10-5
- Short time stabitity: B±5 x 10-6
- Range: 0.1s to 0.1Bµs (10Hz to 10MHz)
- Accuracy: B±1 count, B±time base error x period
- Range: 10Hz to 10MHz
- Data hold
- Self check
- 10MHz OSC. out
- Power: 110/220VAC
- Size: 300mm x 260mm x 74mm
- Weight: Approx. 1850g
Frequency measurements:
Period measurements:
Totalize measurements:
This is an intelligentized multiple function counter. It is controlled by an 8-bit micro-controller and with eight-digit LED high bright display. Four measuring functions of frequency, period, totalize and self-check are involved in this counter. Moreover, there is a 10MHz OSC out. Two kinds of power 110VAC and 220VAC can be supplied to the instrument. User can conveniently select it. The instrument has been designed according to IEC 1010-1 concerning safety requirements.
- Channel A: Range 10/100MHz
- Channel B: 100MHz to 1.3GHz
- Accuracy: B±1 count, B±time base error x frequency
- Time base error: Frequency: 8MHz
- Long time stabitity: B±1 x 10-5
- Short time stabitity: B±5 x 10-6
- Range: 0.1s to 0.1Bµs (10Hz to 10MHz)
- Accuracy: B±1 count, B±time base error x period
- Range: 10Hz to 10MHz
- Data hold
- Self check
- 10MHz OSC. out
- Power: 110/220VAC
- Size: 300mm x 260mm x 74mm
- Weight: Approx. 1850g
Frequency measurements:
Period measurements:
Totalize measurements:
| Max. frequency |
|
