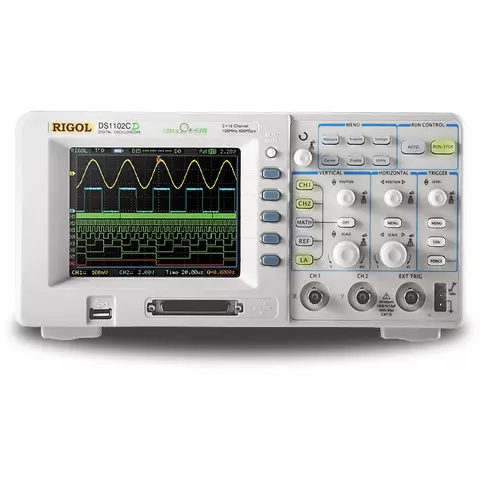

Mixed Signal Oscilloscope RIGOL DS1102CD

id: 810624
Mixed Signal Oscilloscope RIGOL DS1102CD
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
4.6 kg 110, 220 V Warranty: 36 months
5.7’ 64K TFT color LCD, bright and vivid waveform display. 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent sample rate.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Application

  • Design and Debug
  • Education & Training
  • Manufacturing
  • Service & Repair

Advanced Features

  • A true Mixed Signal Oscilloscope with 2 analog and 16 digital channels
  • Ultra compact design, small dimensions, to save your desktop space
  • 5.7’ 64K TFT color LCD, bright and vivid waveform display
  • Memory depth: 1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer)
  • Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity: Filters noise from the trigger signal to avoid false triggers
  • 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure Modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Dual channels plus external trigger Bandwidth including
  • 25 MHz, 40 MHz, 60 MHz, 100 MHz
  • Standard interface: USB Device, RS-232;USB Host, to support USB flash memory and USB printer
  • Standard Configuration includes Pass/Fail testing
  • Multi-language user interface, built-in help system

Comparative Specifications

Model DS1022C DS1042C DS1062C DS1102C
Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Memory Depth 1M points (Single Channel), 512K points (Dual Channels)
Channels Dual Channels + External Trigger
Real-time Sample Rate 400 MSa/s
Equivalent Sample Rate 25 GSa/s
Rise Time 14 ns 8,7 ns 5.8 ns 3.5 ns
Time Base Range 20 ns/div to 50 s/div 10 ns/div to 50 s/div 5 ns/div to 50 s/div
X-Y Operation Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Phase Difference ± 3
Trigger Modes Edge, Video, Pulse Width, Slope, Alternative
Trigger Sources CH1,CH2,Ext,Ext/5,AC Line

Model DS1022CD DS1042CD DS1062CD DS1102CD
Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Memory Depth 1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer)
Channels Dual Channels + External Trigger + Logic Analyzer
Real-time Sample Rate 400 MSa/s, 200 MSa/s (Logic Analyzer)
Equivalent Sample Rate 25 GSa/s
Rise Time 14 ns 8.7 ns 5.8 ns 3.5 ns
Time Base Range 20 ns/div to 50 s/div 10 ns/div to 50 s/div 5 ns/div to 50 s/div
Voltage Level Standards (Logic Analyzer) TTL = 1.4 V, CMOS = 2.5 V, ECL = - 1.3 V, USER = - 8.0 V to + 8.0 V
X-Y Operation Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Phase Difference ± 3
Trigger Modes Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
Trigger Sources CH1, CH2, Ext, Ext/5, AC Line, D0 to D15

Technical Specifications

Common Parameters
Input Impedance 1 MO || 15 pF
Vertical Sensitivity 2 mV/div to 5 V/div
Vertical Resolution 8 bits
Input Coupling DC, AC, Ground
Maximum Input Voltage 400 V (DC + AC peak)
Roll Range 500 ms/div to 50 s/div
Automatic Measurements Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay
Cursor Measurements Manual, Track and Auto Measure modes
Math Add, Subtract, Multiply, FFT, Invert
Storage Internal:10 Waveforms and 10 Setups
USB, BMP, CSV, Waveforms and Setups
I/O USB Device, USB Host, RS-232, P/F Out (Isolated)
Display TFT (64K, Color LCD), 320 x 234
Power Worldwide Use, 100 – 240 V / 50 VA Max
Weight 2.3 kg
Read more
Description

Application

  • Design and Debug
  • Education & Training
  • Manufacturing
  • Service & Repair

Advanced Features

  • A true Mixed Signal Oscilloscope with 2 analog and 16 digital channels
  • Ultra compact design, small dimensions, to save your desktop space
  • 5.7’ 64K TFT color LCD, bright and vivid waveform display
  • Memory depth: 1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer)
  • Versatile trigger modes: Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
  • Adjustable trigger sensitivity: Filters noise from the trigger signal to avoid false triggers
  • 400 MSa/s maximum real-time sample rate and 25 GSa/s maximum equivalent time sample rate
  • 20 automatic measurements
  • Cursor measurements: Manual, Track and Auto Measure Modes
  • 10 waveforms, 10 setups, BMP and CSV storage
  • Math functions: Add, Subtract, Multiply, FFT, Invert
  • Automatic self calibration
  • Special digital filter and waveform recorder
  • Built-in hardware frequency counter
  • Dual channels plus external trigger Bandwidth including
  • 25 MHz, 40 MHz, 60 MHz, 100 MHz
  • Standard interface: USB Device, RS-232;USB Host, to support USB flash memory and USB printer
  • Standard Configuration includes Pass/Fail testing
  • Multi-language user interface, built-in help system

Comparative Specifications

Model DS1022C DS1042C DS1062C DS1102C
Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Memory Depth 1M points (Single Channel), 512K points (Dual Channels)
Channels Dual Channels + External Trigger
Real-time Sample Rate 400 MSa/s
Equivalent Sample Rate 25 GSa/s
Rise Time 14 ns 8,7 ns 5.8 ns 3.5 ns
Time Base Range 20 ns/div to 50 s/div 10 ns/div to 50 s/div 5 ns/div to 50 s/div
X-Y Operation Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Phase Difference ± 3
Trigger Modes Edge, Video, Pulse Width, Slope, Alternative
Trigger Sources CH1,CH2,Ext,Ext/5,AC Line

Model DS1022CD DS1042CD DS1062CD DS1102CD
Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Memory Depth 1M points (Single Channel), 512K points (Dual Channels), 512K points (Logic Analyzer)
Channels Dual Channels + External Trigger + Logic Analyzer
Real-time Sample Rate 400 MSa/s, 200 MSa/s (Logic Analyzer)
Equivalent Sample Rate 25 GSa/s
Rise Time 14 ns 8.7 ns 5.8 ns 3.5 ns
Time Base Range 20 ns/div to 50 s/div 10 ns/div to 50 s/div 5 ns/div to 50 s/div
Voltage Level Standards (Logic Analyzer) TTL = 1.4 V, CMOS = 2.5 V, ECL = - 1.3 V, USER = - 8.0 V to + 8.0 V
X-Y Operation Bandwidth 25 MHz 40 MHz 60 MHz 100 MHz
Phase Difference ± 3
Trigger Modes Edge, Video, Pulse Width, Slope, Alternative, Pattern and Duration
Trigger Sources CH1, CH2, Ext, Ext/5, AC Line, D0 to D15

Technical Specifications

Common Parameters
Input Impedance 1 MO || 15 pF
Vertical Sensitivity 2 mV/div to 5 V/div
Vertical Resolution 8 bits
Input Coupling DC, AC, Ground
Maximum Input Voltage 400 V (DC + AC peak)
Roll Range 500 ms/div to 50 s/div
Automatic Measurements Vpp, Vamp, Vmax, Vmin, Vtop, Vbase, Vavg, Vrms, Preshoot, Overshoot, Frequency, Period, Rise Time, Fall time, Positive Width, Negative Width, Positive Duty Cycle, Negative Duty Cycle, Delay
Cursor Measurements Manual, Track and Auto Measure modes
Math Add, Subtract, Multiply, FFT, Invert
Storage Internal:10 Waveforms and 10 Setups
USB, BMP, CSV, Waveforms and Setups
I/O USB Device, USB Host, RS-232, P/F Out (Isolated)
Display TFT (64K, Color LCD), 320 x 234
Power Worldwide Use, 100 – 240 V / 50 VA Max
Weight 2.3 kg
Specifications
Screen Size
  • 5.6" TFT display
Number of channels
  • dual-channel
  • with 16 channel logic analyzer
Storage Capacity
  • 1 MB
Bandwidth
  • 100 MHz
Type
  • desktop
  • mixed-signal
Sample Rate
  • 400 MSa/s
