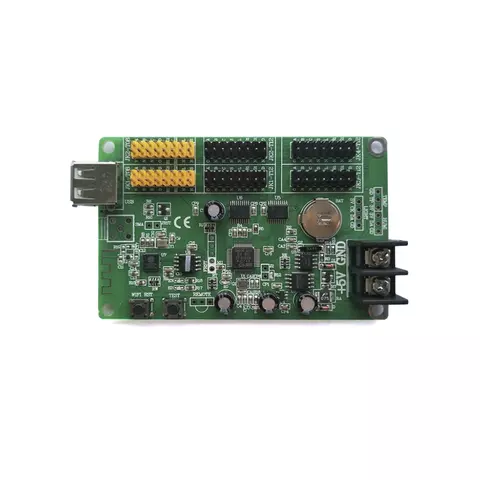

Onbon BX-5A1 LED Display Module Control Card (2048×16, 1024×32, 672×48, 512×64)
id: 883902
Onbon BX-5A1 LED Display Module Control Card (2048×16, 1024×32, 672×48, 512×64)
Overview
Description
Delivery
Payment
Warranty
Discontinued
Overview
0.15 kg Warranty: 12 months
This card is used to control full color LED displays via Ethernet or Wi-Fi. It can display text, images and video of different formats. Read more
Discontinued
Description
This card is used to control LED displays via Ethernet or Wi-Fi. It can display text, as well as videos and images of different formats. The device offers simple installation and convenient control. It also supports online software update.
Technical Specifications
| LED display sizes | 32K: 2048×16, 1024×32, 672×48, 512×64 |
| 16K: 1024×16, 512×32, 336×48, 256×64 | |
| Maximum distance for transferring data | 200 m (100 m recommended) |
| Supported modules | monochrome/bichrome |
| Number of HUB inputs | 2 × HUB08 |
| 4 × HUB12 | |
| Sensitivity | 802.11b: -89 dBm; 802.11g: -81 dBm; 802.11n: -71 dBm |
| Antenna | standard 2.4 GHz antenna |
| Operating frequency | 2.412-2.484 GHz |
| Connection type | 100M Ethernet / Wi-Fi (802.11 b/g/n) |
| Voltage | 3.5-6 V |
| Power | <2.5 W |
| Operating temperature | -30°C~70°C |
