Optical Time Domain Reflectometer Yokogawa AQ7275 735034

Name: Optical Time Domain Reflectometer Yokogawa AQ7275 735034
Brand: YOKOGAWA
SKU: 835814
Price: 12000.00 USD
Availability: OutOfStock

id: 835814

Overview

Description

Specifications

Delivery

Payment

Warranty

Discontinued

Overview

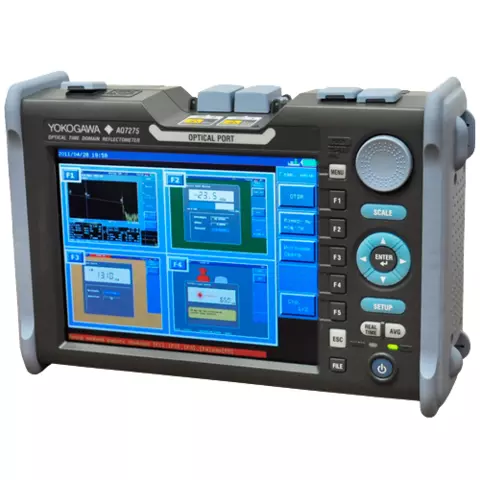

Optical Time Domain Reflectometer Yokogawa AQ7275 735034

Brand: YOKOGAWA

9 kg 110, 220 V Warranty: 12 months

Handheld Optical Time Domain Reflectometer with 1310/1550 nm wavelength (single-mode) and 43/41 dB dynamic range (single-mode). Read more

Discontinued

Impossible to estimate the shipping cost

Description

Yokogawa AQ7275 735034 Optical Time Domain Reflectometer is a fully-functional handheld OTDR with high dynamic range and short dead zone. The reflectometer operation is comfortable and efficient due to the easy to use software, pass/fail analysis and the ability to save configuration setups. A quick 10-second startup helps to minimize operation time.

Yokogawa AQ7275 OTDR is perfect for use in a wide variety of optical fiber installation, maintenance and repair applications. The device may be used for various optic fiber networks including FTTH, RFoG, PON, Access, Metro and Core networks.

Yokogawa AQ7275 735034 Optical Time Domain Reflectometer Features

Compact and lightweight handheld device.
Wavelength: 1310/1550 nm (single-mode).
Dynamic range: 43/41 dB (single-mode).
Short Dead Zone: 0.8 m.
Pass/Fail analysis.
Displays up to eight digits of the relative one-way direction between two arbitrary points on the trace.
Displays one-way loss in steps of 0.001 dB to a maximum of 5 digits.
Displays the one-way loss, loss per unit length, and splice loss between any arbitrary points on the trace.
Measures return loss and total return loss of a fiber cable or between two arbitrary points on the trace.
Battery power supply, 6 hours battery life.
USB interface.
Internal memory and USB storage.
8.4-inch color TFT LCD.
Standards:
- Laser: Class 1 M (IEC 60825-1:1993 + A2:2001); 21CFR1040.10.
- Safety: EN61010-1.
- Emission: EN61326-1 Class A; EN55011 Class A Group 1.
- Immunity: EN61326-1 Table 2.

Yokogawa AQ7275 735034 Optical Time Domain Reflectometer User Manual

Download Yokogawa AQ7275 735034 Optical Time Domain Reflectometer User Manual.

Download Download YOKOGAWA AQ7275 (735034) Data Sheet.

Yokogawa AQ7275 735034 Optical Time Domain Reflectometer Technical Specifications

Optical Time Domain Reflectometer
Wavelength	1310/1550 nm (± 25 nm)
Dynamic range	43/41 dB
Applicable ﬁber	Single-mode (ITU-T G.652)
Event dead zone	0.8 m (max.)
Attenuation dead zone	7 m (typ.) @ 1310 nm, 8 m (typ.) @1550 nm
Light source	–5 dBm or more (±0.1 dB)
Optical power monitor	–50 dBm to –5 dBm (±0.5 dB)
Distance range	500 m, 1 km, 2 km, 5 km, 10 km, 20 km, 50 km, 100 km, 200 km, 300 km, 400 km, 512 km
Pulse width	3 ns, 10 ns, 20 ns, 50 ns, 100 ns, 200 ns, 500 ns, 1 µs, 2 µs, 5 µs, 10 µs, 20 µs
Horizontal Axis Parameters
Sampling resolution	5 cm, 10 cm, 20 cm, 50 cm, 1 m, 2 m, 4 m, 8 m, 16 m, 32 m
Readout resolution	1 cm (Min.)
Sampling Points	Up to 50,000
Group refractive index	1.30000 to 1.79999 (0.00001 step)
Units	km, kf or miles
Vertical Axis Parameters
Vertical axis scale	0.2 dB/div, 0.5 dB/div, 1 dB/div, 2 dB/div, 5 dB/div, 7.5 dB/div
Readout resolution	0.001 dB (Min.)
Data Storage
File Formats	Read: SOR, TRD, TRB, SET (AQ7270/75) Write: SOR (Telcordia), SET, CSV, BMP, JPG, PNG
Storage Capacity	Internal: ~1000 waveforms; External via USB
General
Display	8.4-inch color TFT LCD (640 × 480)
Power supply	Battery: 10.8 V, 2100 mAh AC power adapter: 100 to 240 V, 50/60 Hz
Battery operation	6 hours
Recharge Time	5 hours
Power consumption	70 W (max.)
Interface	USB 1.1; LAN (optional)
Operating Temperature	0°C to +45 °C
Size	287 × 197 × 85 mm
Weight	2.8 kg
