Overview
Brand: SUNKKO
3.05 kg 220 V Warranty: 6 months
digital leadfree soldering station designed for assembling/dismantling
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

Sunkko 942+ – digital leadfree soldering station designed for assembling/dismantling.

Features

  • Soldering station consists of main unit and soldering iron with ceramic heating element. Digital microcontroller provides control unit full functionality. Automatic heating element type identification and operating temperature calculation of soldering iron, compatible with 3 types of electronic heaters.
  • Switch on/off button, soldering iron connector, 3-digits display, buttons to set operating modes and slot for special magnetic block-key of station operating settings are located on the front panel of the  main unit.
  • Power cord slot with fuse is on the back panel of the main unit.
  • "Sleep mode" when standby for 30 minutes to prolong operating life of the heater.
  • Magnetic block-key is purpose-built magnetic card to prevent temperature settings and other changes by mistake. To ensure stability of soldering station the stand is made from metal. On the base stand is a cleaning sponge deepening.
  • There is spare cleaning multi-purpose sponge with 57mm diameter and two semicircular cuts to set on the others stand models.
  • Standard soldering iron with one ceramic heating element and one replacement nozzle. Soldering iron is equipped with original Japanese or Chinese analogue heating element.

Technical Specifications

Soldering iron
Temperature range 200–450 °C
Power consumption 70W
Supply voltage 24 V, AC
Heating element ceramic, analogue
Replacement tip conic, analogue
Ground Resistance 2 Ω
Ground Potential 2 mV
Length  (w/o cord) 170 mm
Weight (with cord) 90 g
Main unit
Soldering iron temperature control discrete
Soldering iron temperature indication 3-digits
Settings protection Magnetic key-card
Power consumption 75 W (max)
Operating voltage 220V, 50 Hz
Fuse 1A × 220V
Dimensions 100 × 100 × 190 mm
Weight 2 kg

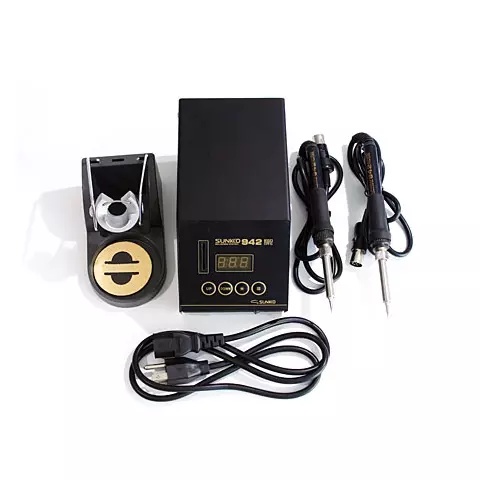

Contents

  • Main unit Sunkko 942+ – 1 pc.
  • Soldering iron Sunkko 942+ – 1 pc.
  • Soldering station stand – 1 pc.
  • Magnetic key-card for station settings blocking – 1 pc.
  • Power cord – 1 pc.
Read more
Description

Sunkko 942+ – digital leadfree soldering station designed for assembling/dismantling.

Features

  • Soldering station consists of main unit and soldering iron with ceramic heating element. Digital microcontroller provides control unit full functionality. Automatic heating element type identification and operating temperature calculation of soldering iron, compatible with 3 types of electronic heaters.
  • Switch on/off button, soldering iron connector, 3-digits display, buttons to set operating modes and slot for special magnetic block-key of station operating settings are located on the front panel of the  main unit.
  • Power cord slot with fuse is on the back panel of the main unit.
  • "Sleep mode" when standby for 30 minutes to prolong operating life of the heater.
  • Magnetic block-key is purpose-built magnetic card to prevent temperature settings and other changes by mistake. To ensure stability of soldering station the stand is made from metal. On the base stand is a cleaning sponge deepening.
  • There is spare cleaning multi-purpose sponge with 57mm diameter and two semicircular cuts to set on the others stand models.
  • Standard soldering iron with one ceramic heating element and one replacement nozzle. Soldering iron is equipped with original Japanese or Chinese analogue heating element.

Technical Specifications

Soldering iron
Temperature range 200–450 °C
Power consumption 70W
Supply voltage 24 V, AC
Heating element ceramic, analogue
Replacement tip conic, analogue
Ground Resistance 2 Ω
Ground Potential 2 mV
Length  (w/o cord) 170 mm
Weight (with cord) 90 g
Main unit
Soldering iron temperature control discrete
Soldering iron temperature indication 3-digits
Settings protection Magnetic key-card
Power consumption 75 W (max)
Operating voltage 220V, 50 Hz
Fuse 1A × 220V
Dimensions 100 × 100 × 190 mm
Weight 2 kg

Contents

  • Main unit Sunkko 942+ – 1 pc.
  • Soldering iron Sunkko 942+ – 1 pc.
  • Soldering station stand – 1 pc.
  • Magnetic key-card for station settings blocking – 1 pc.
  • Power cord – 1 pc.
Specifications
Power
  • 70 W
Heater type
  • ceramic
Control type
  • digital
Soldering iron voltage
  • 24 V
