Spectrum Analyzer OWON HSA1036-TG
id: 908406
Spectrum Analyzer OWON HSA1036-TG
Overview
Description
Specifications
Delivery
Payment
Warranty
Price coming soon
Contact
sales team
sales team
Overview
5.1 kg Warranty: 12 months
Features tracking generator, frequency range of 9 kHz to 3.6 GHz and a frequency resolution of 1 Hz. Measures small signals through the -160 dBm DANL Read more
Description

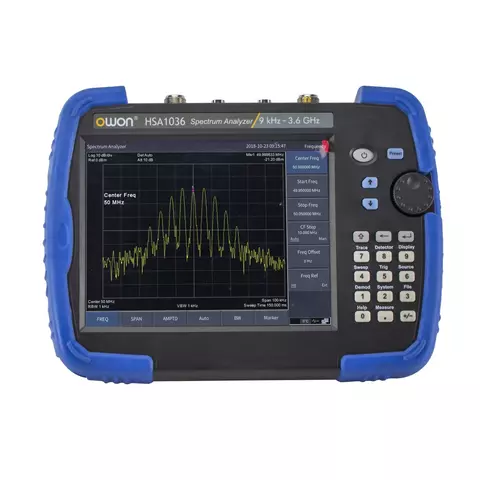

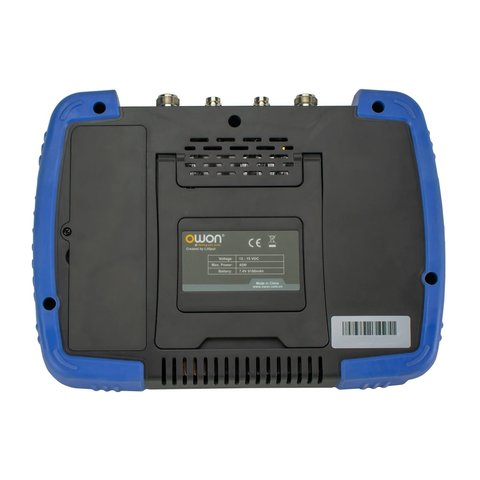

OWON HSA1036-TGis a spectrum analyzer with a frequency range of 9 kHz to 3.6 GHz and a frequency resolution of 1 Hz, equipped with a tracking generator. The tool can measure small signals with a sensitivity of up to -160 dBm DANL. The 8-inch (1024 × 768) IPS touchscreen with a wide viewing angle guarantees better vision and easier operation. The model also has a built-in light sensor that adjusts the background light in response to the ambient light.
The OWON HSA1036-TG is equipped with a pass/fail function that quickly detects whether the test results meet previously established criteria. It is a portable and easy-to-use device.
Features
- Provides EMI compliance testing functionality, with optional EMC test software
- Standard on-site test pass/fail notification capability
- 1.6 GHz/3.6 GHz tracking generator and a 3.6 GHz signal generator
- Standard GPS receiver, antenna, latitude/longitude information, and the possible recording of test information
- 8-inch IPS LCD touch screen with a wider viewing angle
- Li-ion rechargeable battery, providing up to 4-6 hours of operation time
Technical Specifications
| Frequency Range | 9 kHz - 3.6 GHz |
| Frequency Resolution | 1 Hz |
| Aging Rate | <1 ppm/year |
| Phase Noise (fc=1GHz) | <-80 dBc/Hz @10 kHz offset |
| Resolution Bandwidth (-3dB) (RBW) | 10 Hz to 500 kHz (1-10 steps by sequence), 1 MHz, 3 MHz |
| Video Bandwidth(-3dB) (VBW) | 10 Hz to 3 MHz |
| Display Average Noise Level (DANL) | Input Attenuation= 0 dB, Sample Detector, Trace Average ≥20, 20℃ to 30℃, Input Impedance=50 Ω, RBW normalizes to 1Hz |
| 1 MHz-10 MHz | -160 dBm (typical) |
| 10 MHz-1 GHz | -160 dBm (typical) |
| 1 GHz - 1,6 GHz | -158 dBm (typical) |
| 1 GHz - 3.6 GHz | -158 dBm (typical) |
| Detectors | Positive-peak, negative-peak, sample, normal, RMS |
| Trace Functions | Clear write, Max Hold, Min Hold, View, Blank, Average |
| Level Units | dBm, dBuW, dBpW, dBmV, dBuV, W, V |
| Tracking Generator | 100 kHz-3.6 GHz (tracking generator), 35 MHz-3.6 GHz (signal generator) |
| Output Power Level Range | -30 dBm-0 dBm |
| Output Power Level Resolution | 1 dB |
| Communication Port | USB HOST, USB DEVICE, LAN, earphone port |
| Display | 8-inch LCD touch screen |
| Battery | 7.4 V, 9100 mAh |
| Power | 100 V ~ 240 V, 50/60 Hz |
| Working Temperature | 0~40 ℃ |
| Storage Temperature | -20 °C to +60 °C |
| Dimensions | 265 mm × 190 mm × 58 mm |
| Net Weight | about 2.5 kg |
Datasheet
Download OWON HSA1036-TG datasheet.
Package Contents
- Spectrum Analyzer OWON HSA1036-TG — 1 pc.
- Power Cord — 1 pc.
- CD Rom — 1 pc.
- Quick Guide — 1 pc.
- USB Cable — 1 pc.
- Adapter — 1 pc.
- Metal Carry Case — 1 pc.
- GPS Antenna — 1 pc.
