Thermal Imaging Camera FLIR i3

id: 828665
Thermal Imaging Camera FLIR i3
Overview
Description
Specifications
Delivery
Payment
Warranty
Discontinued
Contact
sales team
Overview
5.5 kg 110, 220 V Warranty: 12 months
60×60 pix resolution, temperature range -20 to +250°C, temperature sensitivity 0.15°C, 512 MB memory on SD card.
Discontinued
Contact
sales team
Compare
Compare
Discontinued
Contact
sales team
Impossible to estimate the shipping cost
Description

FLIR i3 thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. FLIR i3 thermal imaging camera would be useful in identifying repairing problems, insurance assessments, avoiding electrical faults, heating and cooling systems defects, car service and medicine. Fully automatic affordable thermal imaging camera can be easily connected to PC. The information about the infrared heating appears immediately on large color LCD and does not require any previous experience with such equipment.

FLIR i3 Thermal Imaging Camera User Manuals

Download additional information about FLIR i3 thermal imaging camera

FLIR i3 Thermal Imaging Camera Features

  • High accuracy
  • 0.15°C thermal sensitivity for thermally sensitive targets
  • Light weight, pocket size and fully automated design
  • Color LCD with high resolution
  • Double molded rugged design
  • Easy grip handle construction
  • More than 4 hour continuous operation on a single charge
  • Storage of up to 5000 radiometric .jpeg images

FLIR i3 Thermal Imaging Camera Technical Specifications

Optical data and imaging
Minimum focus distance 0.6 m
Field of view 12.5° × 12.5°
Spatial resolution 3.7 mrad
Thermal sensitivity
Focus fixed
Image frequency 9 Hz
Detector data
Spectral range 7.5 - 13 μm
Detector type focal plane array (FPA), uncooled microbolometer
IR resolution 60 × 60 pixels
Measurement
Object temperature range -20°C to +250°C
Measurement ±2°C or ±2% of reading
Spotmeter center spot
Emissivity table predefined materials
Emissivity correction variable form 0.1 to 1.0
Reflected apparent temperature correction automatic, depends on reflected temperature input
Color palettes black and white, iron and rainbow
Image storage and data communication interfaces
File formats .jpeg, 14-bit measurement data included
Storage medium miniSD card
Interfaces USB mini-B
General information
Battery rechargeable Li-Ion battery, 3.6 V
operation time approx. 5 hours
AC adapter
Display color LCD, 2.8"
Dimentions, mm 223 × 79 × 83
Weight, kg 0.34 (battery included)

FLIR i3 Thermal Imaging Camera Package

  • Thermal imaging camera FLIR i3
  • USB mini-B cable
  • MicroSD card (512 MB)
  • SD card adaptor
  • Hand strap
  • Li-Ion rechargeable battery
  • 100-240 V AC adaptor /charger with EU, UK, US and Australian plugs
  • QuickReport software
  • Getting Started guide
  • Hard case
Read more
Description

FLIR i3 thermal imaging camera is a diagnostical tool for detecting hidden problems using temperature rise. FLIR i3 thermal imaging camera would be useful in identifying repairing problems, insurance assessments, avoiding electrical faults, heating and cooling systems defects, car service and medicine. Fully automatic affordable thermal imaging camera can be easily connected to PC. The information about the infrared heating appears immediately on large color LCD and does not require any previous experience with such equipment.

FLIR i3 Thermal Imaging Camera User Manuals

Download additional information about FLIR i3 thermal imaging camera

FLIR i3 Thermal Imaging Camera Features

  • High accuracy
  • 0.15°C thermal sensitivity for thermally sensitive targets
  • Light weight, pocket size and fully automated design
  • Color LCD with high resolution
  • Double molded rugged design
  • Easy grip handle construction
  • More than 4 hour continuous operation on a single charge
  • Storage of up to 5000 radiometric .jpeg images

FLIR i3 Thermal Imaging Camera Technical Specifications

Optical data and imaging
Minimum focus distance 0.6 m
Field of view 12.5° × 12.5°
Spatial resolution 3.7 mrad
Thermal sensitivity < 0.15°C
Focus fixed
Image frequency 9 Hz
Detector data
Spectral range 7.5 - 13 μm
Detector type focal plane array (FPA), uncooled microbolometer
IR resolution 60 × 60 pixels
Measurement
Object temperature range -20°C to +250°C
Measurement ±2°C or ±2% of reading
Spotmeter center spot
Emissivity table predefined materials
Emissivity correction variable form 0.1 to 1.0
Reflected apparent temperature correction automatic, depends on reflected temperature input
Color palettes black and white, iron and rainbow
Image storage and data communication interfaces
File formats .jpeg, 14-bit measurement data included
Storage medium miniSD card
Interfaces USB mini-B
General information
Battery rechargeable Li-Ion battery, 3.6 V
operation time approx. 5 hours
AC adapter
Display color LCD, 2.8"
Dimentions, mm 223 × 79 × 83
Weight, kg 0.34 (battery included)

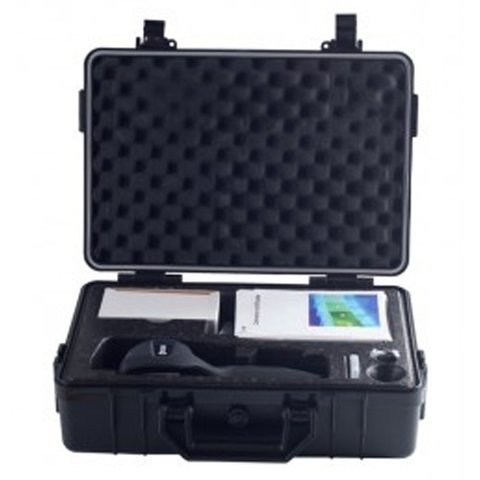

FLIR i3 Thermal Imaging Camera Package

  • Thermal imaging camera FLIR i3
  • USB mini-B cable
  • MicroSD card (512 MB)
  • SD card adaptor
  • Hand strap
  • Li-Ion rechargeable battery
  • 100-240 V AC adaptor /charger with EU, UK, US and Australian plugs
  • QuickReport software
  • Getting Started guide
  • Hard case
Specifications
Max. temperature
  • up to 250 °C
Min. temperature
  • from -20 °C
Refresh rate
  • 9 Hz
