Active Probe SIGLENT SAP2500

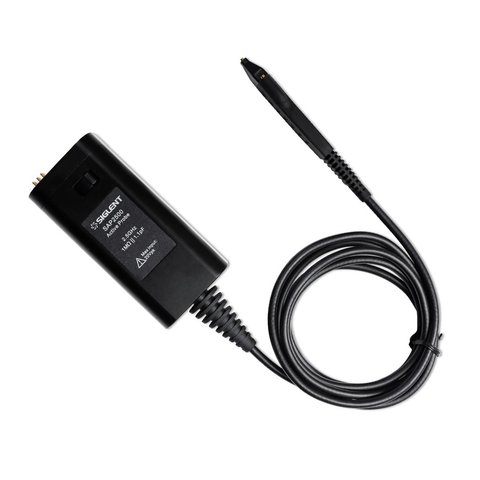

SIGLENT SAP2500 is a compact active probe for oscilloscopes, featuring high input resistance and low input capacitance, which minimizes circuit loading. This model is designed for use with SIGLENT SDS5000X and SDS6000A series oscilloscopes, equipped with the SAPBus interface. When you attach the probe output connector to the oscilloscope’s input connector, the oscilloscope recognizes the probe and provides proper termination. With the SAPBus interface, the SAP2500 probe becomes an integral part of the oscilloscope. The probe can be controlled from the oscilloscope’s front panel. The oscilloscope provides power to the probe, so there is no need for a separate power supply or batteries.

Features

• Bandwidth: >2.5 GHz
• 1 MΩ input resistance
• 10X attenuation
• Low input capacitance
• ±8 V dynamic range with ±12 V offset capability
• SAPBus interface

Technical Specifications

User Manual

  Download SIGLENT SAP2500 User Manual.

Package Contents

• Straight Tip — 5 pcs.
• Pogo Tip — 5 pcs.
• L-In Adapter — 1 pc.
• Z-Ground — 1 pc.
• Y Lead Adapter — 1 pc.
• Right Angle Pin Lead 5 cm — 1 pc.
• Straight Pin Lead 6 cm — 1 pc.
• Right Angle Pin Lead 10 cm — 1 pc.
• Straight Pin Lead 12 cm — 1 pc.
• Channel ID Clips (set of 4 colors) — 1 set

Compatibility

• SIGLENT SDS5032X
• SIGLENT SDS5034X
• SIGLENT SDS5052X
• SIGLENT SDS5054X
• SIGLENT SDS5102X
• SIGLENT SDS5104X
• SIGLENT SDS6054A
• SIGLENT SDS6104A
• SIGLENT SDS6204A
