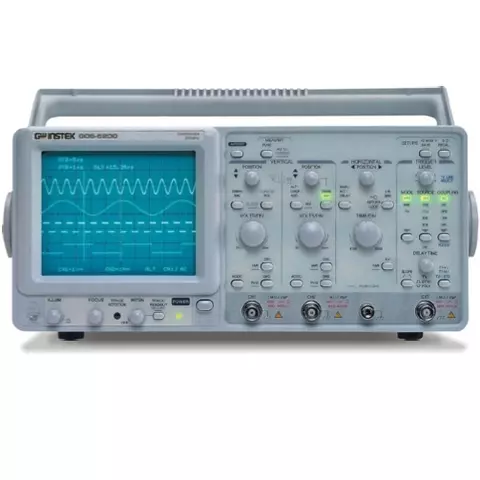

GoodWill Instek GOS-6200 is an analog dual-channel oscilloscope which features 200 MHz bandwidth, delay-sweep timebase and hold-off function, and can be used for measuring sophisticated signals.

Features

  • Bandwidth - 200 MHz
  • Cursor readout with 7 measurements
  • Built-in 6-digit universal counter
  • 10 sets of memory for front panel settings save and recall
  • TV-line selection (NTSC, PAL, SECAM)
  • 6-inch CRT display

Technical Specifications

Technical Specifications
Bandwidth 200 MHz
Vertical System
Sensitivity 2 mV ~ 5 V / div, 11 step in 1-2-5 sequence
Bandwidth (-3dB) DC ~ 200 MHz (5 mV/div: DC ~ 150 MHz) ; (2mV/div: DC ~ 20 MHz)
Rise Time 1.75 ns
Signal Delay Leading edge can be monitored
Max. Input Voltage 400 V (DC+AC peak) at 1 kHz or less
Input Coupling AC, DC, GND
Input Impedance 1 MΩ ±2% // approx. 25 pF
Vertical Mode CH1, CH2, DUAL (CHOP/ALT), ADD, CH2 INV.
Dynamic Range 8 div at 100 MHz; 5 div at 200 MHz
Horizontal System
Horizontal Modes MAIN (A), ALT, DELAY (B)
A (main) Sweep Time 20 ns ~ 0.5 s/div, continuously variable (UNCAL)
B (delay) Sweep Time 20 ns ~ 50 ms/div
Sweep Magnification x10 (maximum sweep time 2 ns/div)
Hold Off Time Variable
Delay Time 1 μs ~ 5 s
Delay Jitter Better than 1:20000
Trigger
Trigger Modes AUTO, NORM, TV
Trigger Source CH1, CH2, LINE, EXT, EXT/10
Trigger Coupling AC, DC, HFR, LFR, NR
Trigger Slope "+" or "-" polarity or TVsync polarity
Trigger Level Range INT: ±4 div or more; EXT: ±0.4 V or more; EXT/10: ±4 V or more
TV Triggering Mode: TV-V, TV-H, TV-LINE
Cursor Readout Function
Cursor Measurement Function ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ
Cursor Resolution 1/100 DIV
Panel Setting Display
  • Vertical: V/div (CH1, CH2), UNCAL, ALT/CHOP/ADD, INV, probe factor, AC/DC/GND
  • Horizontal: s/div (MTB, DTB), UNCAL, x10 magnification, Delay time, Hold-off
  • Trigger: source, coupling, slope, level, TV-V, TV-H
  • Others: X-Y, lock, save/recall MEM 0-9
Auto Measurement Function
Parameter Function FREQ, PERIOD, ±WIDTH, ±DUTY
Display Digits Max. 6-digits, decimal
Frequency Range 50 Hz ~ 200 MHz
Display and General
Display Type 6-inch rectangular type CRT with internal graticule
Power AC 100 V / 120 V / 230 V ±10%, 50/60 Hz
Dimensions (W x H x D) 310 x 150 x 470 mm

User Manual

Download user manual for GoodWill Instek GOS-6200 analog oscilloscope

Package Contents

  • GoodWill Instek GOS-6200 oscilloscope module (1 pc.)
  • Switchable passive probe (1 pc.)
  • Power cable (1 pc.)
  • User manual (1 pc.)
Read more
Description

GoodWill Instek GOS-6200 is an analog dual-channel oscilloscope which features 200 MHz bandwidth, delay-sweep timebase and hold-off function, and can be used for measuring sophisticated signals.

Features

  • Bandwidth - 200 MHz
  • Cursor readout with 7 measurements
  • Built-in 6-digit universal counter
  • 10 sets of memory for front panel settings save and recall
  • TV-line selection (NTSC, PAL, SECAM)
  • 6-inch CRT display

Technical Specifications

Technical Specifications
Bandwidth 200 MHz
Vertical System
Sensitivity 2 mV ~ 5 V / div, 11 step in 1-2-5 sequence
Bandwidth (-3dB) DC ~ 200 MHz (5 mV/div: DC ~ 150 MHz) ; (2mV/div: DC ~ 20 MHz)
Rise Time 1.75 ns
Signal Delay Leading edge can be monitored
Max. Input Voltage 400 V (DC+AC peak) at 1 kHz or less
Input Coupling AC, DC, GND
Input Impedance 1 MΩ ±2% // approx. 25 pF
Vertical Mode CH1, CH2, DUAL (CHOP/ALT), ADD, CH2 INV.
Dynamic Range 8 div at 100 MHz; 5 div at 200 MHz
Horizontal System
Horizontal Modes MAIN (A), ALT, DELAY (B)
A (main) Sweep Time 20 ns ~ 0.5 s/div, continuously variable (UNCAL)
B (delay) Sweep Time 20 ns ~ 50 ms/div
Sweep Magnification x10 (maximum sweep time 2 ns/div)
Hold Off Time Variable
Delay Time 1 μs ~ 5 s
Delay Jitter Better than 1:20000
Trigger
Trigger Modes AUTO, NORM, TV
Trigger Source CH1, CH2, LINE, EXT, EXT/10
Trigger Coupling AC, DC, HFR, LFR, NR
Trigger Slope "+" or "-" polarity or TVsync polarity
Trigger Level Range INT: ±4 div or more; EXT: ±0.4 V or more; EXT/10: ±4 V or more
TV Triggering Mode: TV-V, TV-H, TV-LINE
Cursor Readout Function
Cursor Measurement Function ΔV, ΔV%, ΔVdB, ΔT, 1/ ΔT, ΔT%, Δθ
Cursor Resolution 1/100 DIV
Panel Setting Display
  • Vertical: V/div (CH1, CH2), UNCAL, ALT/CHOP/ADD, INV, probe factor, AC/DC/GND
  • Horizontal: s/div (MTB, DTB), UNCAL, x10 magnification, Delay time, Hold-off
  • Trigger: source, coupling, slope, level, TV-V, TV-H
  • Others: X-Y, lock, save/recall MEM 0-9
Auto Measurement Function
Parameter Function FREQ, PERIOD, ±WIDTH, ±DUTY
Display Digits Max. 6-digits, decimal
Frequency Range 50 Hz ~ 200 MHz
Display and General
Display Type 6-inch rectangular type CRT with internal graticule
Power AC 100 V / 120 V / 230 V ±10%, 50/60 Hz
Dimensions (W x H x D) 310 x 150 x 470 mm

User Manual

Download user manual for GoodWill Instek GOS-6200 analog oscilloscope

Package Contents

  • GoodWill Instek GOS-6200 oscilloscope module (1 pc.)
  • Switchable passive probe (1 pc.)
  • Power cable (1 pc.)
  • User manual (1 pc.)
