BOKAR X-FineRework-SP2-AL-IL; SMT Rework System

id: 10437
20 kg 220 V Warranty: 12 month (s)
A Unique, Modular, Digital PID Control SMT Rework/Repair System with integrated Pre-heater, which offers precise and accurate monitoring of process temperatures at a working point on a PCB.
Discontinued
Find substitute
Discontinued
Find substitute
Add to wishlist
Compare
Compare
Impossible to estimate the shipping cost
Overview
Specifications
Substitution
Delivery
Payment
Warranty
Overview

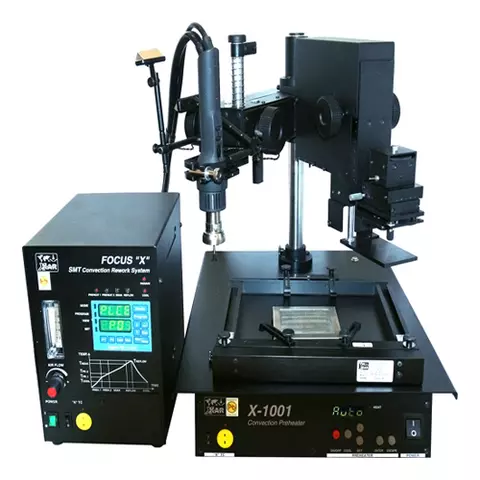

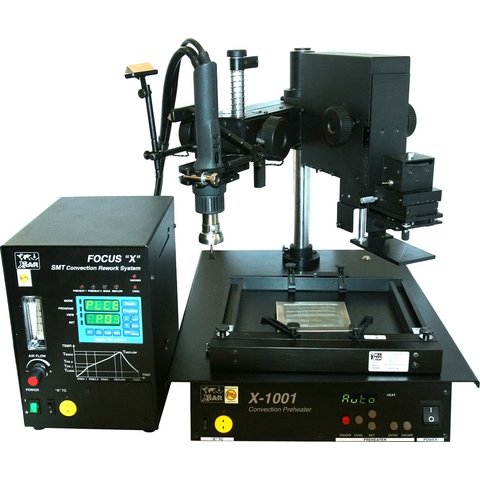

BOKAR X-FineRework-SP2-AL-IL SMT Rework System - is a Unique, Modular, Digital PID Control SMT Rework/Repair System with integrated Pre-heater, which offers precise and accurate monitoring of process temperatures at a working point on a PCB. Also, allows pre-setting of exact temperature of air stream at the end of Hot Air Pencil Nozzle. The accuracy is achieved by a unique feature, user adjustable offset, which compensates for differences in PCBs' being reworked (dual or multi-layer, high and low mass) in case of pre-heater settings, and differences in tips or nozzles in case of soldering iron tip and hot air stream temperature settings.The unique, high performance of the unit is possible due to use of the newest microprocessor technology and thorough programming of all control and monitoring functions combined with PID temperature control of all heaters.

Features:

  • Accurate and precise temperature settings and monitoring at the working point on the board:
    • state of the art microprocessor technology, thorough programming, digital compensation of sensors non-linearity's and heat loss at different temperatures;
    • PID control of all heaters (accuracy and extended heaters' life);
    • user-adjustable offsets for pre-heater and soldering tools;
    • digital display of settings and actual parameters on front panels.
  • Repeatability of the process from board to board (digital storage of profiles and settings).
  • Board holder for regular and irregular shape boards, which accommodates boards up to 12" wide.
  • Enhanced alignment of a part with pads on a board with precise adjustments in X and Y axis and rotation of a top hot air/gas tool, which is mounted in a precise X, Y and Q rotation stage.
  • Programmable time/temperature settings (profiling with cool mode and profile storage).
  • Ease of use. Rework process controlled by Focus "X".
  • Large selection of standard, lightweight nozzles. Custom nozzles are available upon request.
  • Fully antistatic. Supplied with ESD grounding wire and a wrist strap.
  • Built-in Hot Air Pencil/Iron and Vacuum Pick-up Tool.
  • Self containing air and vacuum sources.
  • Solid and strong metal (not plastic) construction guaranteeing long service life.
  • Compatibility with all X-KAR Brand Rework Attachments and Accessories (XIL-2 High Intensity, long life Illumination System, XHT-1P Small Handle Hot Air Tool, XmP-1S Micro Print Head Set, XK-AL Automatic Lift at the end of reflow, etc.).

Package Bokar SP2-AL-IL SMT Rework System contains:

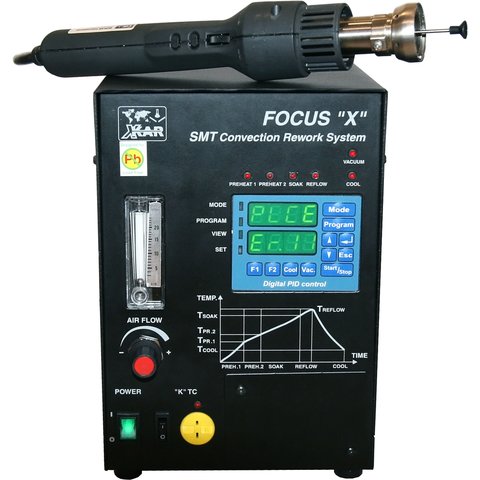

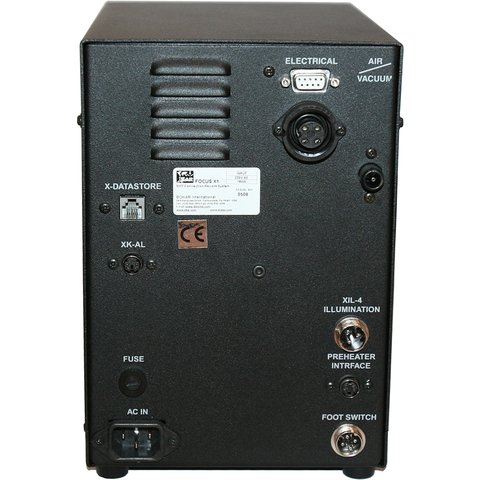

  • FOCUS"X1" - Programmable, Intelligent SMT Rework/Repair Unit with connections at the back. Just Patented in US, Japan and Europe.

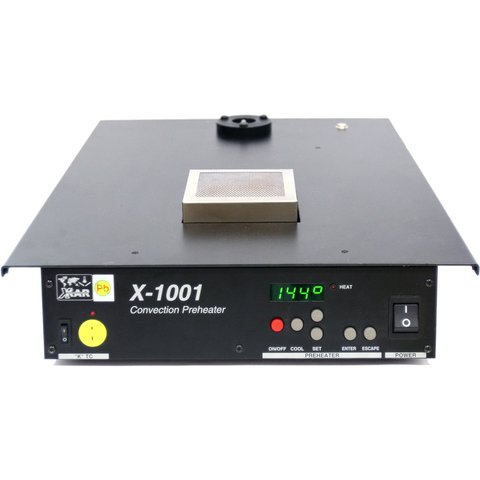

  • X-1001 - Digital, SMT High Power, Large Area Under board Pre heater.
  • XU-1S - Universal, Retractable Board Holder for boards up to 12" wide.
  • XK-2AL - Tool Stand with up/down Z axis movement with Auto Lift.
  • XIL-2 - High Intensity, long life Illumination System.
  • X-MP - Micro Placer Head.

Bokar SP2-AL-IL SMT Rework System additionally includes:

    • Nozzle #107 - Nozzle XNB-27x27 for BGA225 Component
    • XCB-1R - Cord connecting Focus "X" with Pre-heater Based Rework System SMT-SerwiCE or Preheaters X-1000.
Specifications
Bottom heater size
  • 6x6 cm
Pump type
  • compressor
Control type
  • manual
Upper heater type
  • hot air
Upper heater power
  • 450 W
Total power
  • 1200 W
Bottom heater type
  • hot air
