Overview
0.35 kg Warranty: 6 months
ST-series 1.3 Mpix digital eyepiece for microscopes. 1280 x 1024 resolution, 16 f/s frame rate. USB 2.0.
USD 95.00
Contact
sales team
Compare
Compare
USD 95.00
Contact
sales team
Impossible to estimate the shipping cost
Description

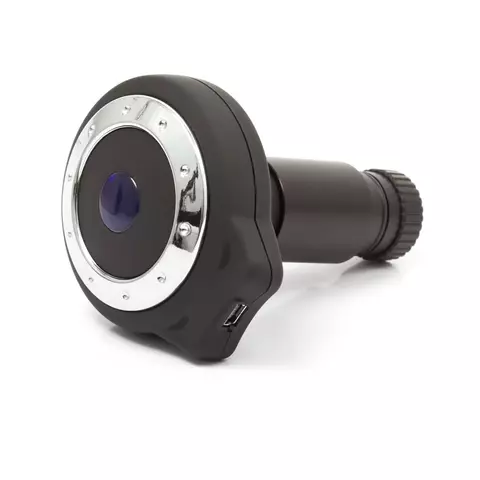

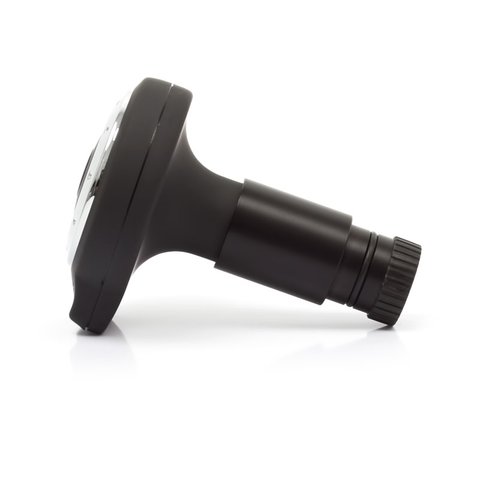

1.3 Mpix HDCE-10C digital camera eyepiece is compatible with any standard biological microscope, metallography microscope or stereomicroscope. HDCE-10C transfers digital image of the object to PC, capturing still photos of 1280 × 1024 pixels and video clips 640 × 480 pixels. The digital camera eyepiece can be connected to projection machine, CD rewriter or laptop.

HDCE-10C Digital Camera Eyepiece Software

Download HDCE-10C digital camera eyepiece software

HDCE-10C Digital Camera Eyepiece Features

  • Advanced settings
    • density
    • contrast
    • saturation
    • sharpness
    • exposing time
  • 400 nm to 1000 nm spectrum response
  • Electronic rolling shutter
  • 1000 MB free hard drive space for program installation

HDCE-10C Digital Camera Eyepiece Technical Specifications

Model HDCE-10C HDCE-30C HDCE-50C
Sensor parameters 1.2′, 1.3 Mpx CMOS 1.2′, 3.0 Mpx CMOS 1/2.5′, 5.0 Mpx CMOS
Maximum resolution 1280 × 1024 2048 × 1536 2560 × 1944
USB device USB 2.0
Frame rate 16 f/s at 1280 ×1024 resolution 7.5 f/s 3.7 f/s
Preview model 1280 ×1024, 640 × 480, 320 × 240 2048 ×1536, 1280 × 1024, 1024 × 768 -
Pixels size 5.2 µm × 5.2 µm 3.18 µm × 3.18 µm 2.2 µm × 2.2 µm
Sensitivity 1.8 V/lux·sec at 550 nm 0.9 V/lux·sec TBD
S/N ratio - 40 dB
Dynamic range - 60 dB
White balance auto
Operating system Windows (XP2, Vista)
Basic PC requirements Pentium IV 2.0 GHz or more
512 MB RAM or more
USB 2.0 port
17′ or more monitor
Pentium IV 2.0 GHz or more
1024 MB RAM or more
USB 2.0 port
17′ or more monitor

HDCE-10C Digital Camera Eyepiece Package

  • Digital camera eyepiece HDCE-10C
  • Adaptor ring
  • USB 2.0 cable
  • CD with drivers and software
Read more
Description

1.3 Mpix HDCE-10C digital camera eyepiece is compatible with any standard biological microscope, metallography microscope or stereomicroscope. HDCE-10C transfers digital image of the object to PC, capturing still photos of 1280 × 1024 pixels and video clips 640 × 480 pixels. The digital camera eyepiece can be connected to projection machine, CD rewriter or laptop.

HDCE-10C Digital Camera Eyepiece Software

Download HDCE-10C digital camera eyepiece software

HDCE-10C Digital Camera Eyepiece Features

  • Advanced settings
    • density
    • contrast
    • saturation
    • sharpness
    • exposing time
  • 400 nm to 1000 nm spectrum response
  • Electronic rolling shutter
  • 1000 MB free hard drive space for program installation

HDCE-10C Digital Camera Eyepiece Technical Specifications

Model HDCE-10C HDCE-30C HDCE-50C
Sensor parameters 1.2′, 1.3 Mpx CMOS 1.2′, 3.0 Mpx CMOS 1/2.5′, 5.0 Mpx CMOS
Maximum resolution 1280 × 1024 2048 × 1536 2560 × 1944
USB device USB 2.0
Frame rate 16 f/s at 1280 ×1024 resolution 7.5 f/s 3.7 f/s
Preview model 1280 ×1024, 640 × 480, 320 × 240 2048 ×1536, 1280 × 1024, 1024 × 768 -
Pixels size 5.2 µm × 5.2 µm 3.18 µm × 3.18 µm 2.2 µm × 2.2 µm
Sensitivity 1.8 V/lux·sec at 550 nm 0.9 V/lux·sec TBD
S/N ratio - 40 dB
Dynamic range - 60 dB
White balance auto
Operating system Windows (XP2, Vista)
Basic PC requirements Pentium IV 2.0 GHz or more
512 MB RAM or more
USB 2.0 port
17′ or more monitor
Pentium IV 2.0 GHz or more
1024 MB RAM or more
USB 2.0 port
17′ or more monitor

HDCE-10C Digital Camera Eyepiece Package

  • Digital camera eyepiece HDCE-10C
  • Adaptor ring
  • USB 2.0 cable
  • CD with drivers and software
Specifications
Die size
  • 1,3 MP
